F11
F11

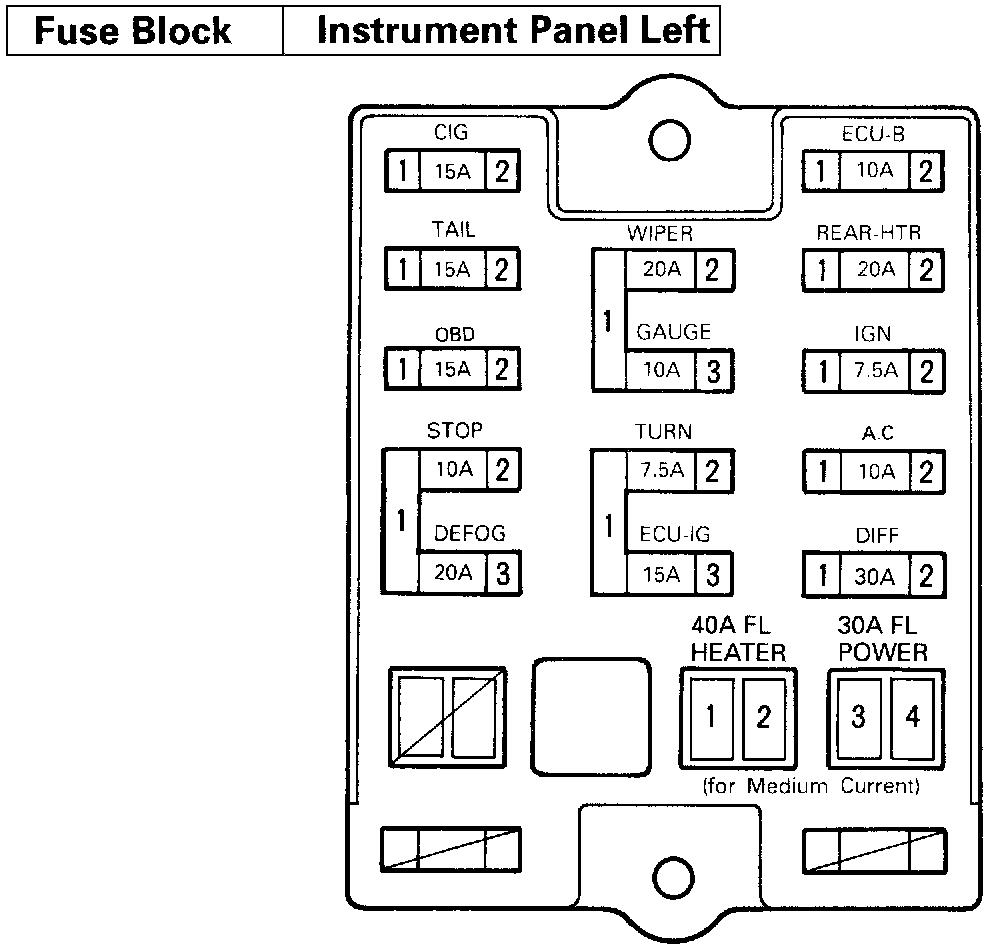

Locations-Fuse Block Instrument Panel Left (Fig 20):

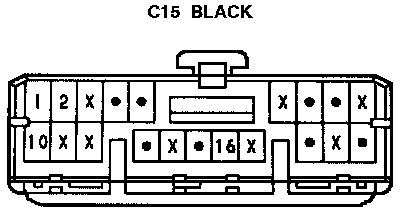

C15 Black:
D11 Gray:
J 7 Blue:
R19:
R20:
W 1 Dark Gray:
W 2 Black:
