Coolant Temperature Sensor/Switch (For Computer): Service and Repair

1. DRAIN ENGINE COOLANT.

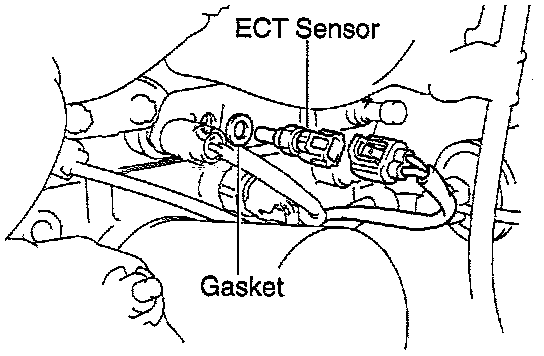

2. REMOVE ENGINE COOLANT TEMPERATURE (ECT) SENSOR.






- Disconnect the ECT sensor connector.
- Using a 19 mm deep socket wrench, remove the ECT sensor and gasket.
3. REINSTALL ECT SENSOR.
- Using a 19 mm deep socket wrench, install the ECT sensor and gasket.

Torque: 20 Nm (14 ft lb)

- Connect the ECT sensor connector.
4. REFILL ENGINE COOLANT.
