Crankshaft Position Sensor: Service and Repair

INSTALLATION HINT: Installation is in the reverse order of removal.

1. REMOVE ENGINE UNDER COVER.

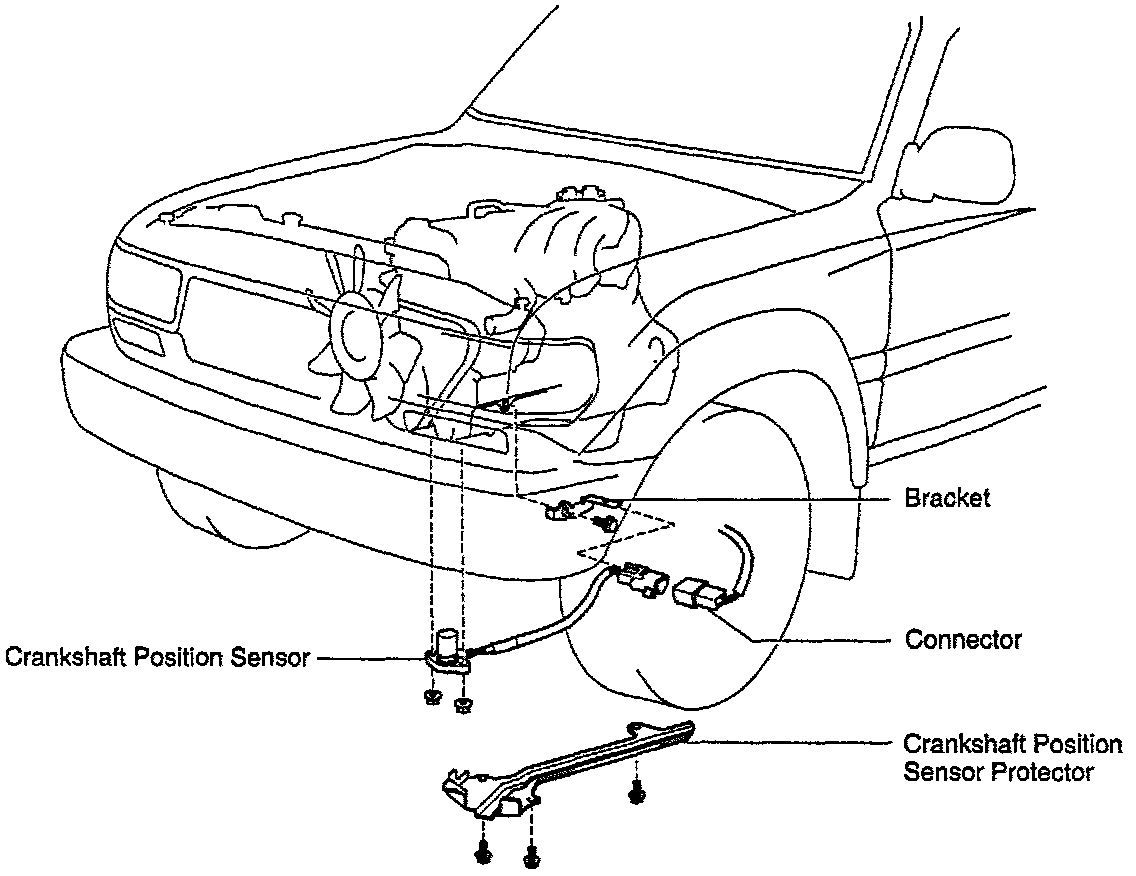

2. REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR.
- Remove the 3 bolts and crankshaft position sensor protector.

Torque: 20 Nm (14 ft lb)

3. DISCONNECT CRANKSHAFT POSITION SENSOR BRACKET AND CONNECTOR.
4. REMOVE CRANKSHAFT POSITION SENSOR.





- Remove the bolt, 2 nuts and crankshaft position sensor.

Torque:
Bolt A: 20 Nm (14 ft lb)
Nut B: 9 Nm (78 in lb)
