Vehicle Speed Sensor: Service and Repair

VEHICLE SPEED SENSOR NO.1 REPLACEMENT (w/Speedometer Driven Gear)

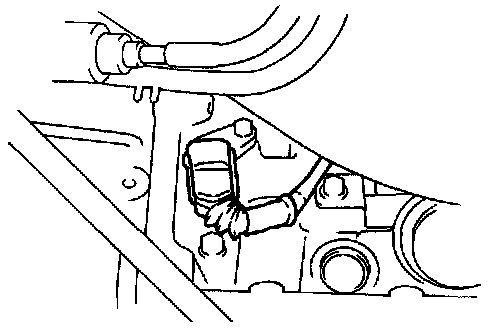

1. Disconnect NO.1 vehicle speed sensor connector.

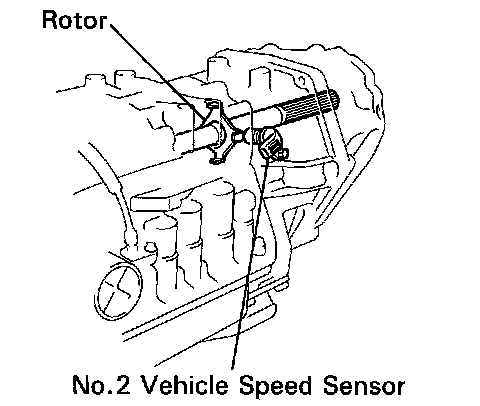

Vehicle Speed Sensor NO.2:

2. Remove NO.1 vehicle speed sensor.

(a) Remove the bolt form no.1 vehicle speed sensor.

(b) Remove the 0-ring from the no.1 vehicle speed sensor.

3. Install vehicle speed sensor assembly.

(a) Coat a new 0-ring with ATF and install it to the vehicle speed sensor.

1. Install the vehicle speed sensor assembly and torque the bolts.

Torque: 5.4 N.m (55 kgf.cm, 48 in. lbf)

2. CONNECT NO.1 VEHICLE SPEED SENSOR CONNECTOR.






1. Disconnect NO.2 vehicle speed sensor connector.

VEHICLE SPEED SENSOR NO.2 REPLACEMENT

Vehicle Speed Sensor NO.2:

2. Remove NO.2 vehicle speed sensor.

(a) Remove the bolt form no.2 vehicle speed sensor.

(b) Remove the 0-ring from the no.2 vehicle speed sensor.

3. Install vehicle speed sensor assembly.

(a) Coat a new 0-ring with ATF and install it to the vehicle speed sensor.

1. Install the vehicle speed sensor assembly and torque the bolts.

Torque: 5.4 N.m (55 kgf.cm, 48 in. lbf)

2. CONNECT NO.2 VEHICLE SPEED SENSOR CONNECTOR.
