Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1995
>>
MR2 L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>

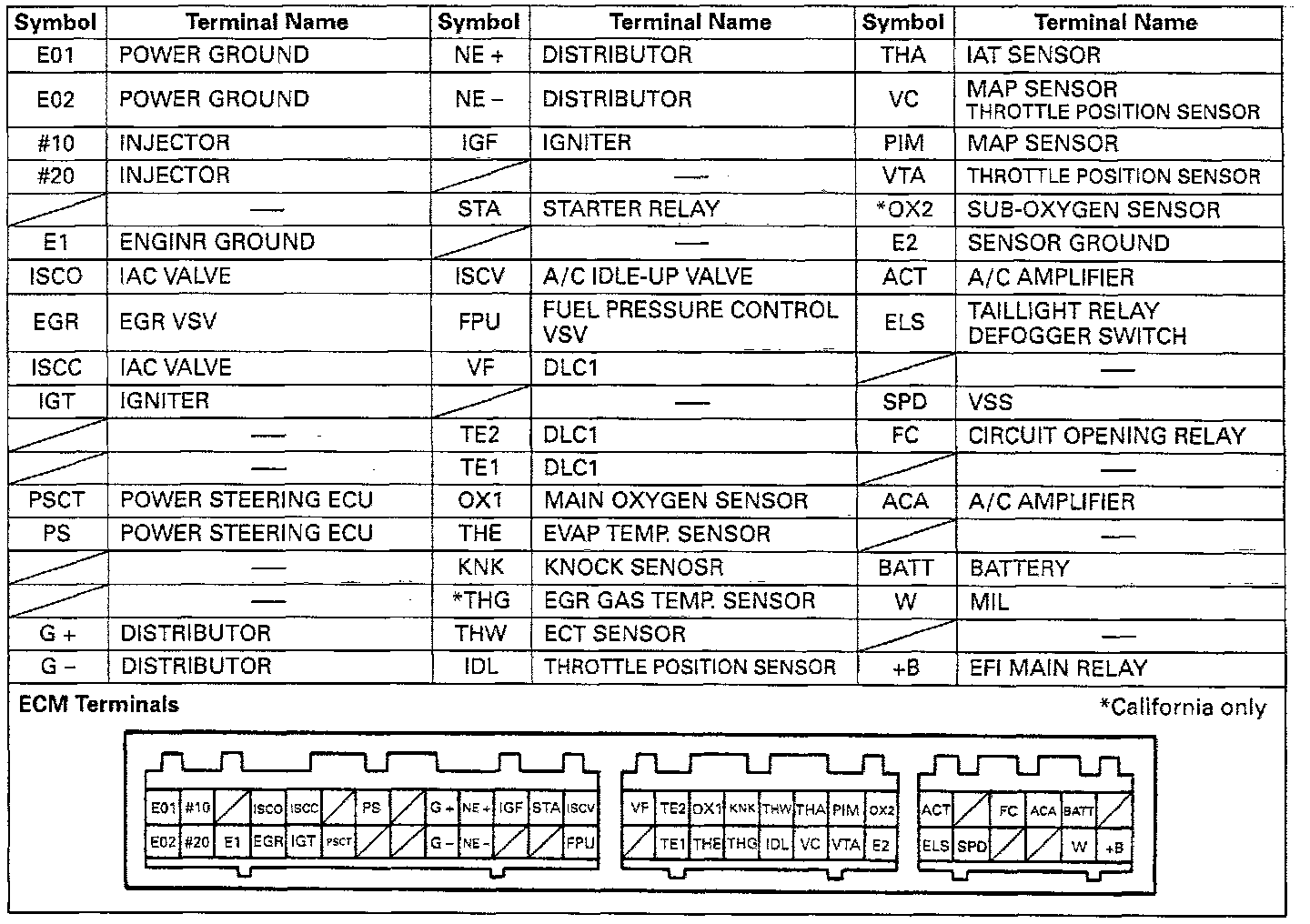

ECM Terminal Identification
>>
With Manual Transmission
With Manual Transmission
