Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Motor
>>
Connector Joining Wire Harness and Wire Harness
>>
From August 95
>>

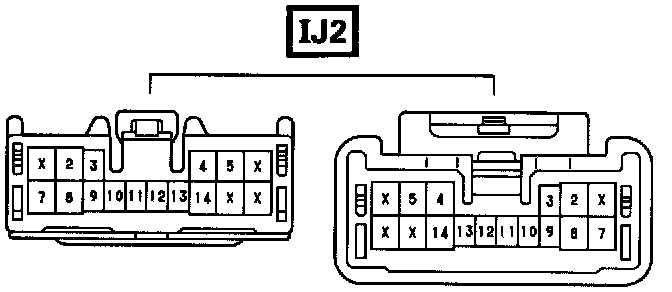

IJ2
IJ2
IJ2:
Engine wire and cowl wire (right kick panel)
