Clutch Slave Cylinder: Service and Repair

REMOVAL

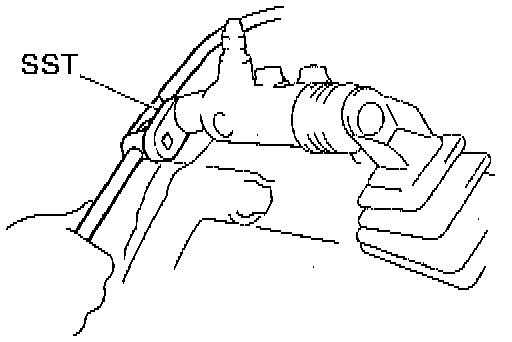

1. Disconnect clutch line Using Special Service Tool (SST) 09023 - 00100, disconnect the line. Use a container to catch the fluid.
Torque: 15 N.m (11 ft. lbs.)

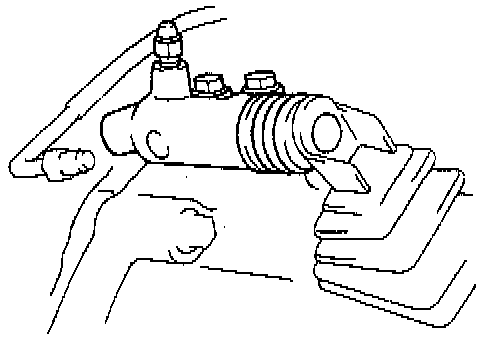

2. Remove 2 bolts and pull out release cylinder.
Torque: 13 N.m (9 ft. lbs.)

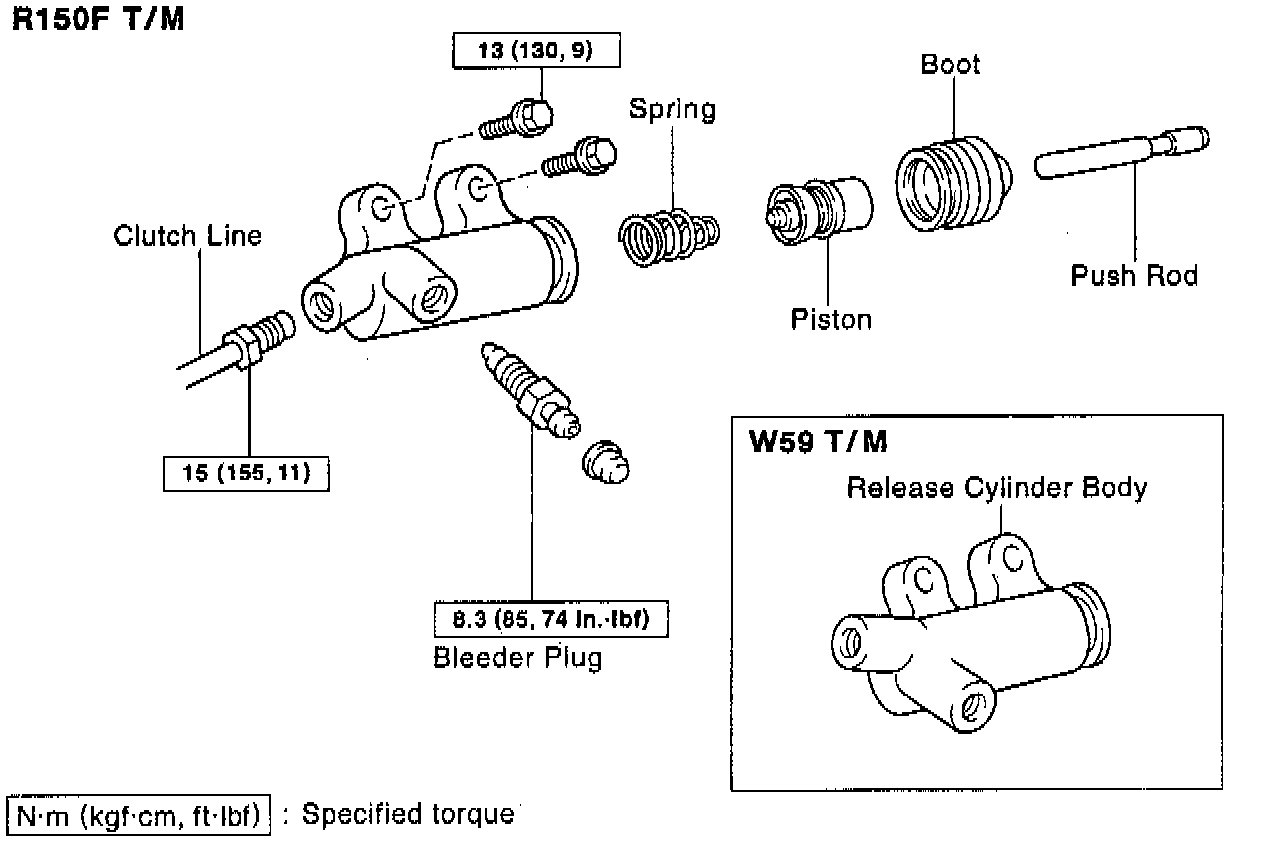

DISASSEMBLY
1. Pull out boot with push rod.
2. Remove piston.
Using compressed air, remove the piston with the spring from the cylinder.





REASSEMBLY

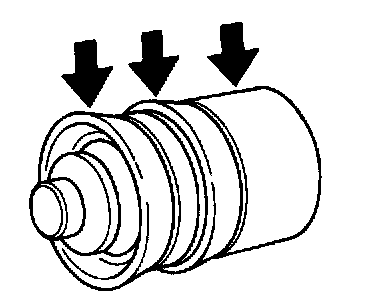

1. Coat piston with lithium soap base glycol grease, as shown.
2. Install piston with spring into cylinder.
3. Install boot with push rod to cylinder.

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, bleed clutch system.
