Control Assembly: Locations

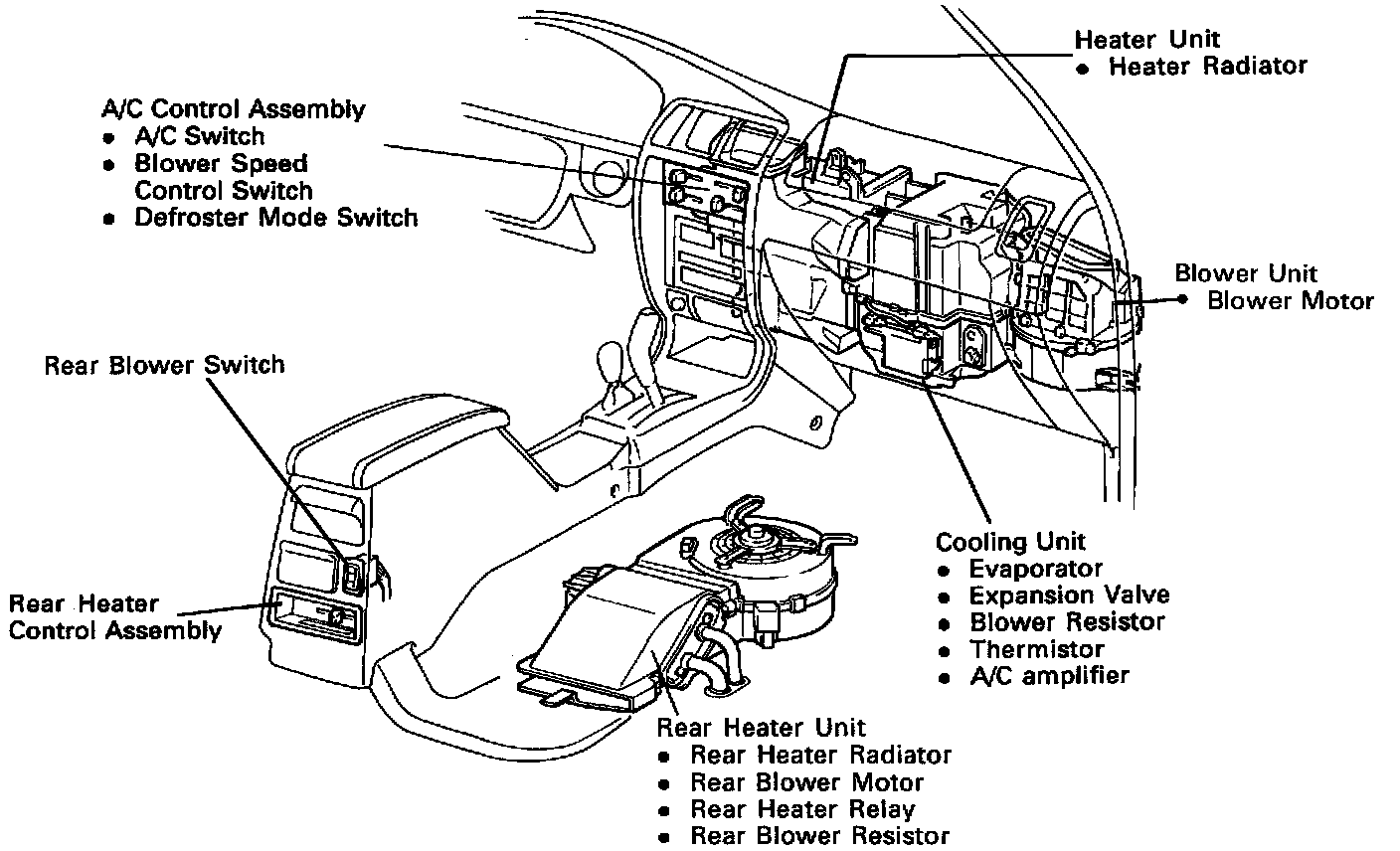

Air Conditioning System Locations (1 Of 2):

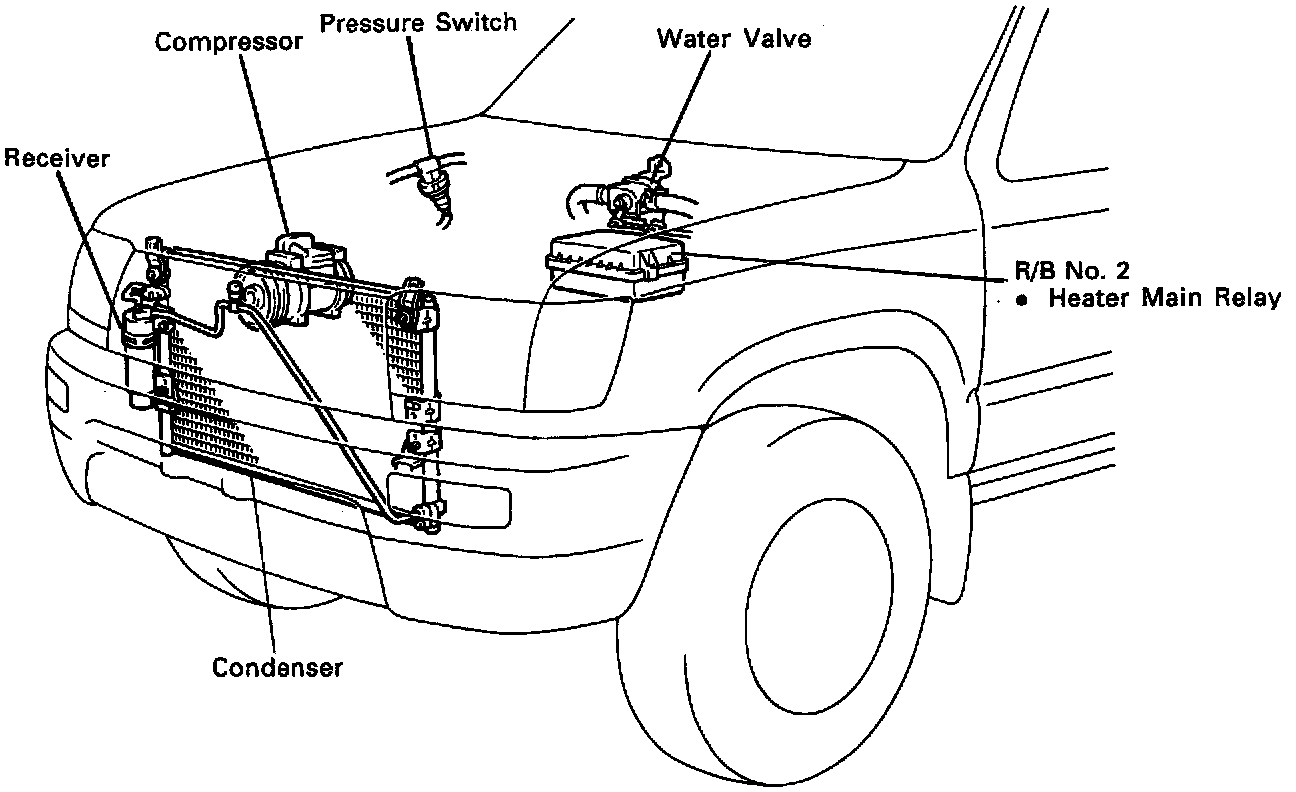

Air Conditioning System Locations (2 Of 2):
