Rear Heater Control Assembly

REMOVAL
1. REMOVE CENTER CONSOLE BOX







2. REMOVE HEATER CONTROL ASSEMBLY

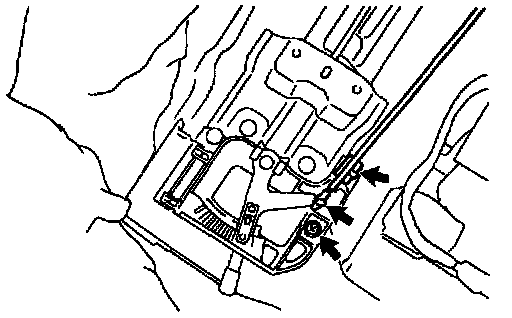

a. Disconnect the control cable.


INSTALLATION HINT: For installing the control cable refer to "ADJUSTMENT". Rear Heater Control Assembly


b. Remove the screw and heater control assembly.

INSTALLATION
Installation is in the reverse order of removal.
