How to Read Adjustment Chart

How the to read adjustment chart. To read the adjustment chart, do the following.

a. Find the wheel alignment standard value applicable for the tire size.
b. Mark the selected standard value on the adjustment chart.

Example (Tire Size: 225/75R15):
Camber -0°13' (-0.22°)
Caster 3°22' (3.37°).

c. Mark on the adjustment chart the alignment values measured at the vehicle height.

Example:
Camber -0°06' (-0.1°)
Caster 2°45' (2.75°).

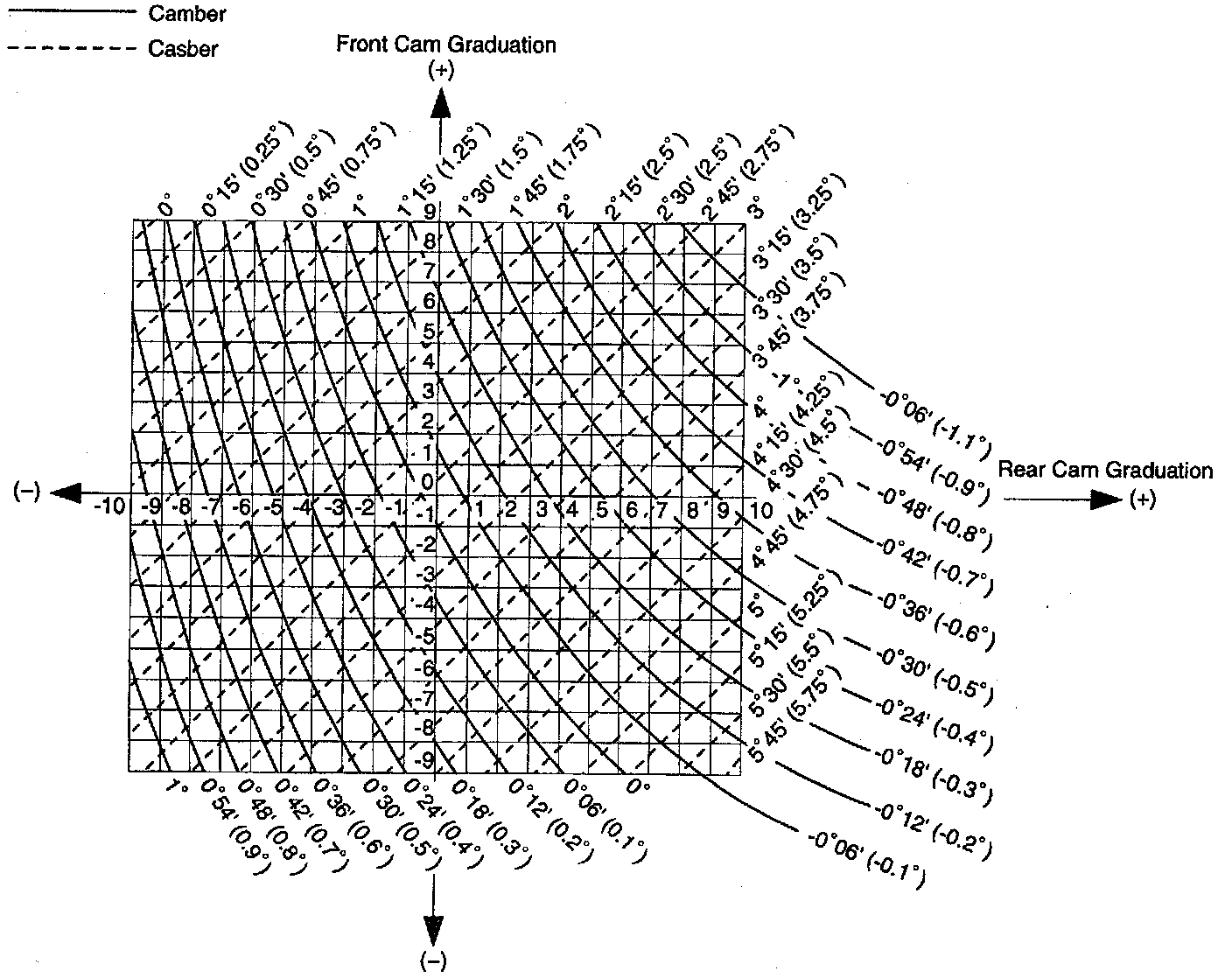

Adjustment Chart:

d. As shown in the illustration, read the distance from the standard value to the measured value, and adjust the front and/or rear adjusting cams accordingly.

Example:
Front cam -(Shorter) 1.6
Rear cam +(Longer) 2.5.
