Removal

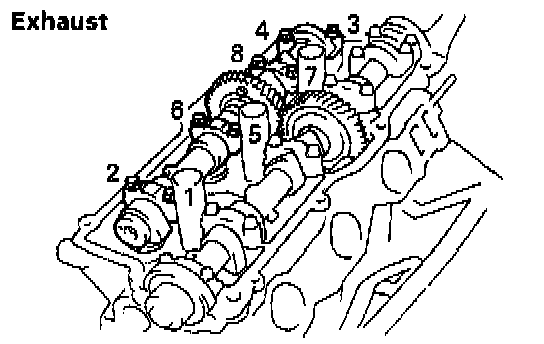

RHT Exhaust




Uniformly loosen and remove the 8 bearing cap bolts, in several passes, in the sequence shown.
Remove the 4 bearing caps and exhaust camshaft.

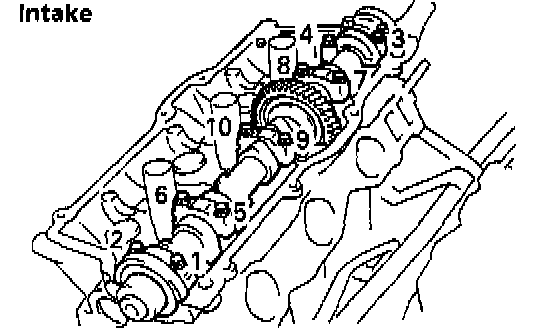

RHT Intake





Uniformly loosen and remove the 10 bearing cap bolts, in several passes, in the sequence shown.
Remove the 5 bearing caps, oil seal and intake camshaft.

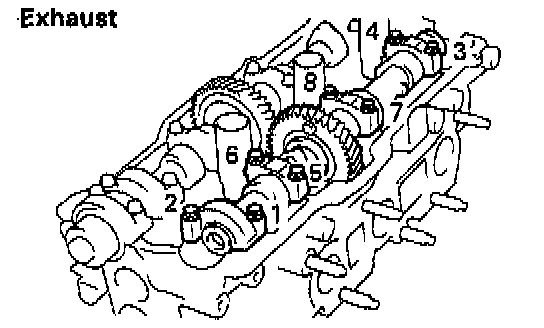

LH Exhaust





Uniformly loosen and remove the 8 bearing cap bolts, in several passes, in the sequence shown.
Remove the 4 bearing caps and exhaust camshaft.

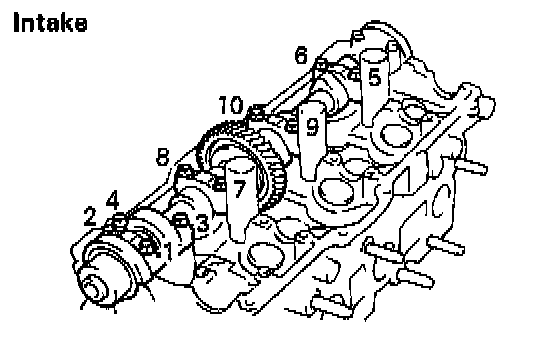

LH Intake





Uniformly loosen and remove the 10 bearing cap bolts, in several passes, in the sequence shown. Remove the 5 bearing caps, oil seal and intake camshaft.
