Catalytic Converter: Service and Repair

1. REMOVE CONVERTER
- Jack up the vehicle.
- Check that the converter is cool.

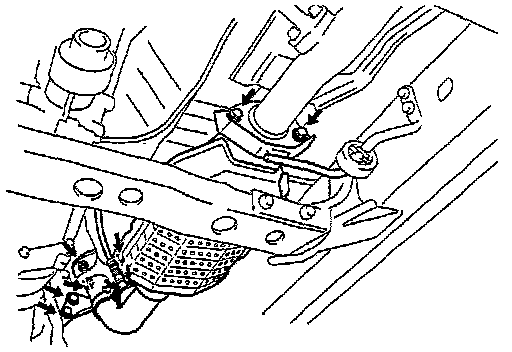

- Remove the bolts and nuts at the front pipe
- Remove the converter and gasket.
2. REINSTALL CONVERTER
- Place new gaskets on the front pipe
- Torque the bolts and nuts.

Torque: 48 N.m (490 kgf.cm, 35 ft.lbf)
