EGR Control Solenoid: Testing and Inspection

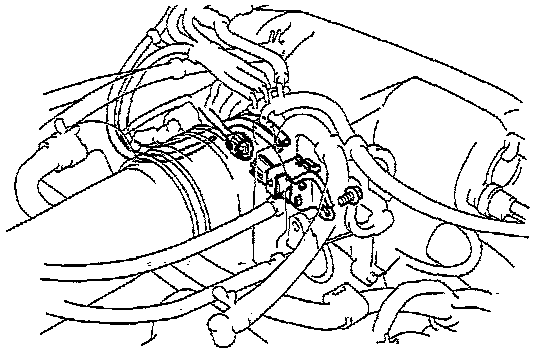

1. REMOVE VSV
- Remove the bolt.
- Disconnect the connector and 2 vacuum hoses from the VSV.
2. INSPECT VSV

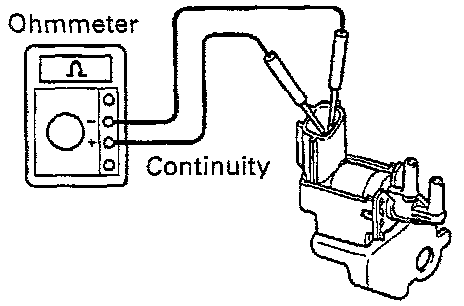

- Using an ohmmeter, check that there is continuity between terminals.

Resistance: At 20°C (68°F): 33 - 39 Ohms.

- If there is no continuity, replace the VSV.

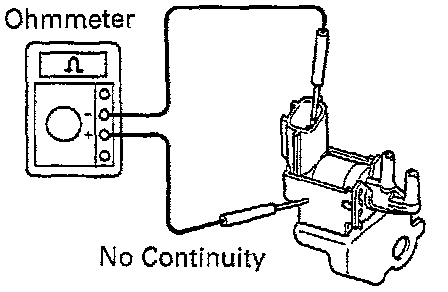

- Using an ohmmeter, check that there is no continuity between each terminal and the body.
- If there is continuity, replace the VSV.

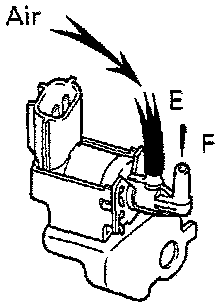

- Check that air does not flow from ports E to F.

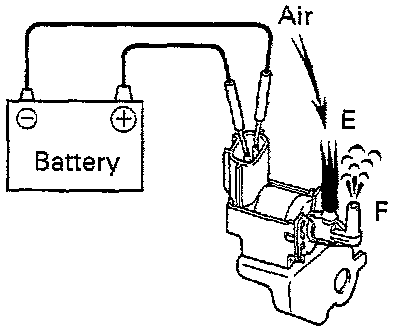

- Apply battery positive voltage across the terminals.
- Check that air flows from ports E to F.
- If operation is not as specified, replace the VSV.
3. REINSTALL VSV
