Avalon V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Column Shift
>>
IF2
IF2

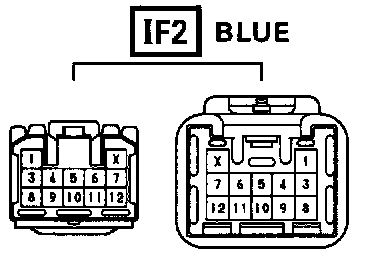

IF2 Blue:
Front Door LH Wire And Instrument Panel Wire (Left Kick Panel)
