Power Distribution Relay: Locations

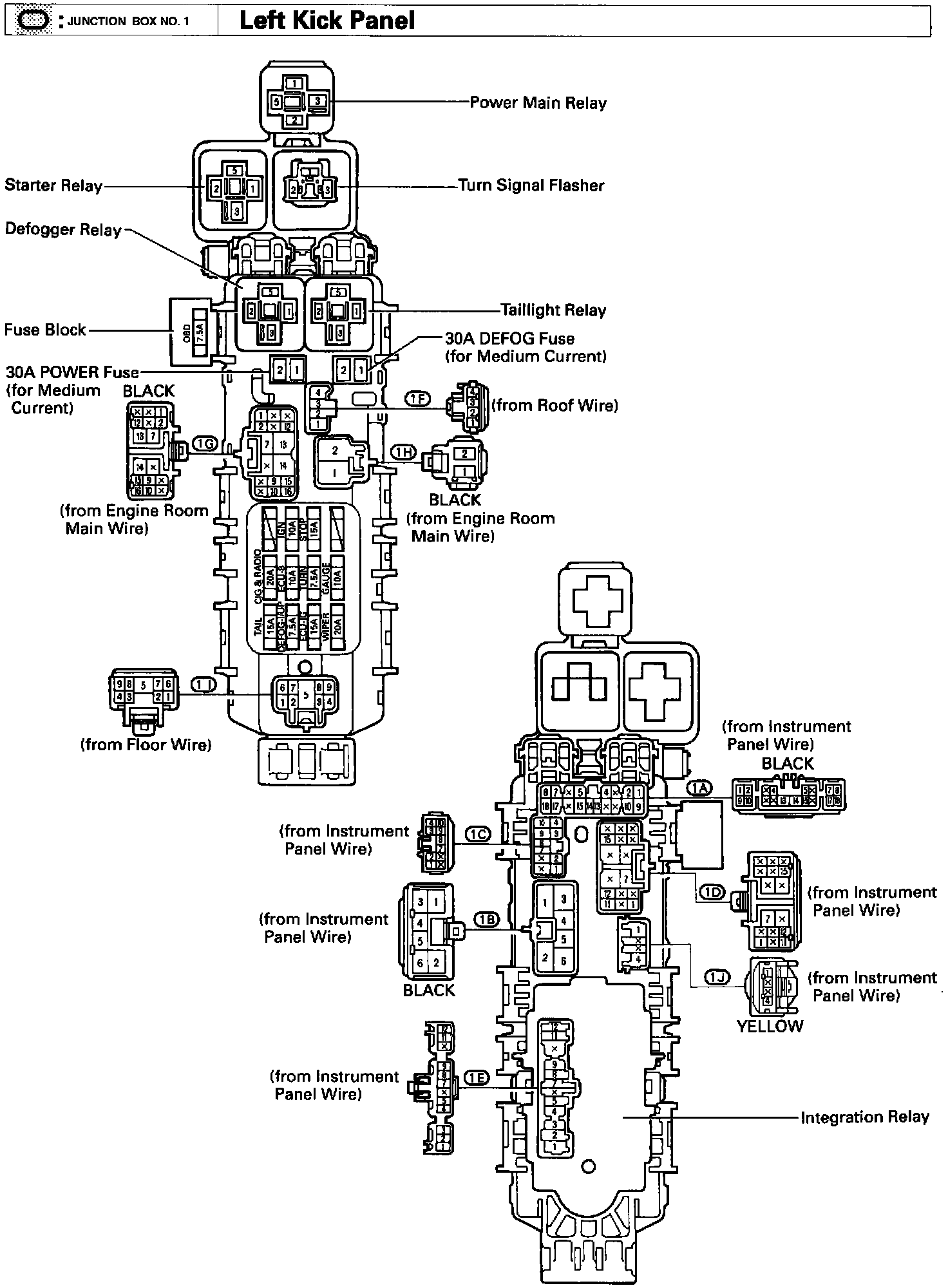

J/B No.1 Left Kick Panel (Fig 20):

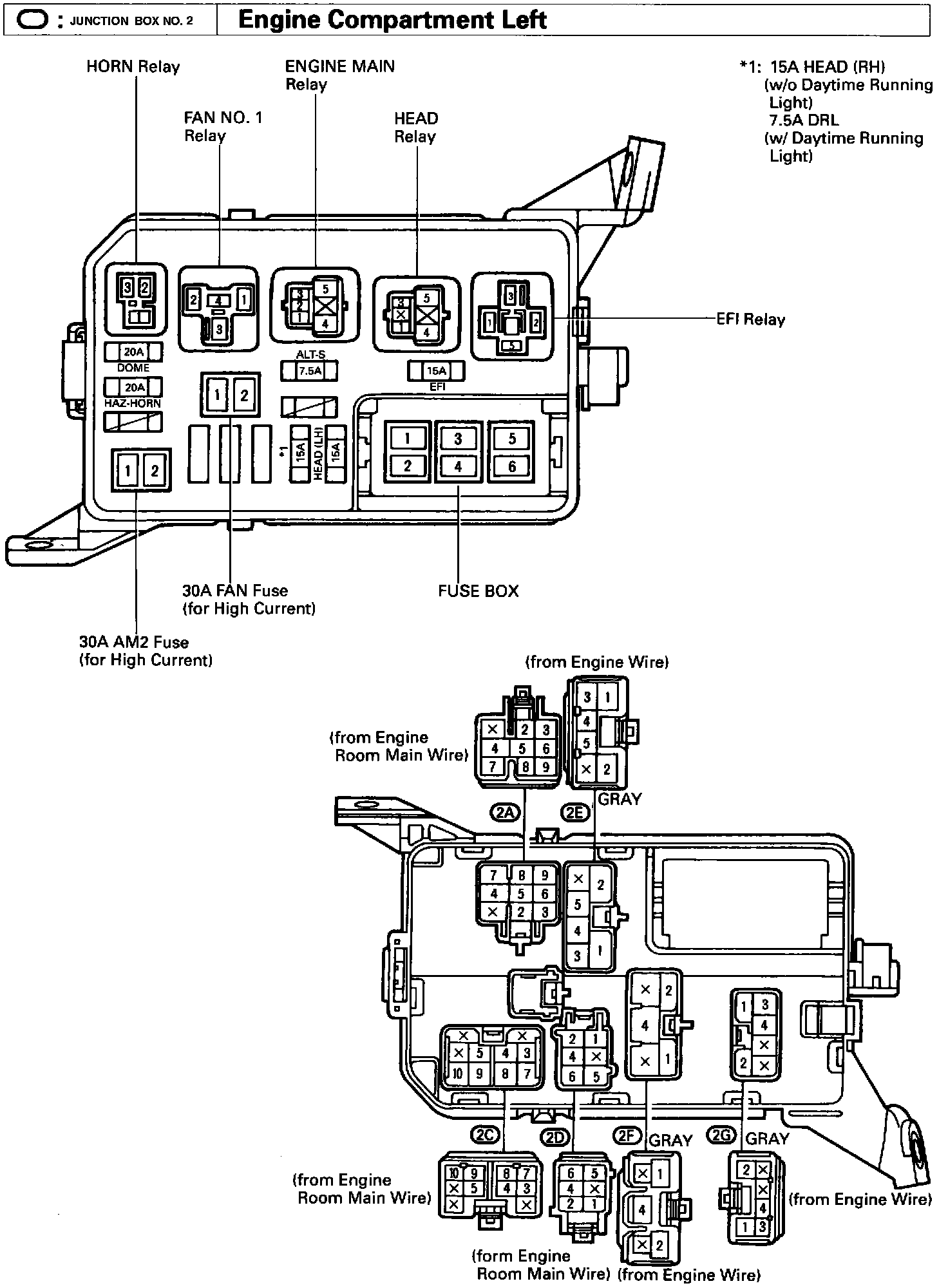

J/B No.2 Engine Compartment Left (Fig 22):

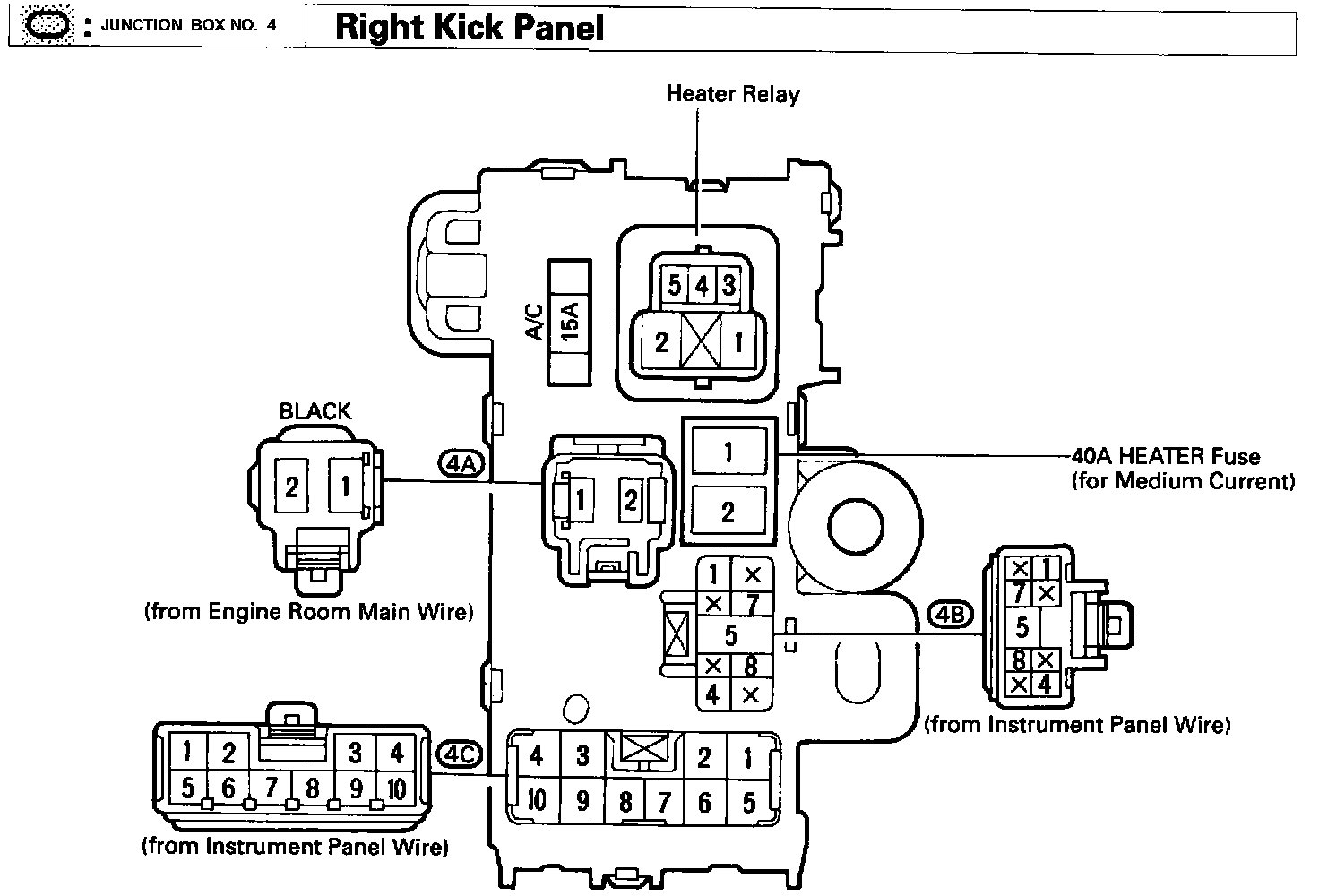

J/B No.4 Right Kick Panel (Fig 26):

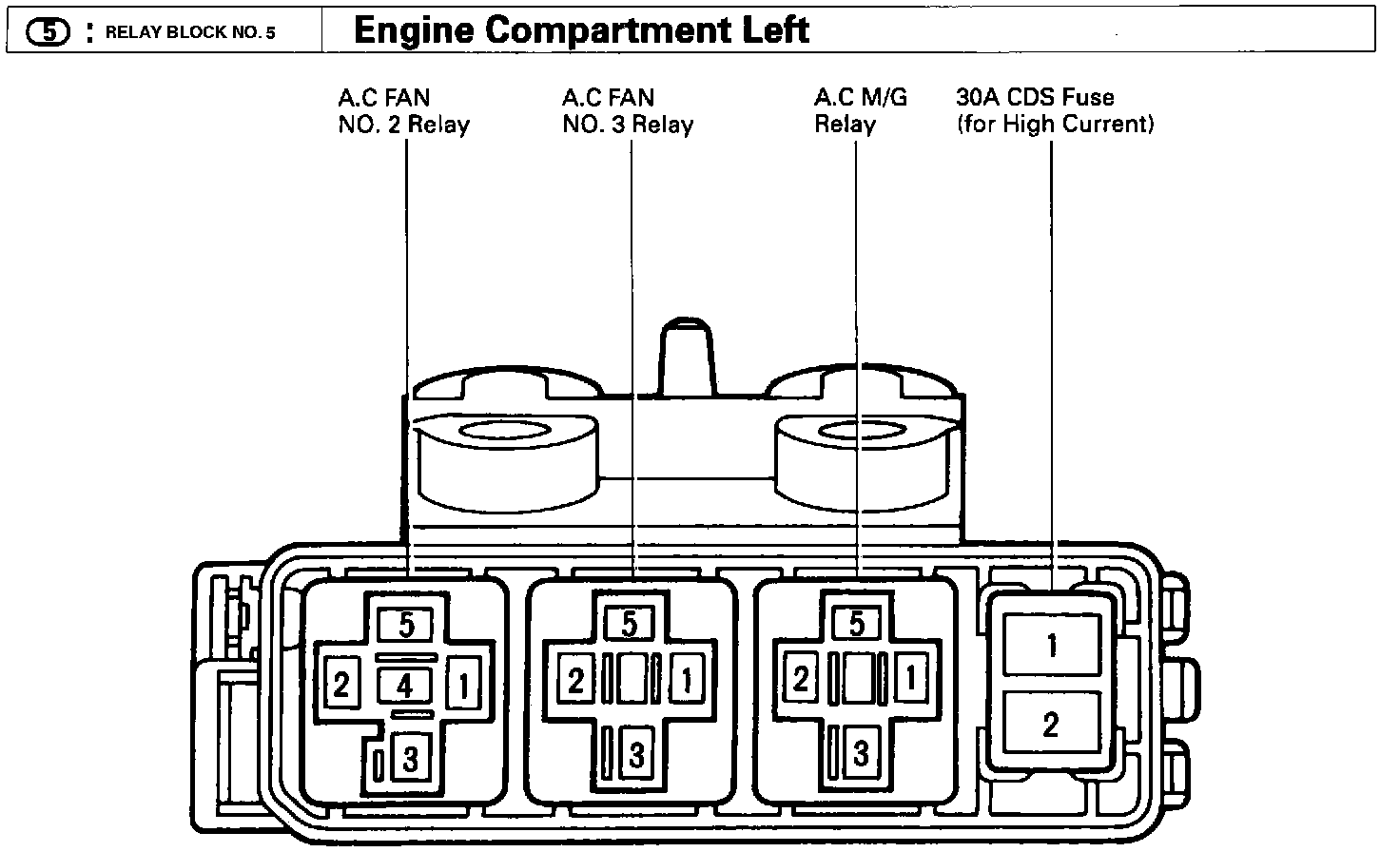

R/B No.5 Engine Compartment Left (Fig 27):

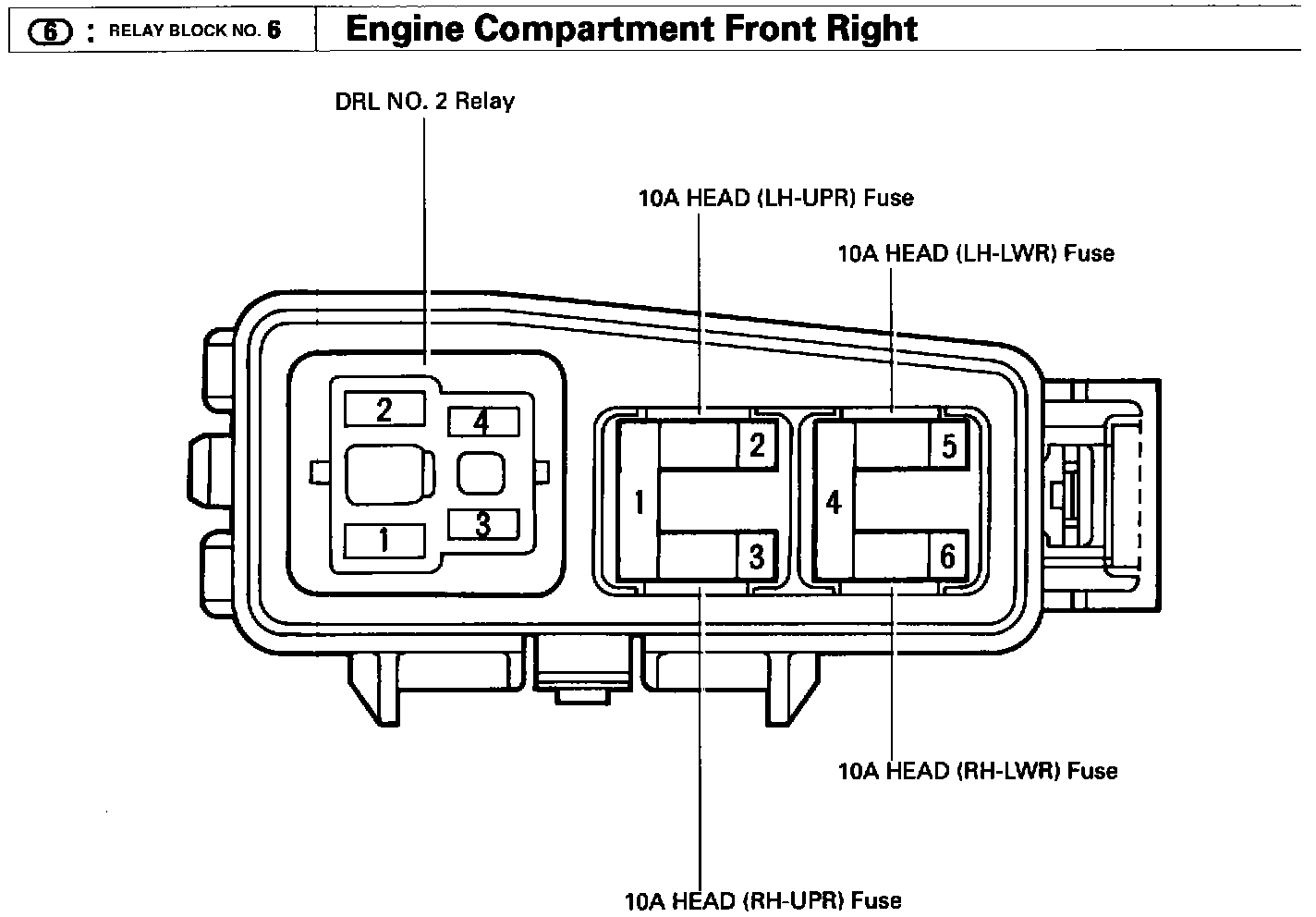

R/B No.6 Engine Compartment Front Right (Canada) (Fig 27):

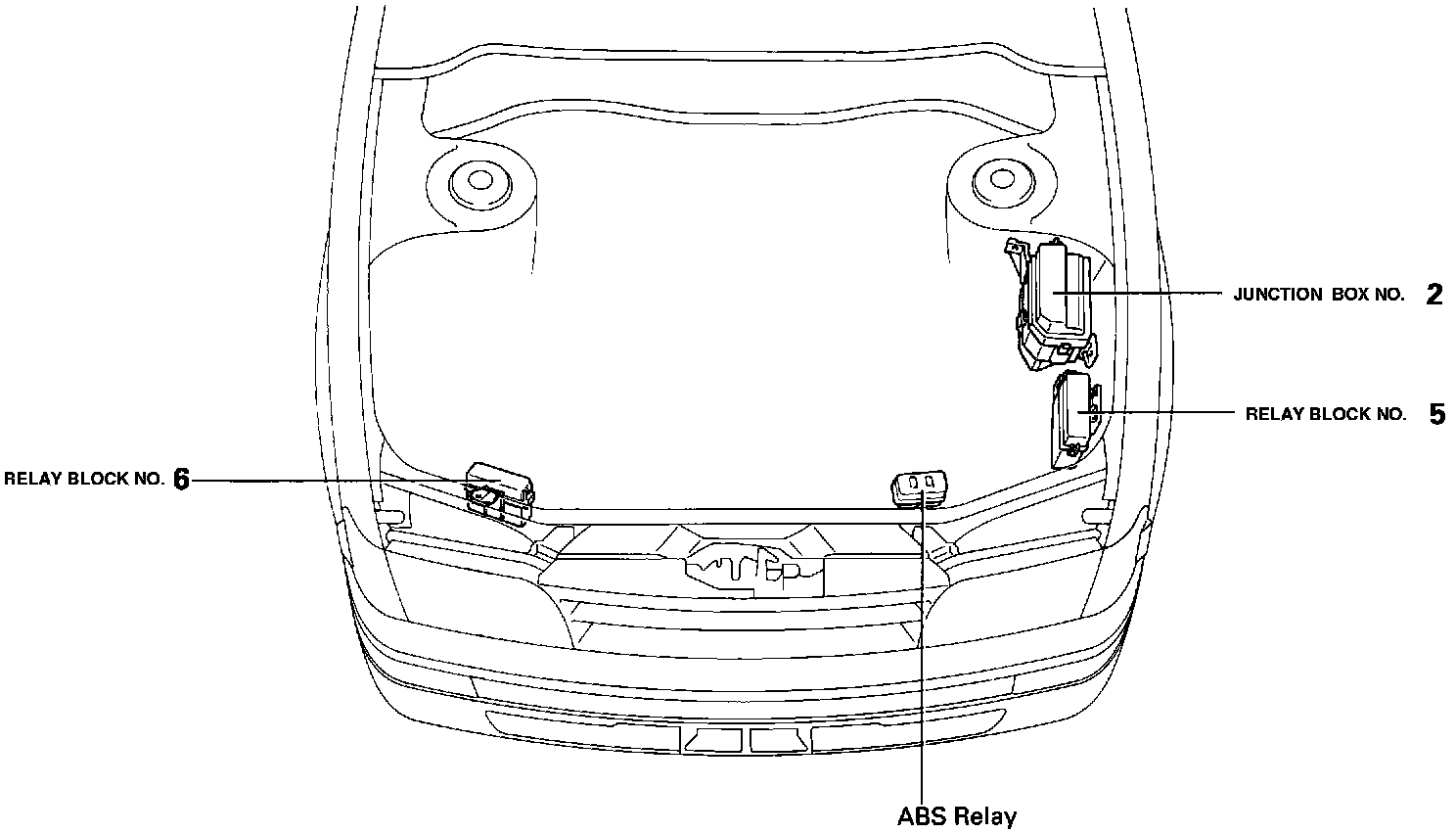

Engine Compartment (Fig 18):

Instrument Panel (Fig 18):

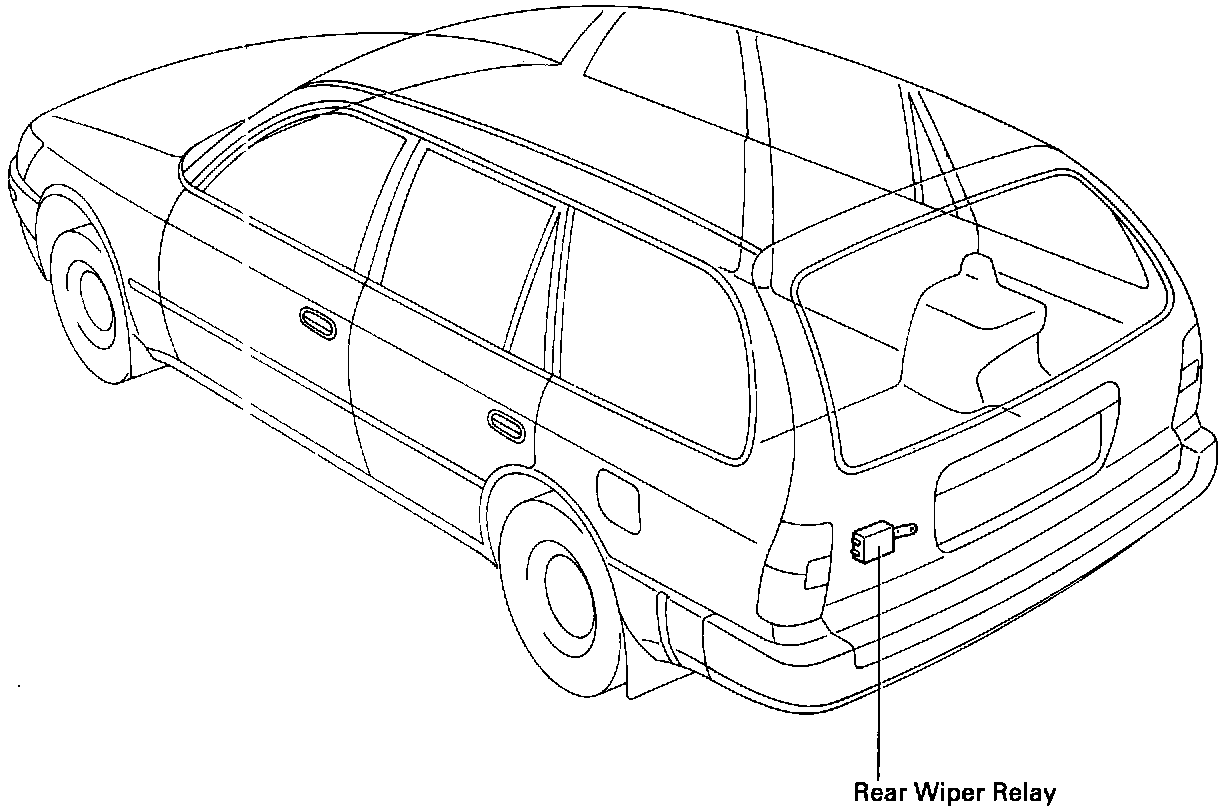

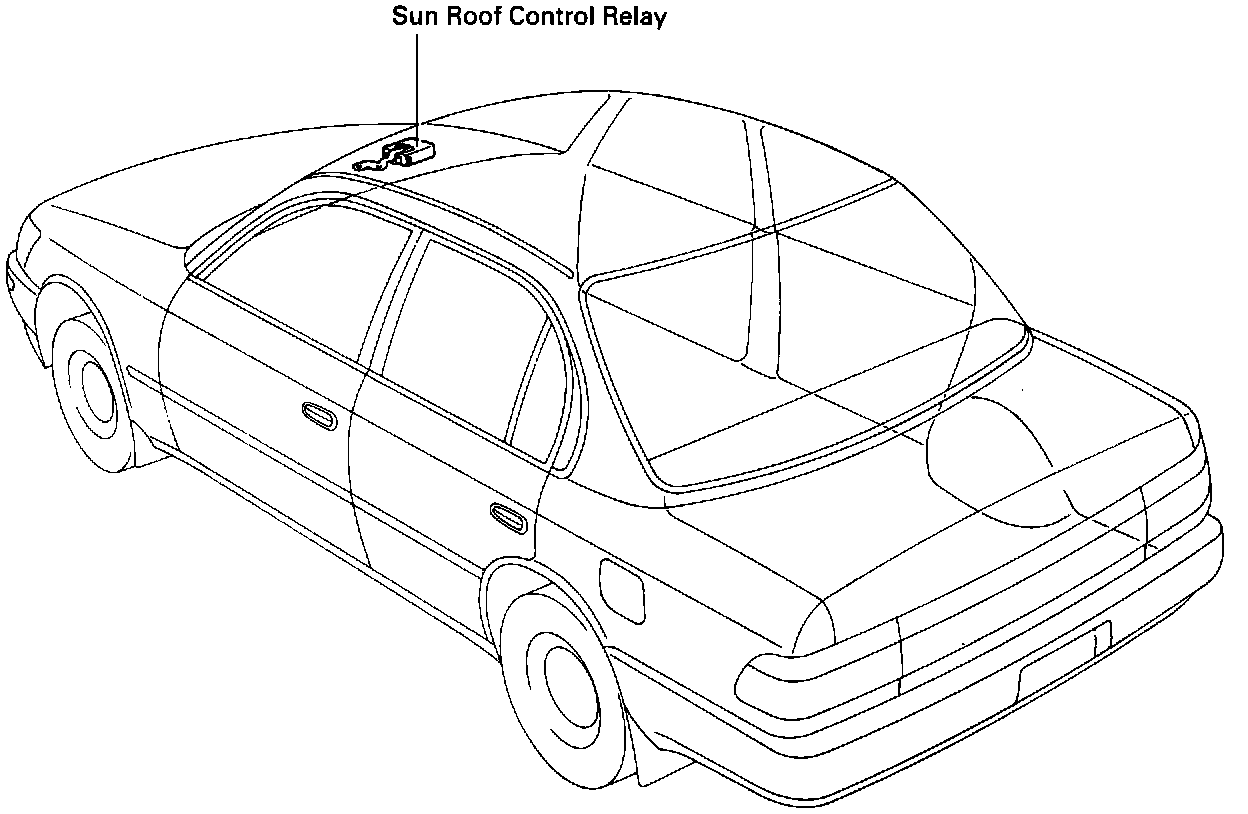

Body (Fig 19):

Body (Fig 19):
