Component Tests and General Diagnostics


KNOCK SENSORS INSPECTION
1. REMOVE KNOCK SENSOR
- Disconnect the knock sensor connector.

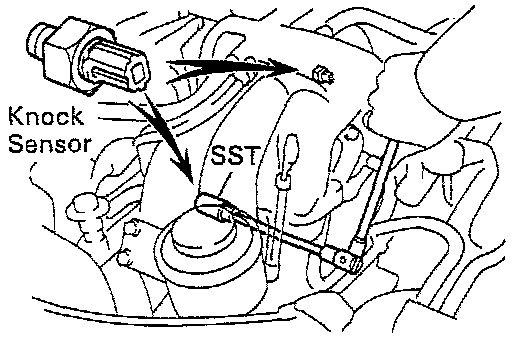

- Using SST, remove the knock sensor.
SST 09816-30010
2. INSPECT KNOCK SENSOR

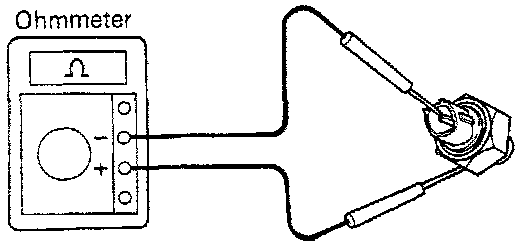

- Using an ohmmeter, check that there is no continuity between the terminal and body.
- If there is continuity, replace the sensor.
3. REINSTALL KNOCK SENSOR

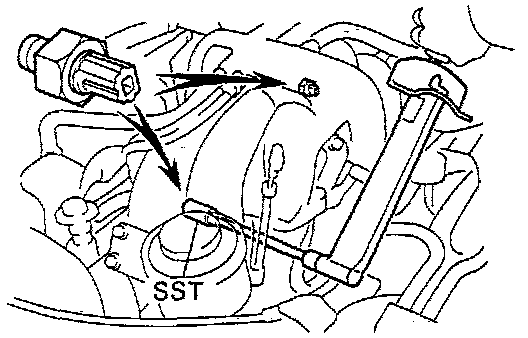

- Using SST, install the knock sensor. SST 09816-30010

Torque: 44 N.m (450 kgf.cm, 33 ft.lbf)

- Connect the knock sensor connector.
