Oxygen Sensor: Testing and Inspection
HEATED OXYGEN SENSORS INSPECTION INSPECT HEATER RESISTANCE OF HEATED OXYGEN SENSORS -
Disconnect the heated oxygen sensor connector.
-

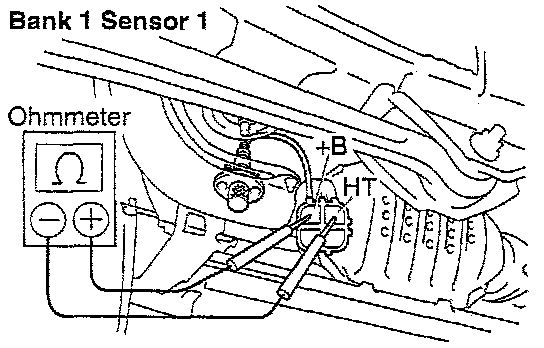

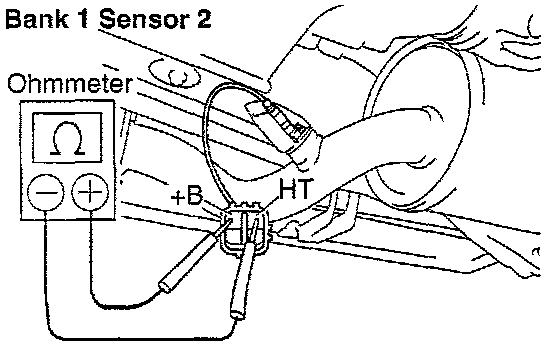

Using an ohmmeter, measure the resistance between terminals +B and HT.
Resistance: At 20°C (68°F): 11 - 16 ohms -
If resistance is not as specified, replace the heated oxygen sensor.
-
Reconnect the heated oxygen sensor connector.
