Electronic Brake Control Module: Testing and Inspection

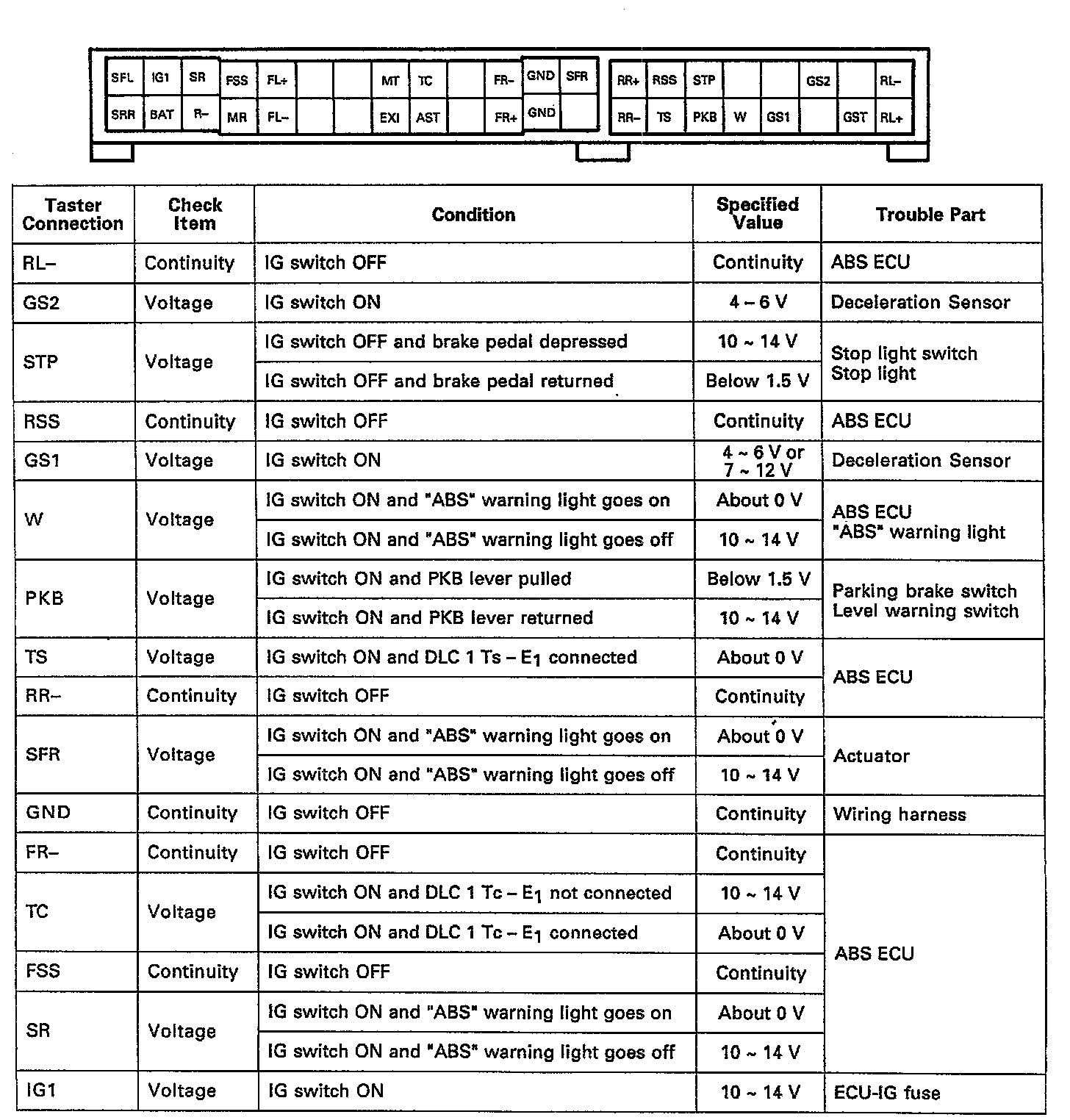

ANTI-LOCK BRAKE SYSTEM CIRCUIT ECU PINOUT VALUESSYSTEM CIRCUIT INSPECTION1. INSPECT SYSTEM CIRCUIT WITH CONNECTOR CONNECTED (a)
Remove the ABS ECU.
(b)
Using a voltmeter with high impedance

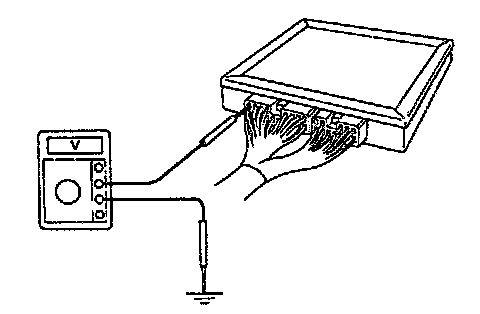

(10 kilo Ohm/V minimum), measure the voltage at each terminal and body ground.
