Radiator Side Support (Assembly)

RADIATOR SIDE SUPPORT (ASSEMBLY)

SYMBOLS




The following symbols are used in the welding Diagrams to indicate cutting areas and the types of weld required.





Illustration of Weld Point Symbols

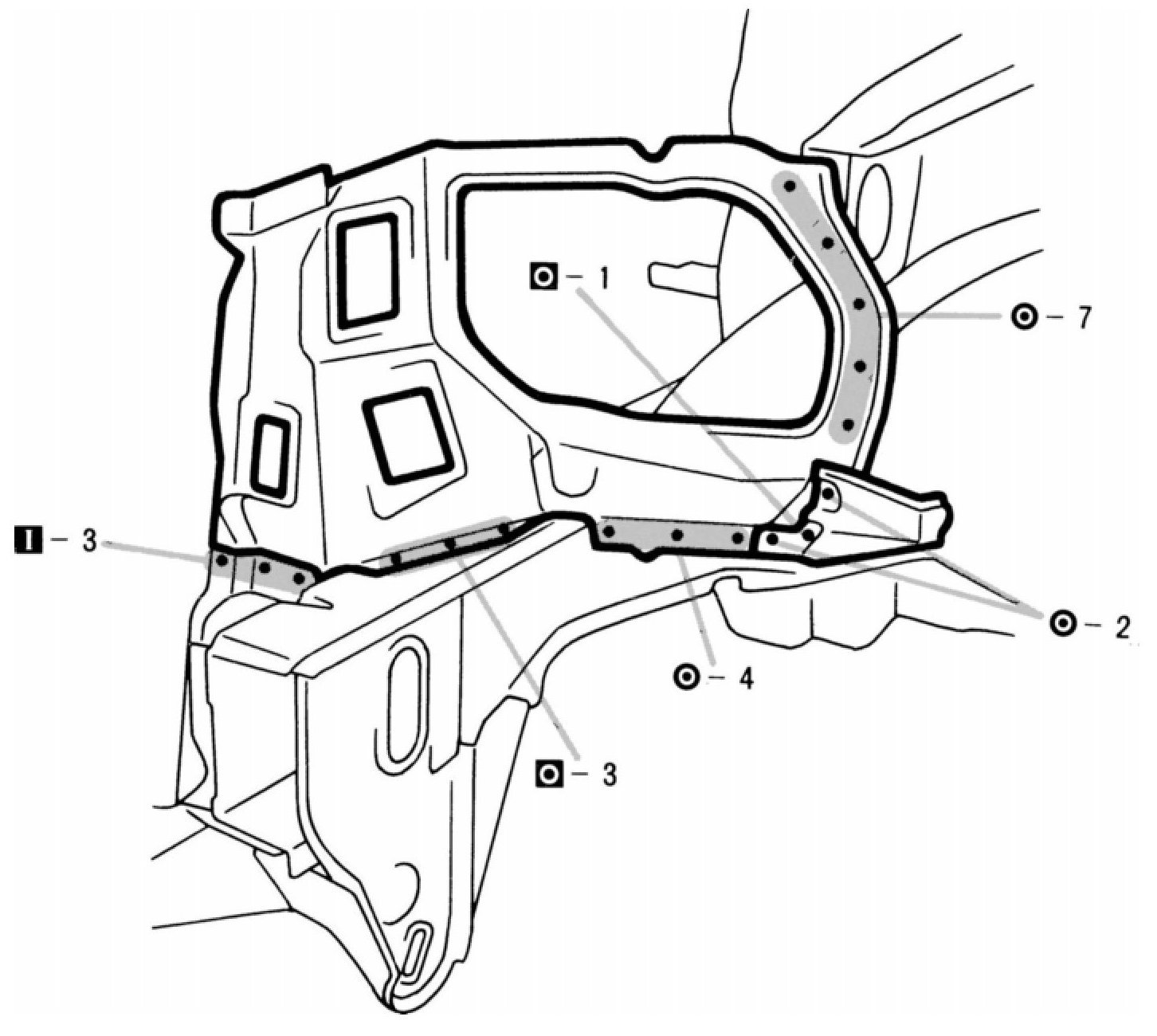

REMOVAL (With the radiator upper support removed.)




1. Replace the Headlight Bracket at the same time.

INSTALLATION




1. Temporarily install the new parts and measure each part in accordance with the body dimension diagram.

HINT: First install the radiator upper support.
