Radiator Support (Assembly)

RADIATOR SUPPORT (ASSEMBLY)

SYMBOLS

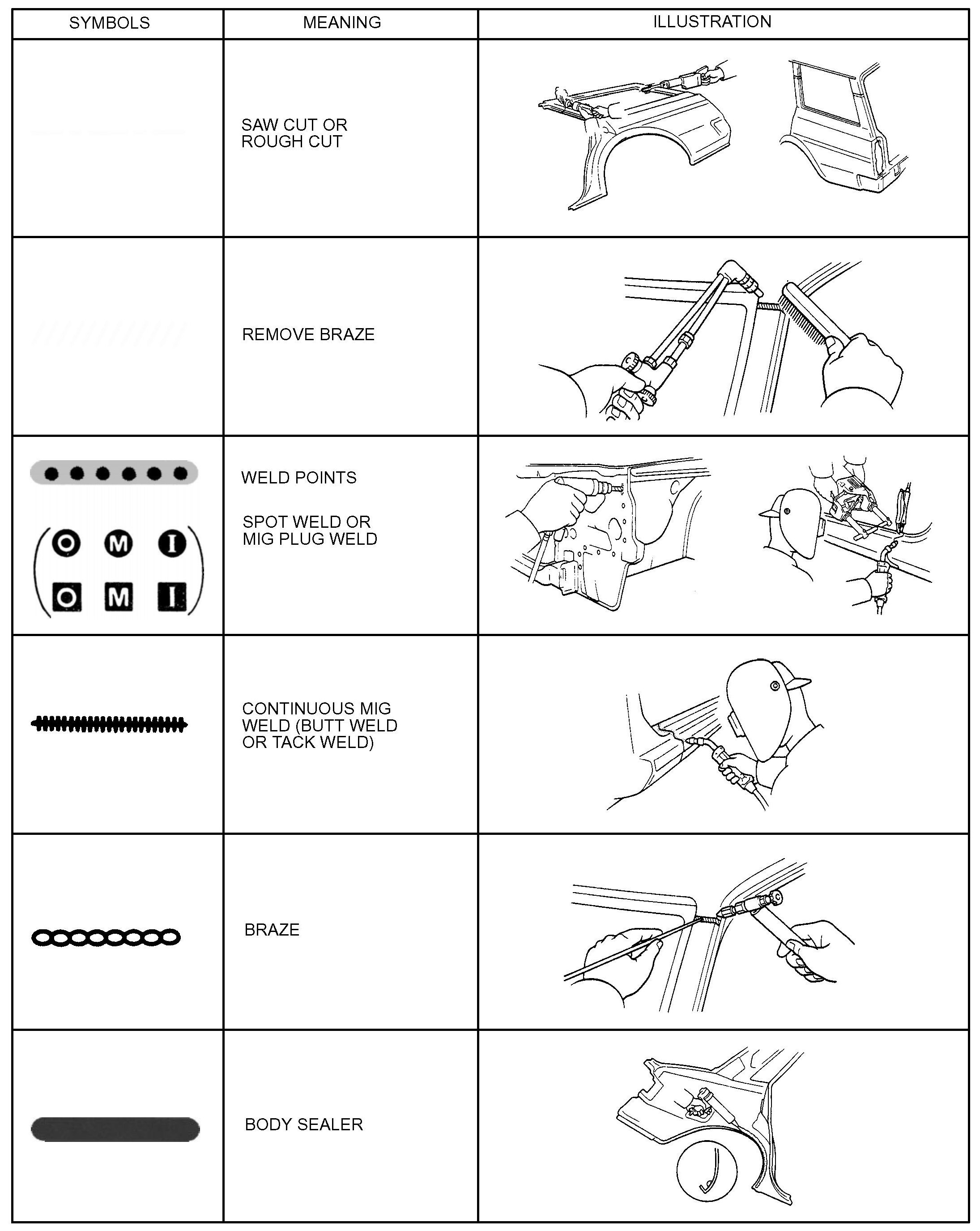

The following symbols are used in the welding Diagrams to indicate cutting areas and the types of weld required.

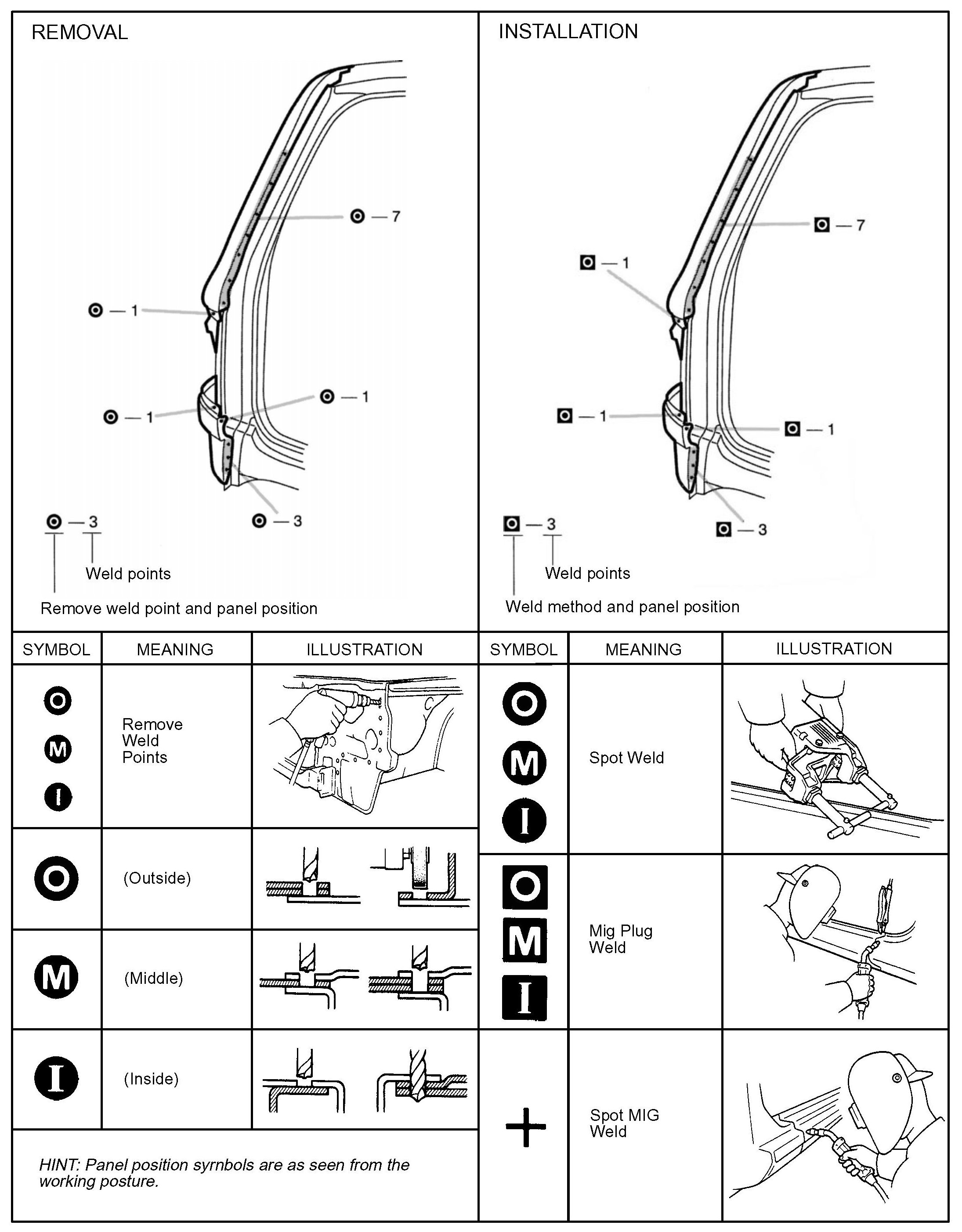

Illustration of Weld Point Symbols

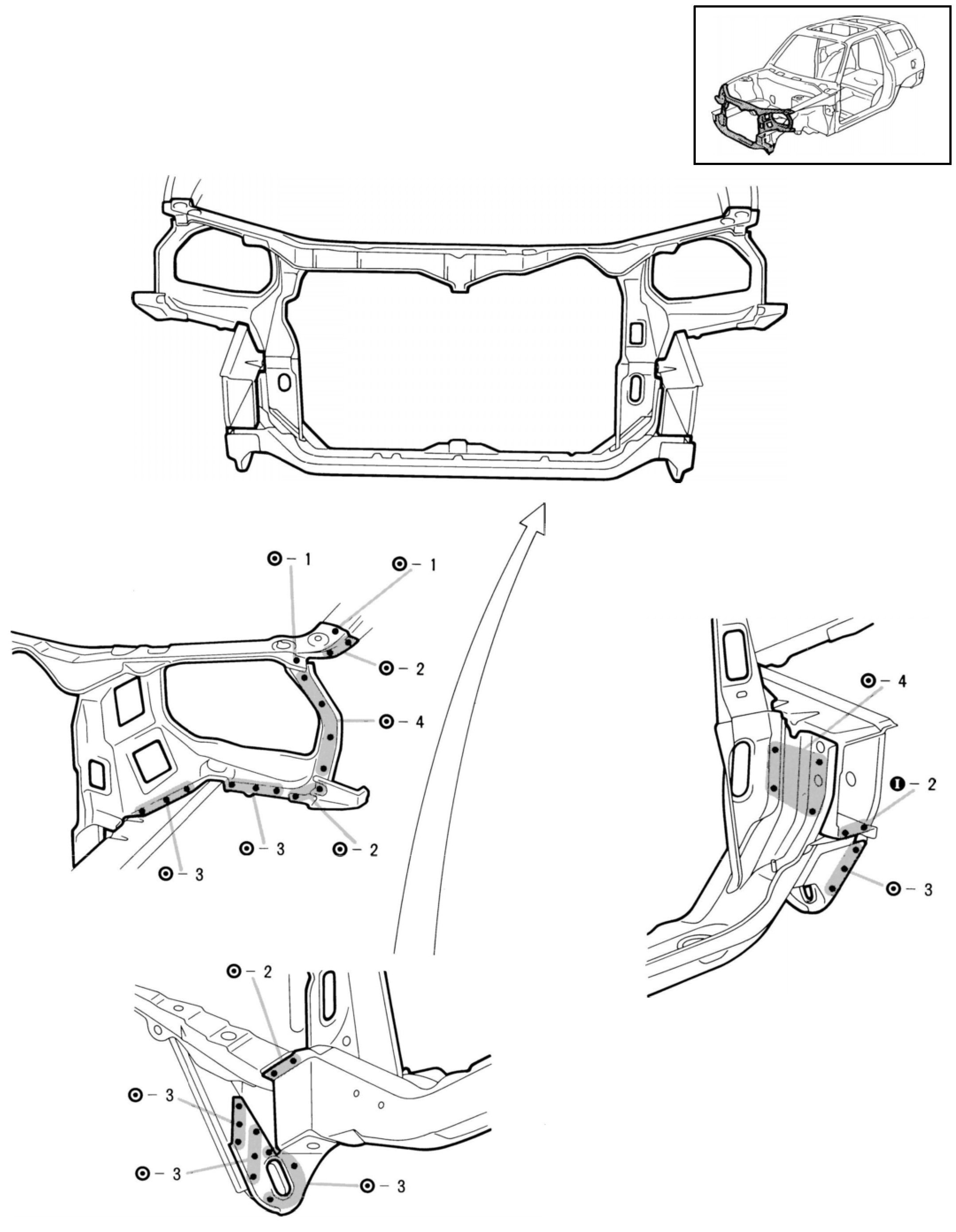

REMOVAL

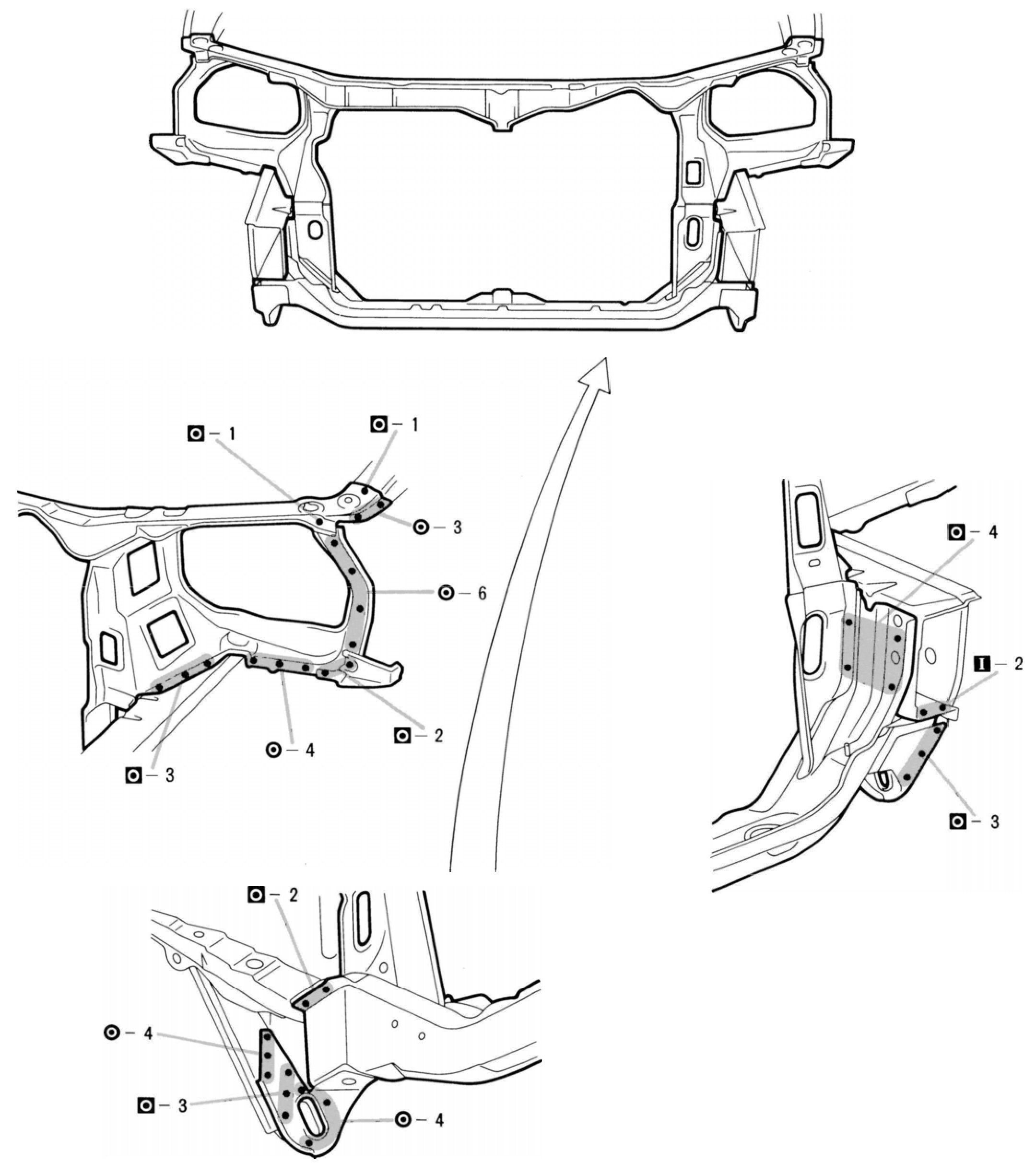

INSTALLATION




1. Temporarily install the new parts and measure each part in accordance with the body-dimension diagram.
