Engine Compartment

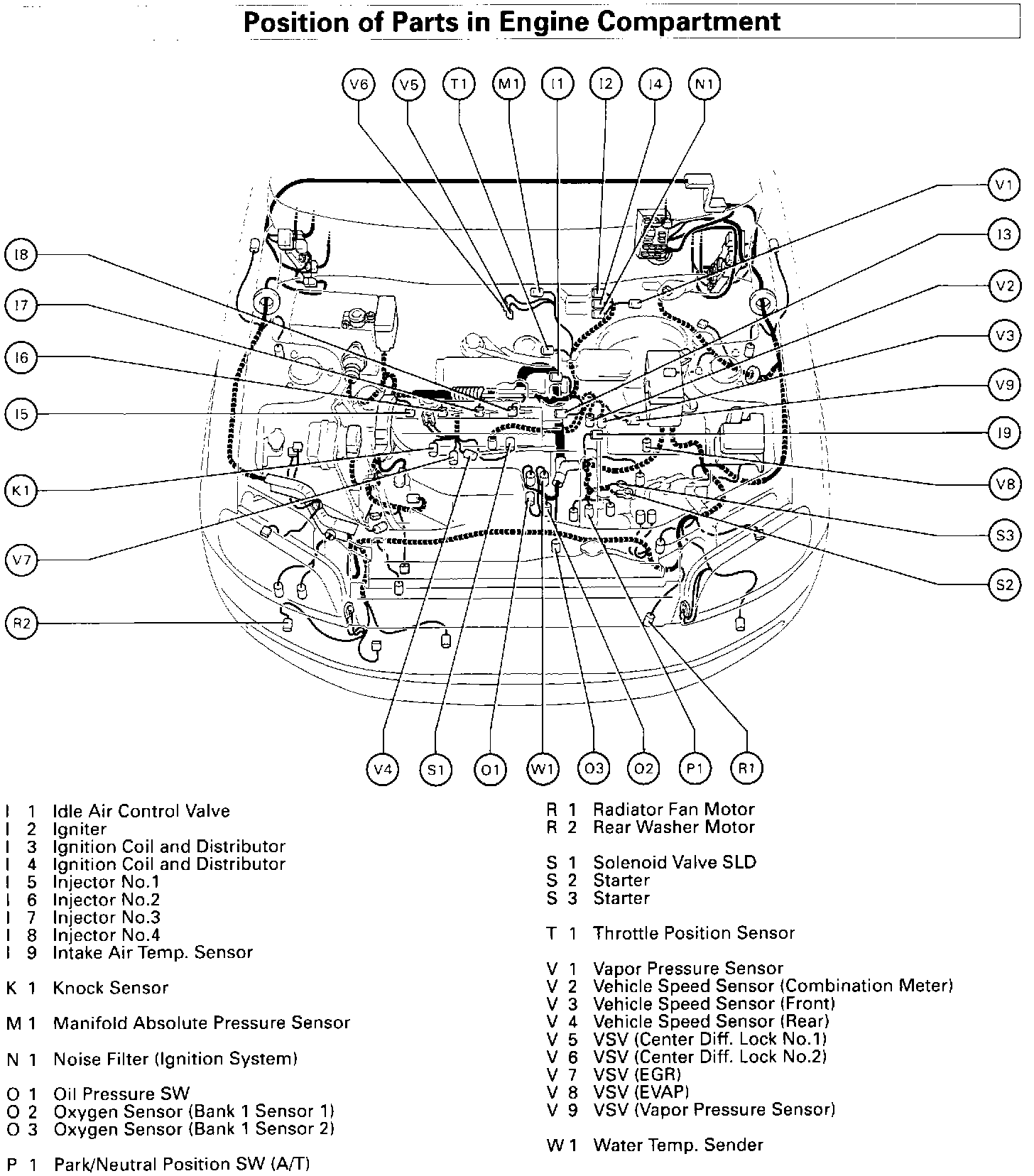

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 28):

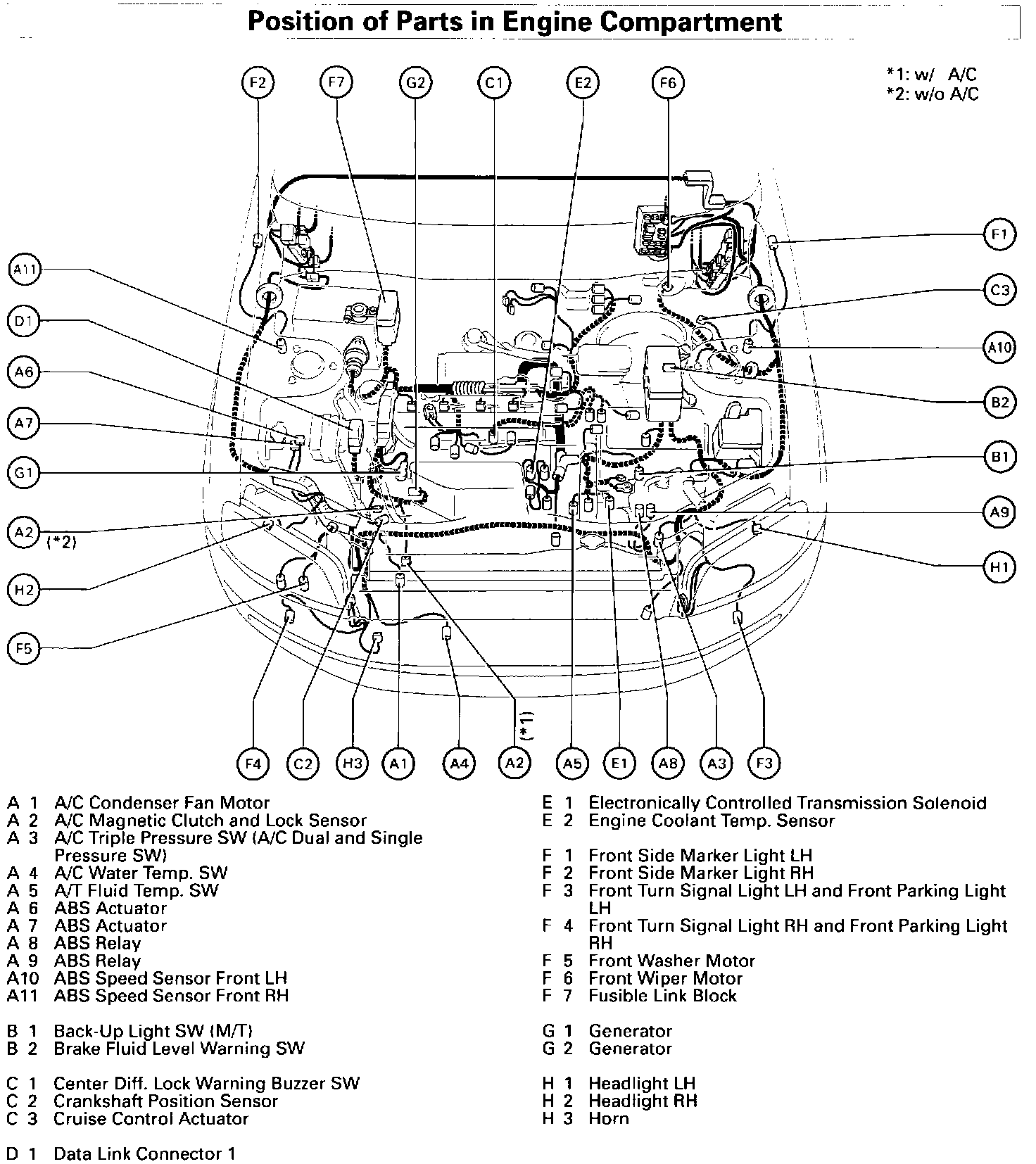

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 29):
