Instrument Panel and Center Console

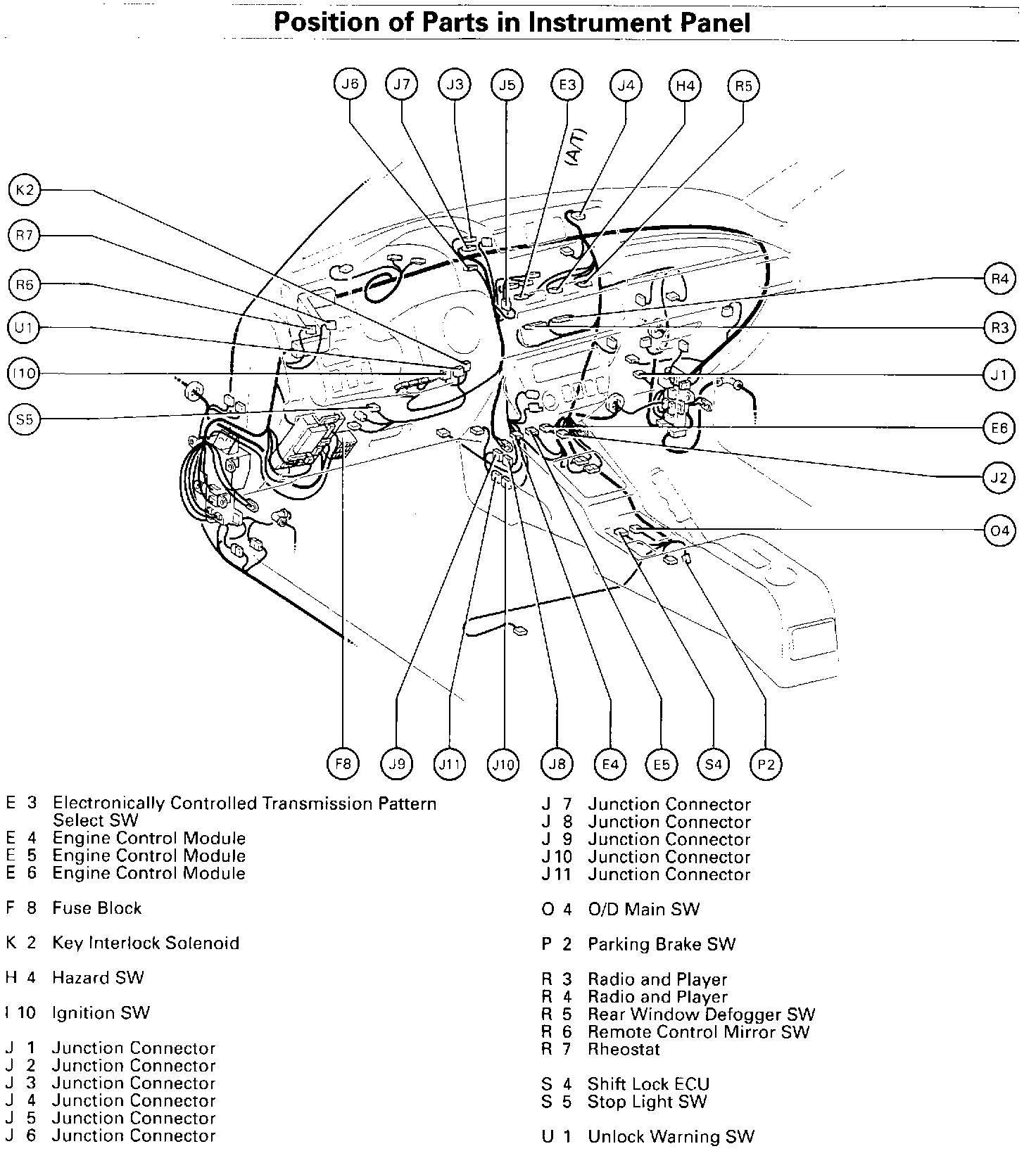

Position Of Parts In Instrument Panel (Part 1 Of 2) (Fig 30):

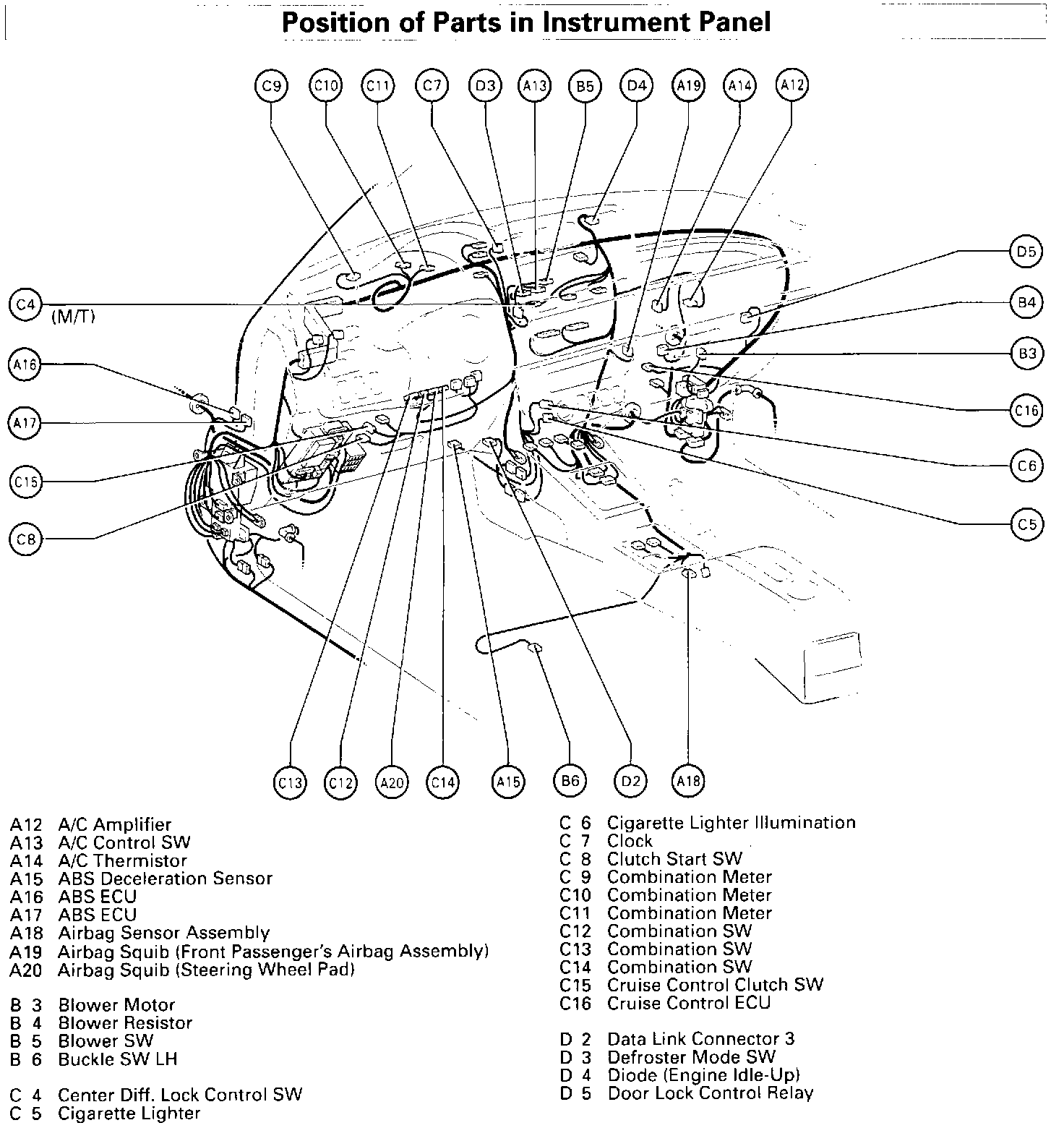

Position Of Parts In Instrument Panel (Part 2 Of 2) (Fig 31):
