Transmission Control Systems
Transmission Control Systems

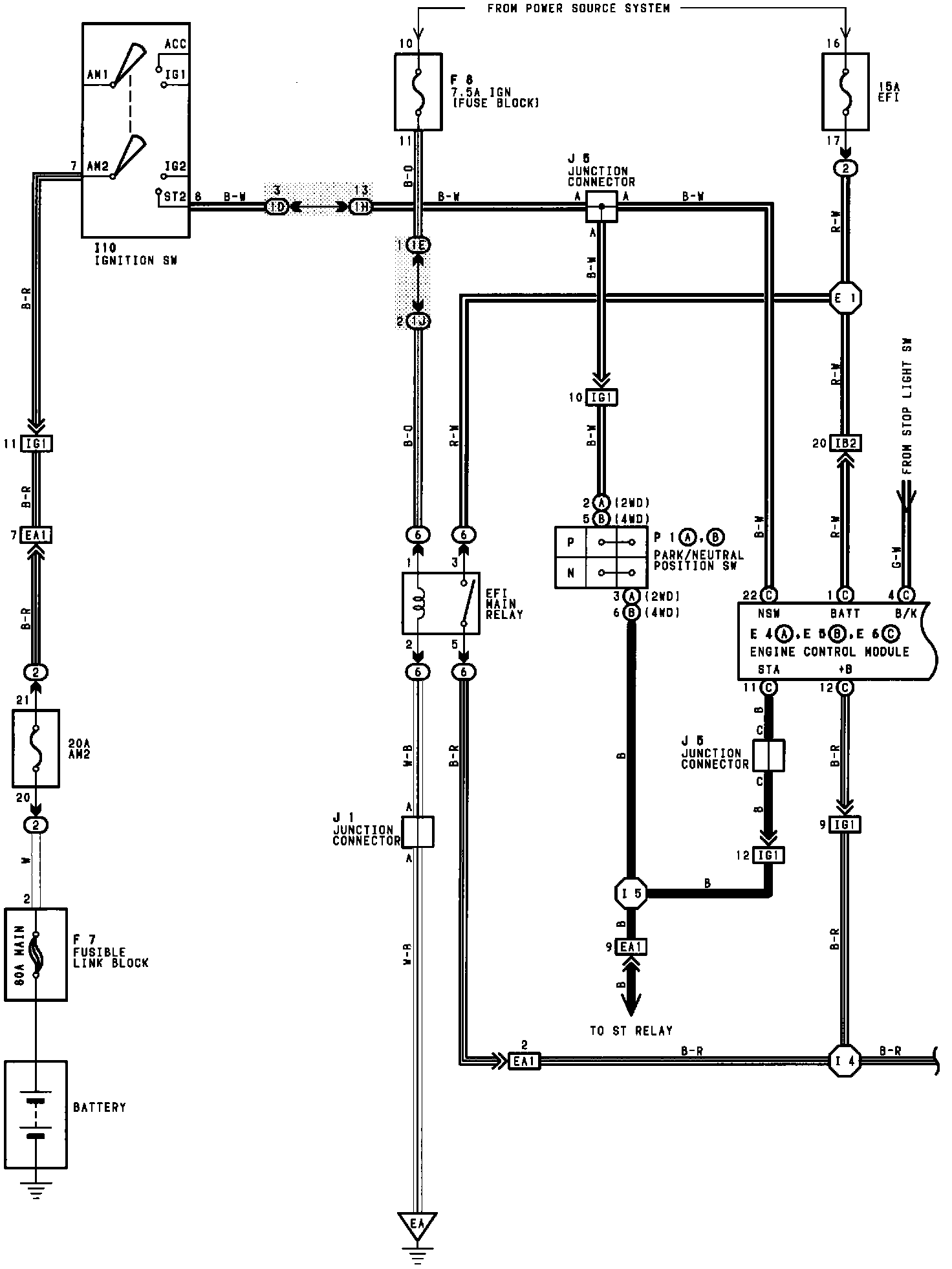

Electronically Controlled Transmission (Part 1 Of 3):

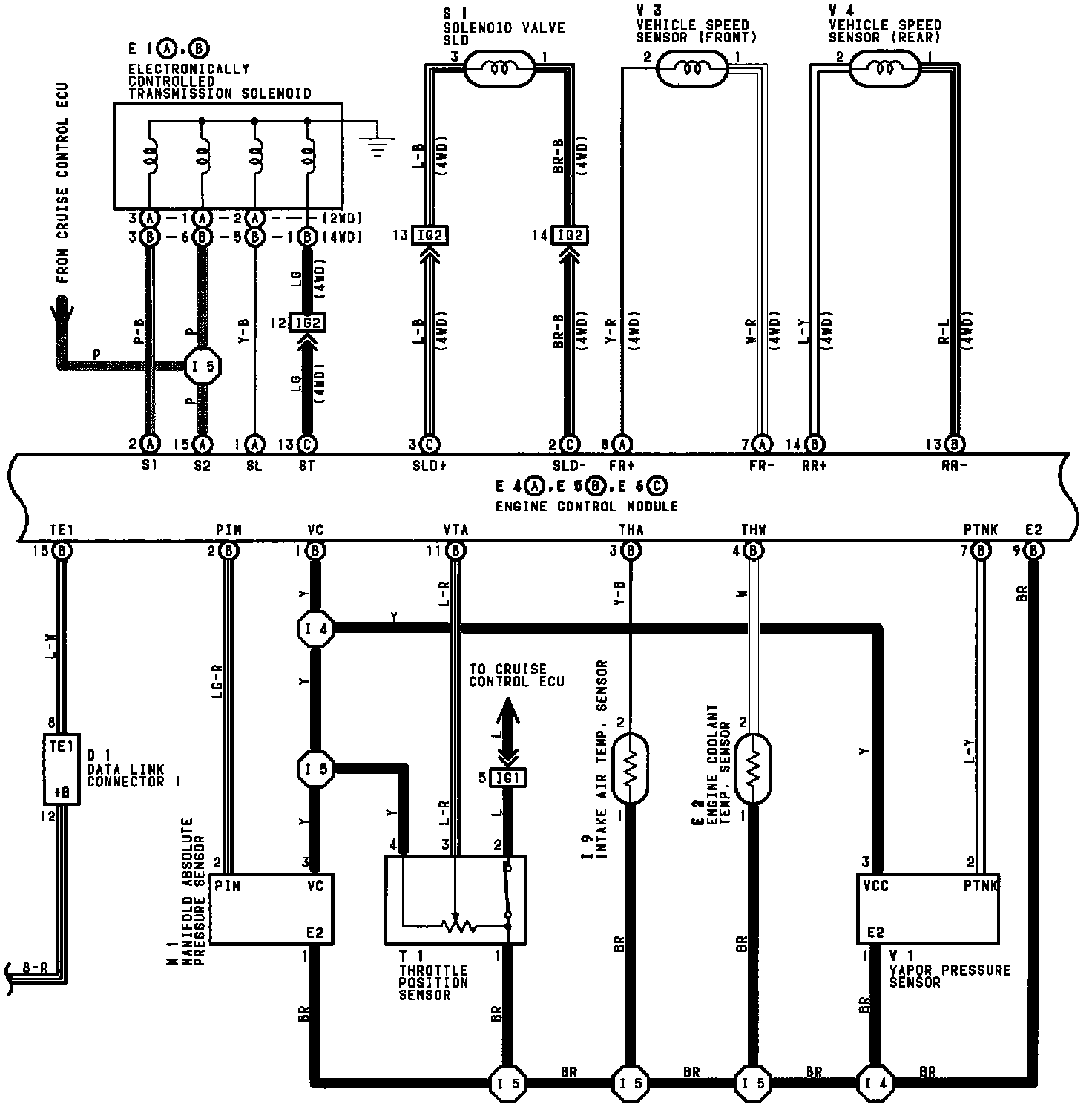

Electronically Controlled Transmission (Part 2 Of 3):
Electronically Controlled Transmission (Part 3 Of 3):
