Connector Locations
>>
IB2
IB2

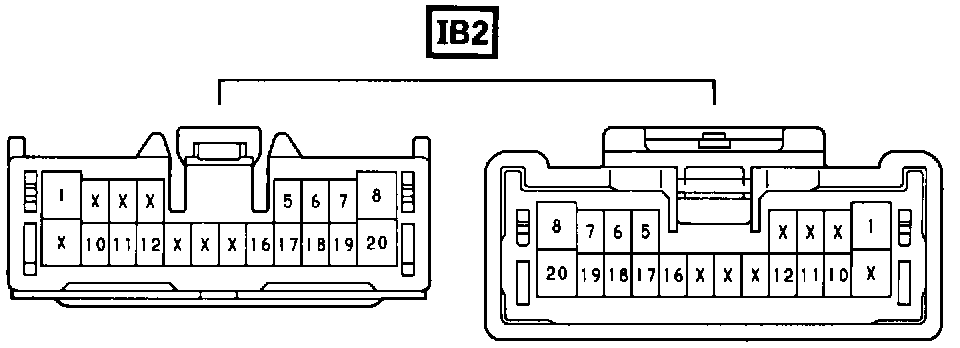

IB2:
Engine Room Main Wire and Instrument Panel Wire (Right Kick Panel)
