Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

1. REMOVE IAT SENSOR
2. INSPECT IAT SENSOR RESISTANCE

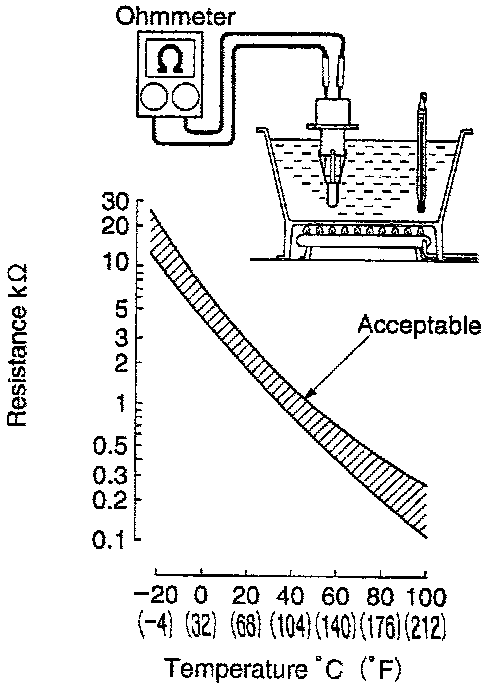

- Using an ohmmeter, measure the resistance between the terminals.

Resistance: Refer to the graph

- If the resistance is not as specified, replace the sensor.
3. REINSTALL IAT SENSOR
