Symptom Related Diagnostic Procedures

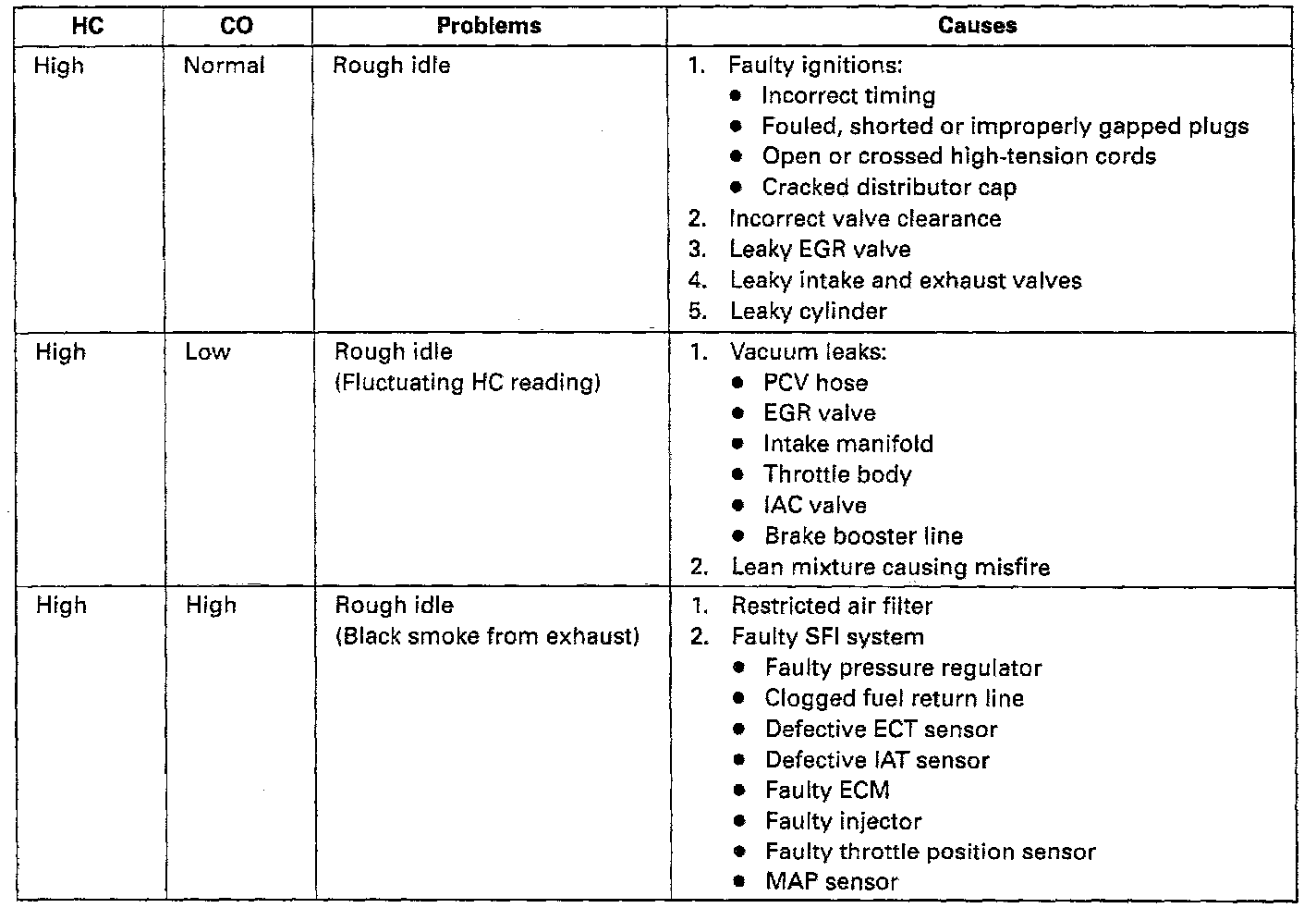

If the CO/HC concentration does not comply with regulations, perform troubleshooting in the order given above. Check oxygen sensor operation. See the table for possible causes, then inspect and correct the applicable causes if necessary.
