Body and Frame: Service and Repair

GENERAL REPAIR INSTRUCTIONS

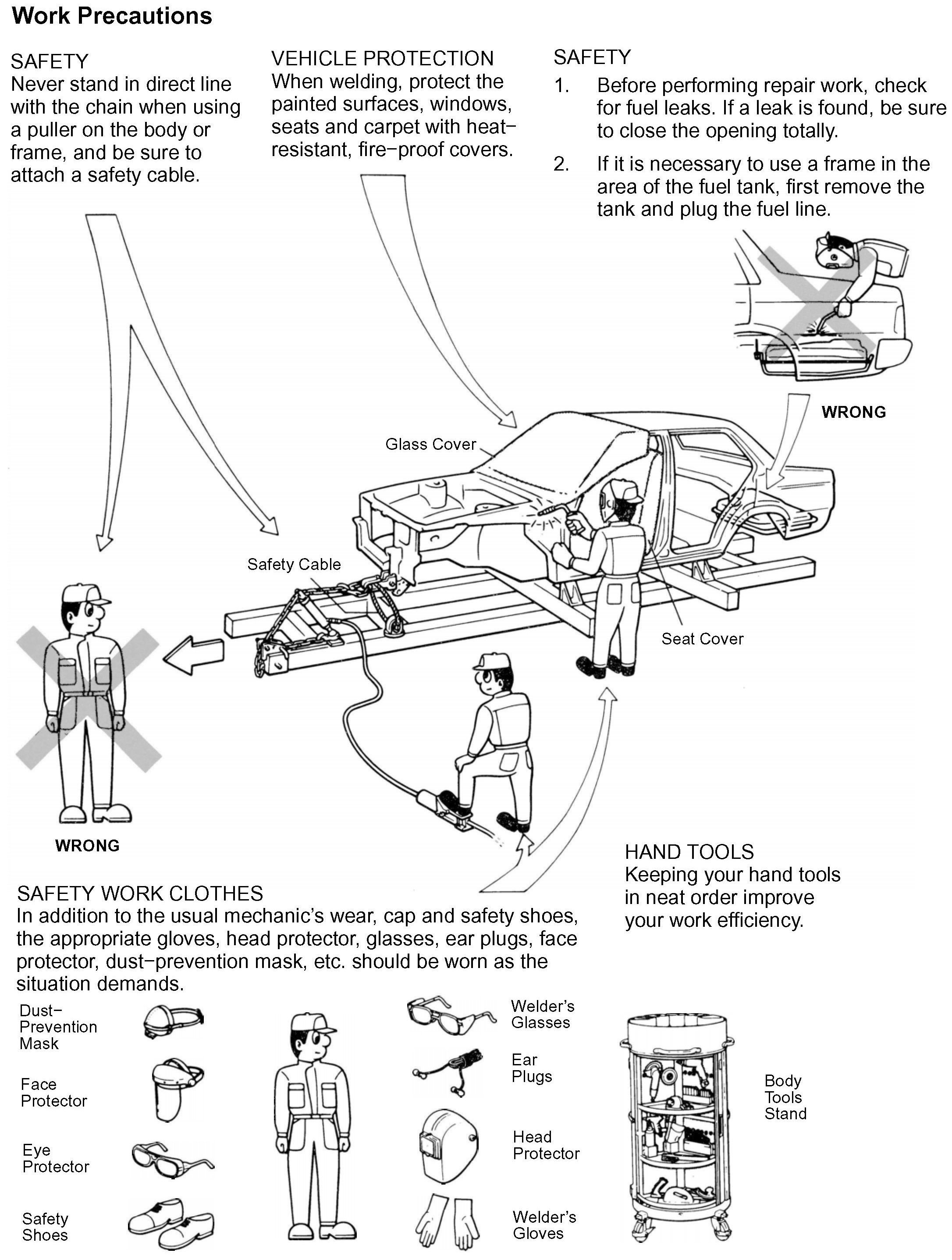

Proper and Efficient Work Procedures




REMOVAL

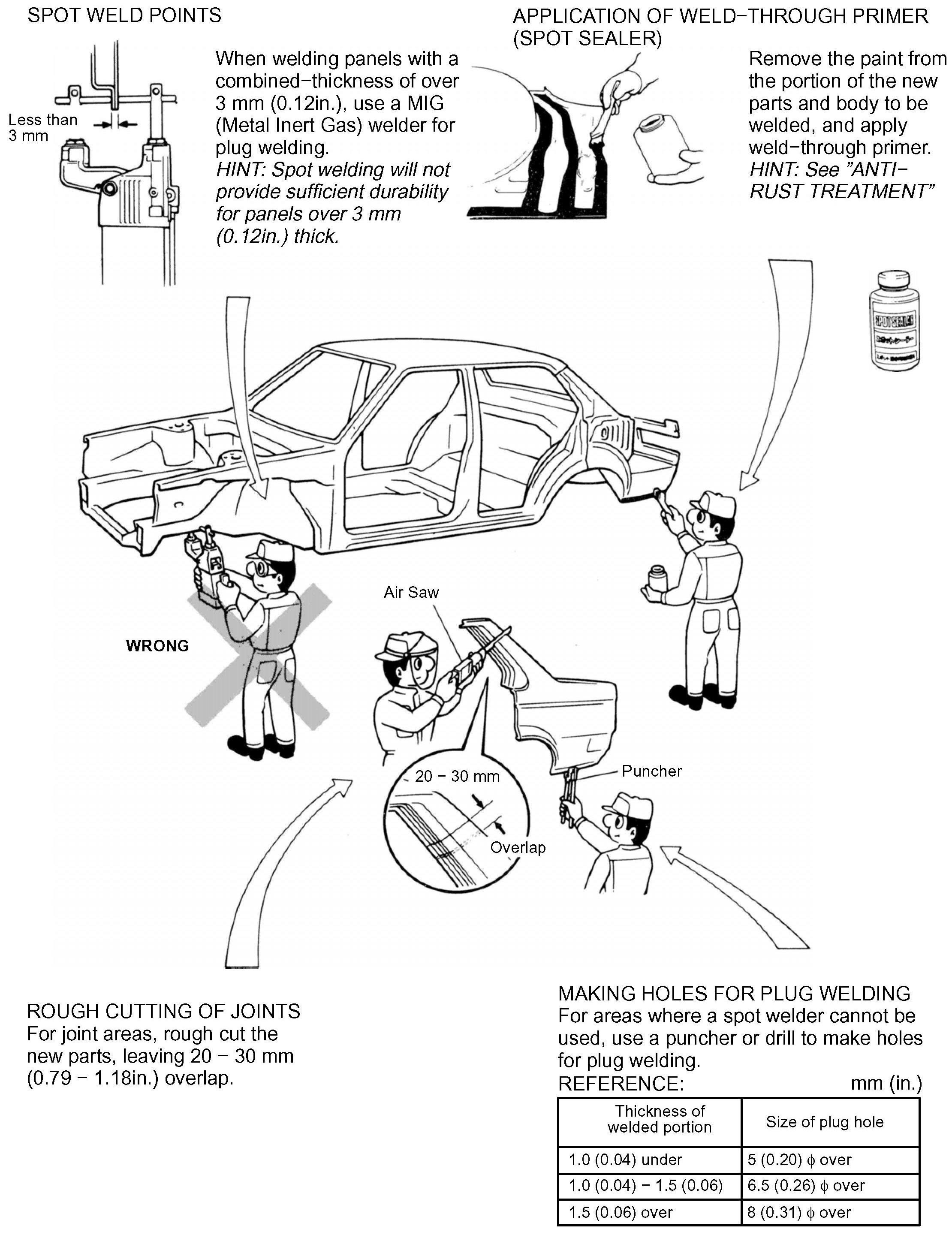

PREPARATION FOR INSTALLATION

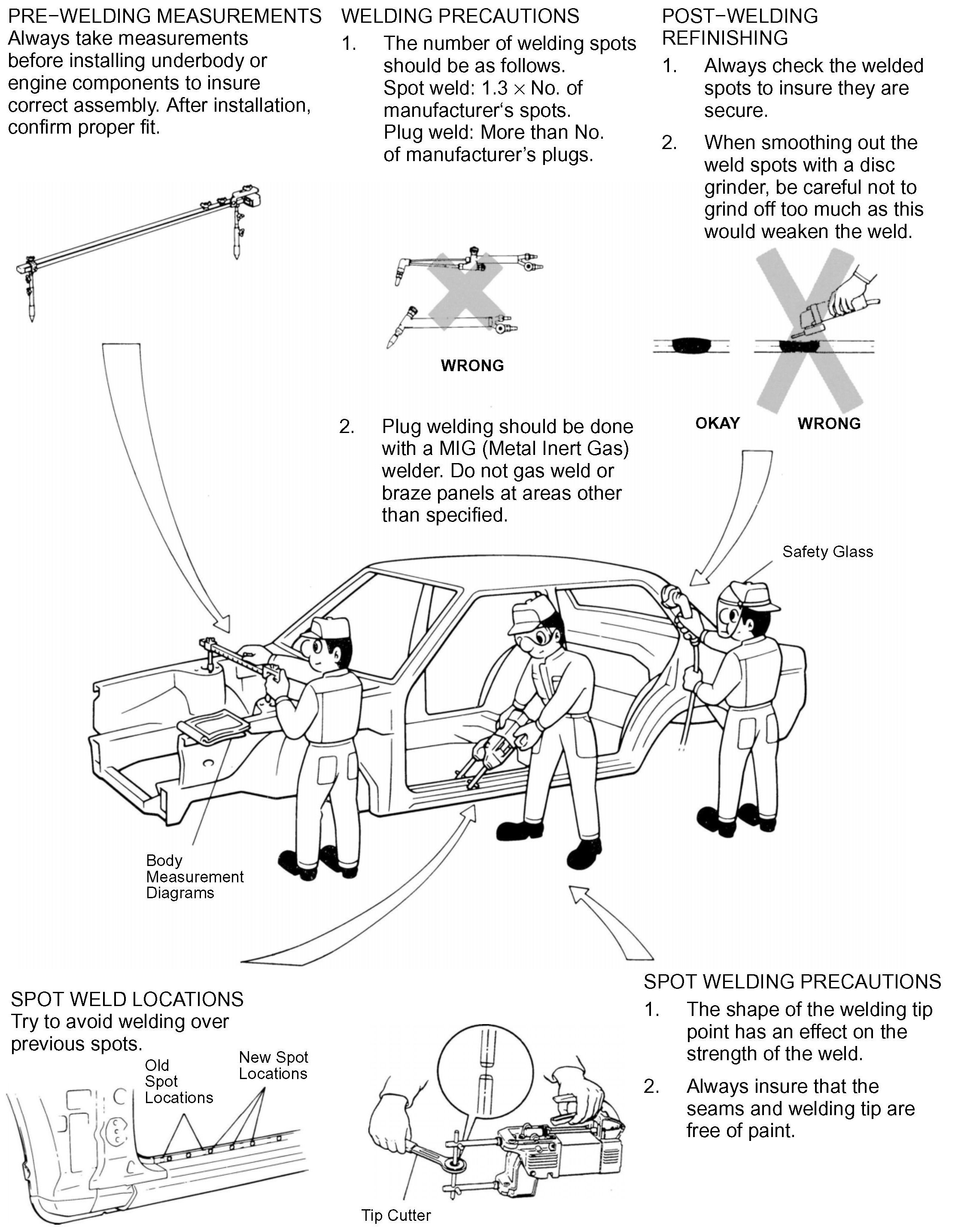

INSTALLATION

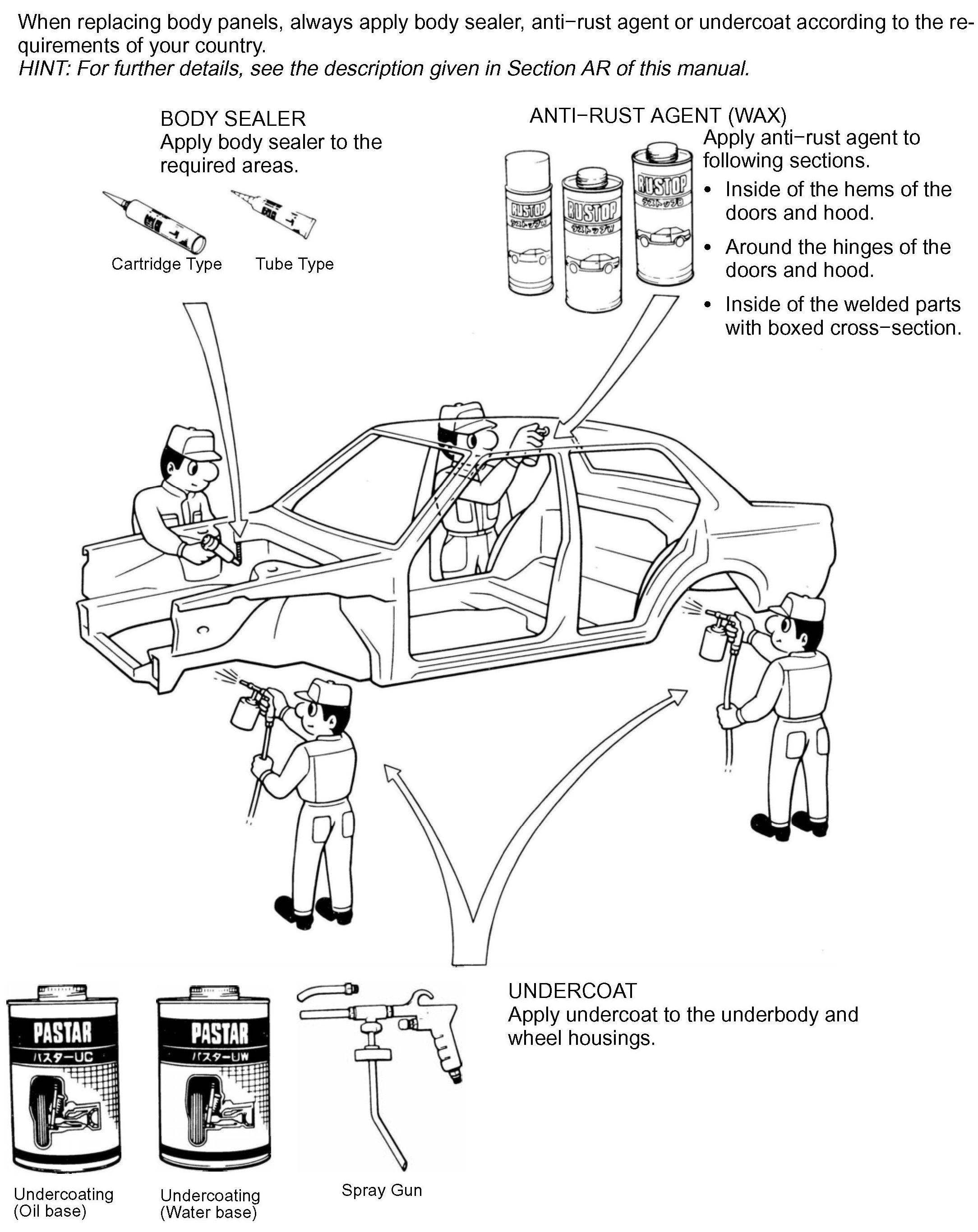

ANTI-RUST TREATMENT
