Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1996
>>
RAV4 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Brakes and Traction Control
>>
Electronic Brake Control Module
>>
Testing and Inspection
>>

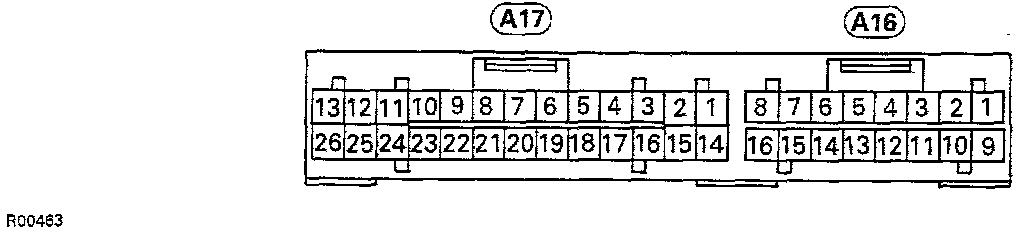

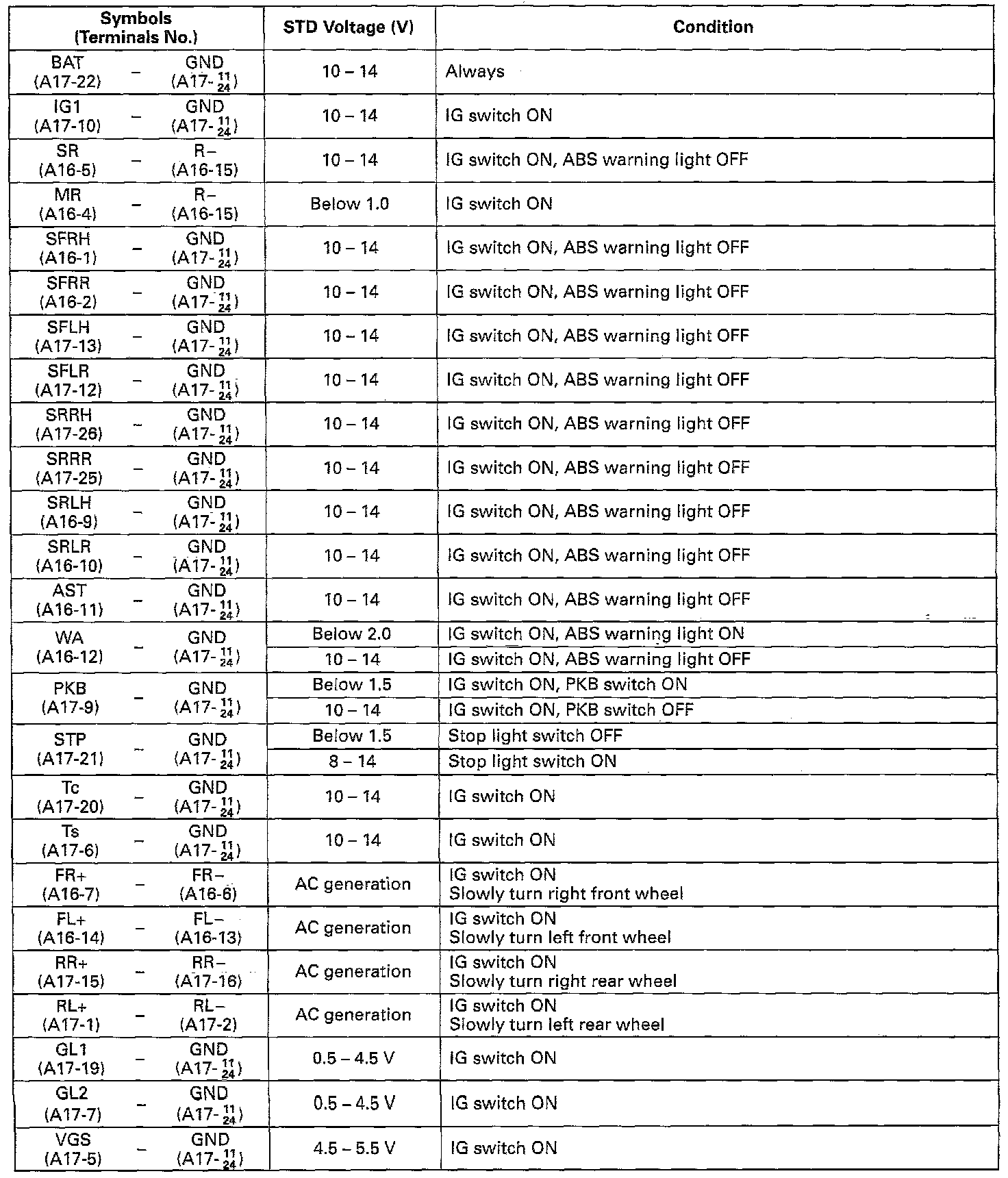

Standard Values of ECU Terminals
Standard Values of ECU Terminals
4WD Models:
