Wheel Hub

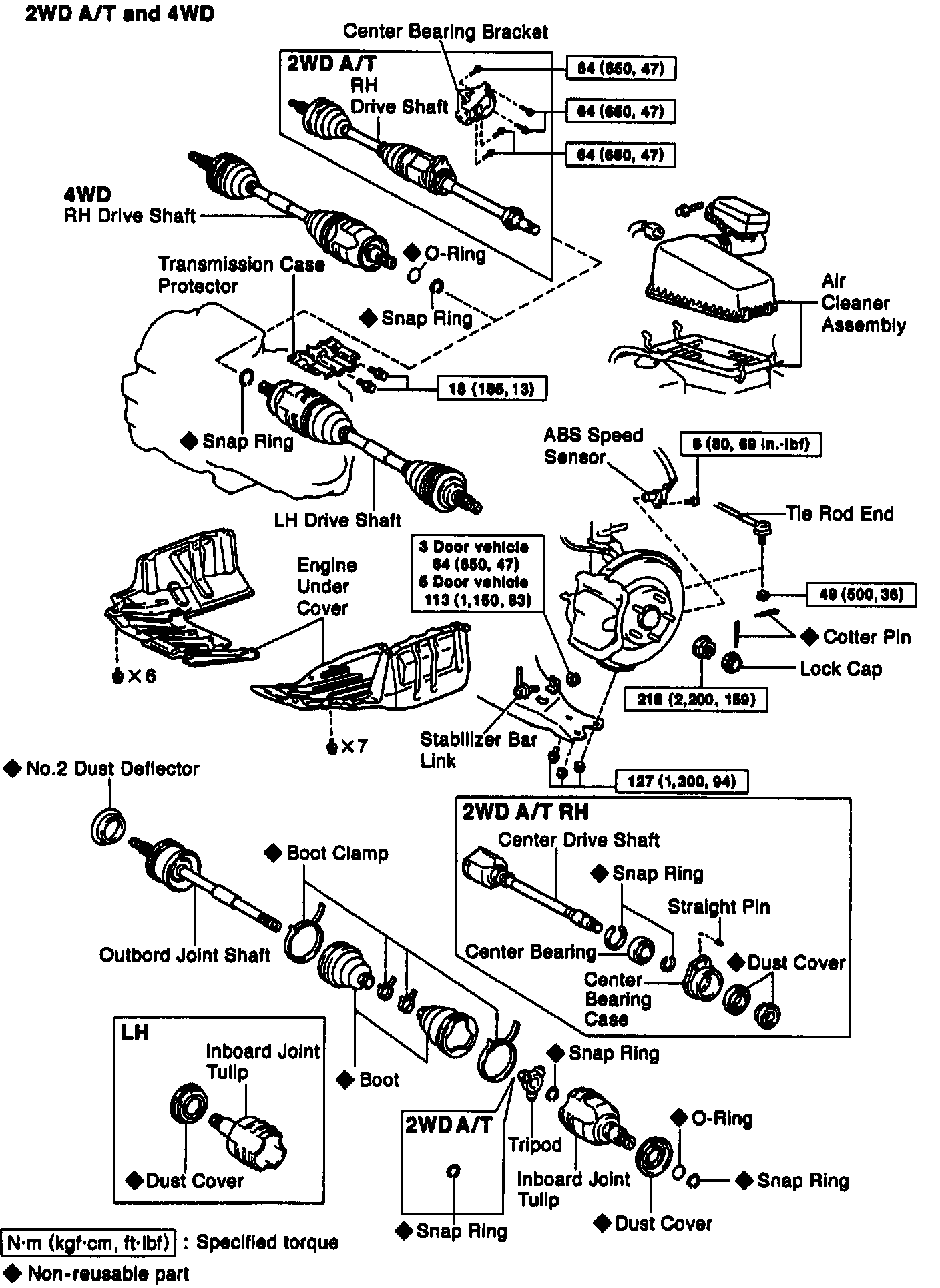

Front Drive Shaft Components, 2WD A/T And 4WD:

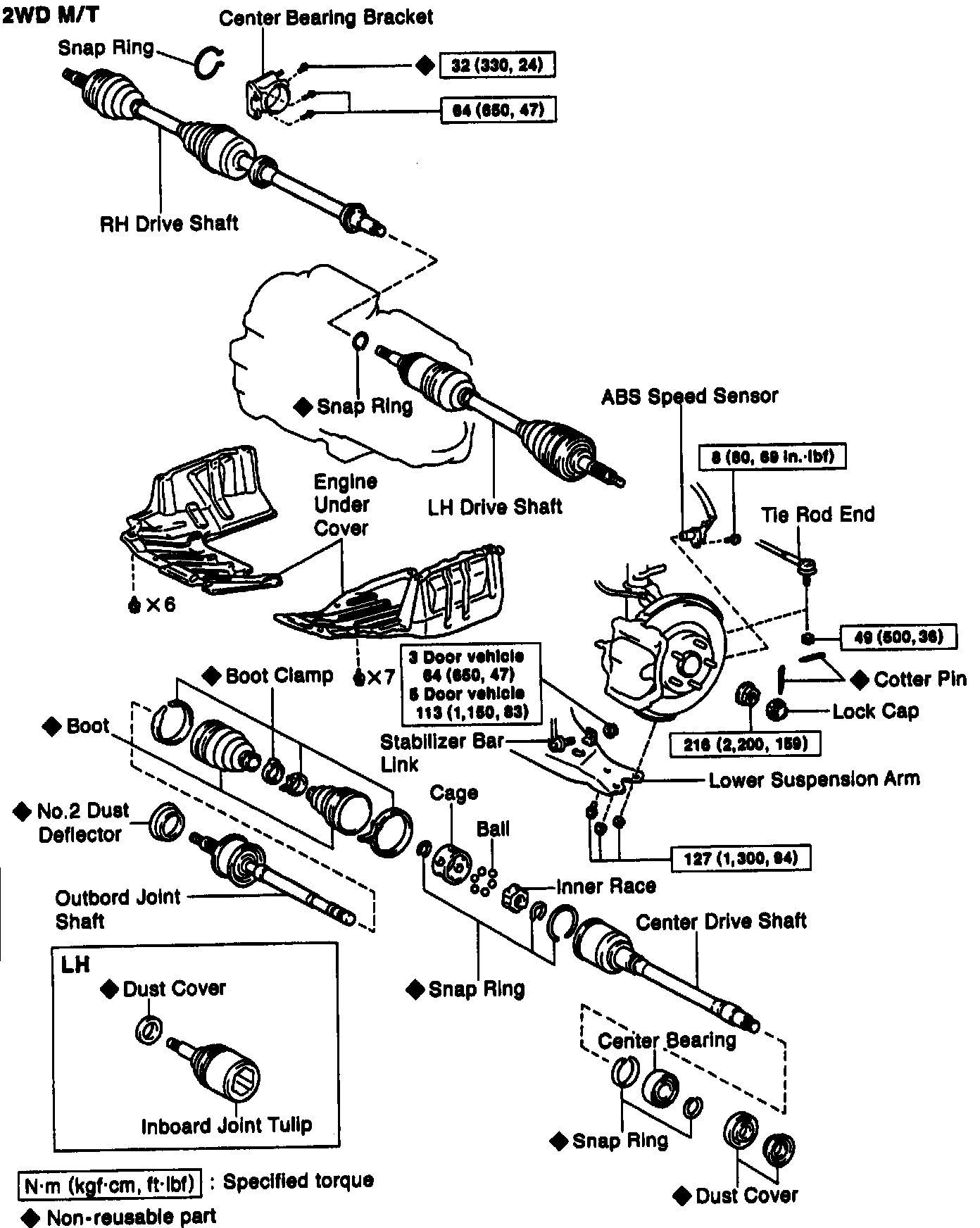

Front Drive Shaft Components, 2WD M/T:



Rear Axle Components:
