Engine Compartment

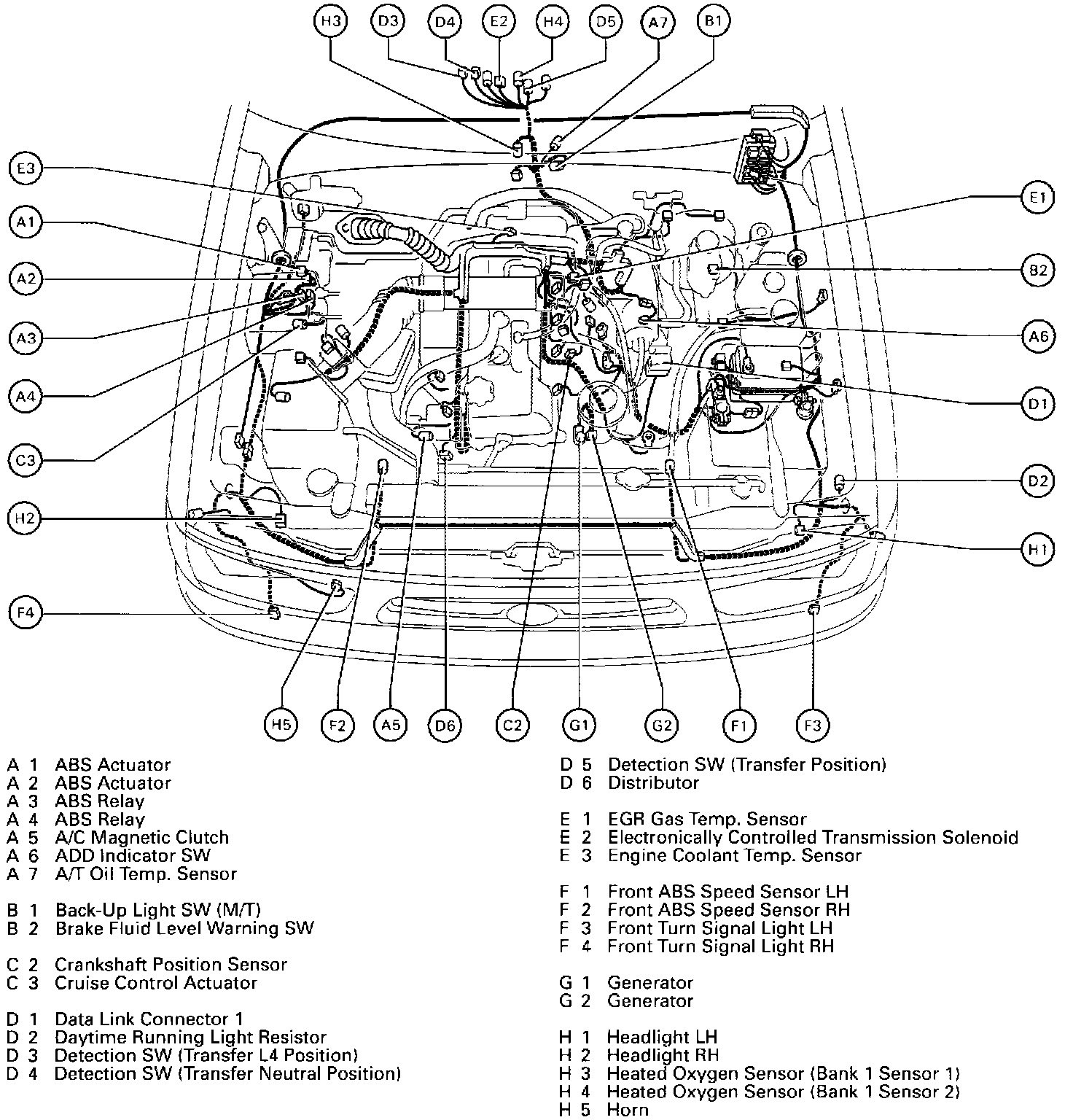

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 26):

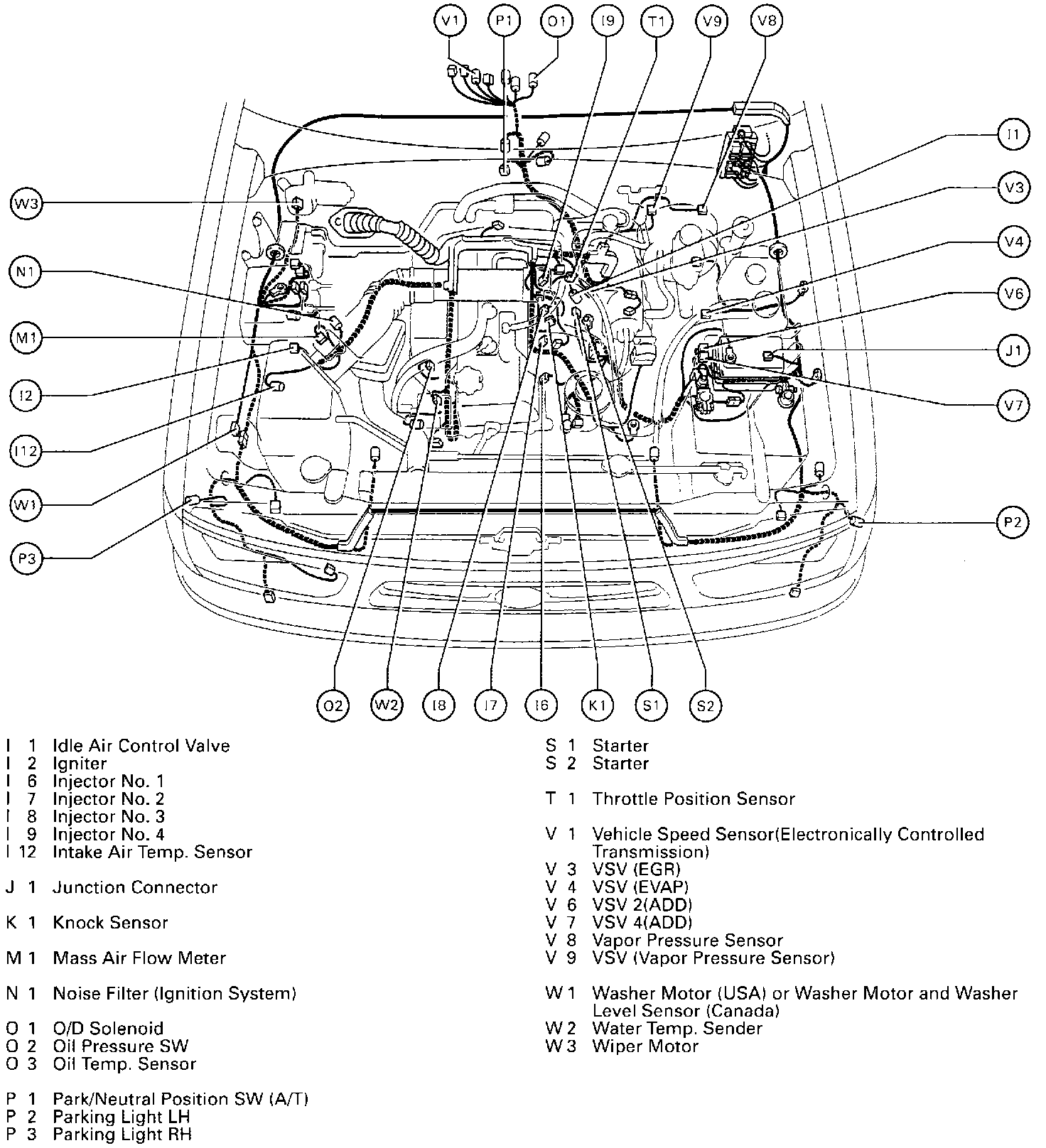

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 27):

A 1 ABS Actuator
A 2 ABS Actuator
A 3 ABS Relay
A 4 ABS Relay
A 5 A/C Magnetic Clutch
A 6 ADD Indicator SW
A 7 A/T Oil Temp. Sensor

B 1 Back-Up Light SW (M/T)
B 2 Brake Fluid Level Warning SW

C 2 Crankshaft Position Sensor
C 3 Cruise Control Actuator

D 1 Data Link Connector 1
D 2 Daytime Running Light Resistor
D 3 Detection SW (Transfer L4 Position)
D 4 Detection SW (Transfer Neutral Position)
D 5 Detection SW (Transfer Position)
D 6 Distributor

E 1 EGR Gas Temp. Sensor
E 2 Electronically Controlled Transmission Solenoid
E 3 Engine Coolant Temp. Sensor

F 1 Front ABS Speed Sensor LH
F 2 Front ABS Speed Sensor RH
F 3 Front Turn Signal Light LH
F 4 Front Turn Signal Light RH

G 1 Generator
G 2 Generator

H 1 Headlight LH
H 2 Headlight RH
H 3 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 4 Heated Oxygen Sensor (Bank 1 Sensor 2)
H 5 Horn

I 1 Idle Air Control Valve
I 2 Igniter
I 6 Injector No. 1
I 7 Injector No. 2
I 8 Injector No. 3
I 9 Injector No. 4
I12 Intake Air Temp. Sensor

J 1 Junction Connector

K 1 Knock Sensor

M 1 Mass Air Flow Meter

N 1 Noise Filter (Ignition System)

O 1 O/D Solenoid
O 2 Oil Pressure SW
O 3 Oil Temp. Sensor

P 1 Park/Neutral Position SW (A/T)
P 2 Parking Light LH
P 3 Parking Light RH

S 1 Starter
S 2 Starter

T 1 Throttle Position Sensor

V 1 Vehicle Speed Sensor(Electronically Controlled Transmission)
V 3 VSV (EGR)
V 4 VSV (EVAP)
V 6 VSV 2(ADD)
V 7 VSV 4(ADD)
V 8 Vapor Pressure Sensor
V 9 VSV (Vapor Pressure Sensor)


W 1 Washer Motor (USA) or Washer Motor and Washer Level Sensor (Canada)
W 2 Water Temp. Sender
W 3 Wiper Motor
