Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1996
>>
Tacoma 2WD L4-2.4L (2RZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Control Arm
Control Arm

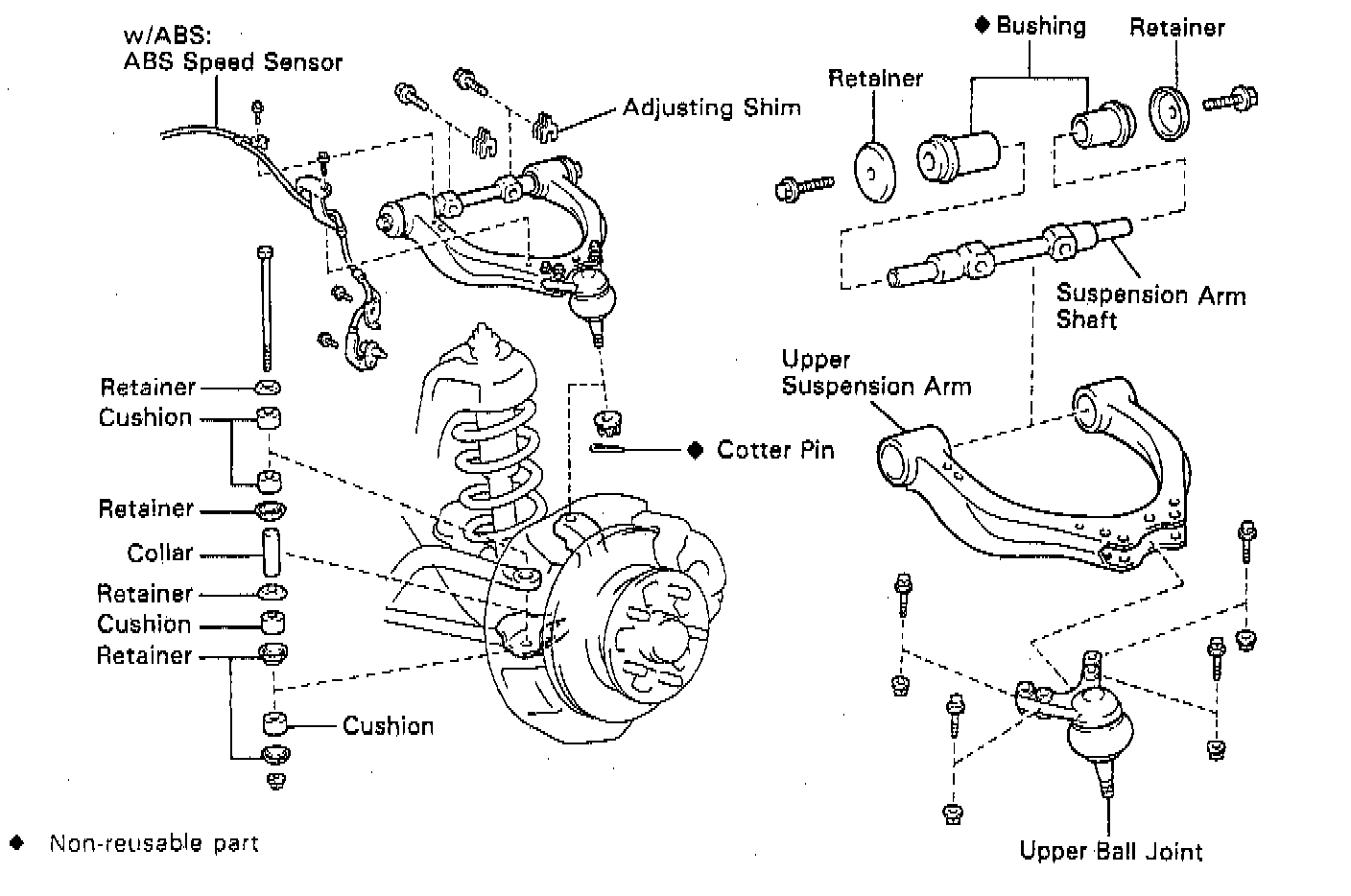

Front-Upper Suspension:

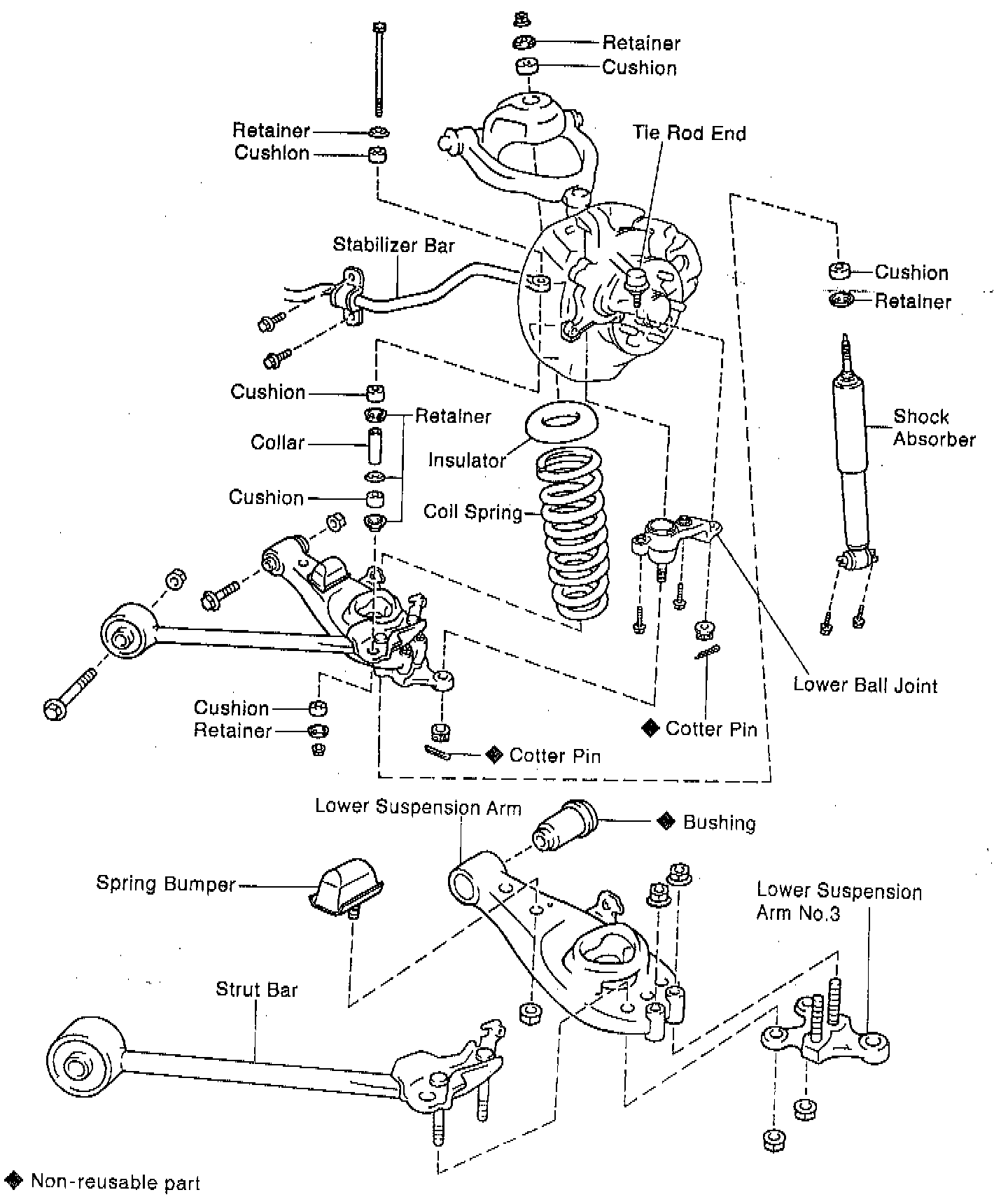

Front Lower Suspension Arm And Coil Spring:
