Air Flow Meter/Sensor: Service and Repair

COMPONENTS FOR REMOVAL AND INSTALLATION





REMOVAL

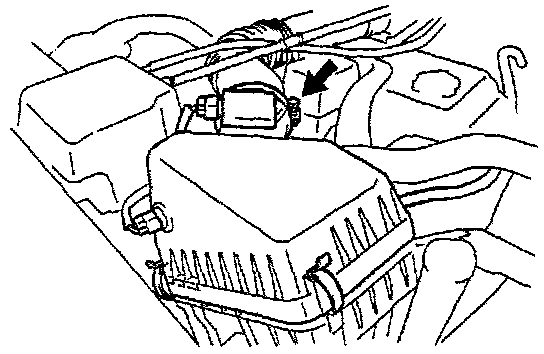

1. REMOVE AIR CLEANER CAP WITH MAF METER.
- Disconnect the MAF meter connector, IAT sensor connector and wire clamp.
- Loosen the air cleaner hose clamp.
- 3RZ-FE:
- Disconnect the air hose from the air cleaner cap.
- Loosen the 4 clips, and remove the air cleaner cap together with the MAF meter.





2. REMOVE MAF METER FROM AIR CLEANER CAP.

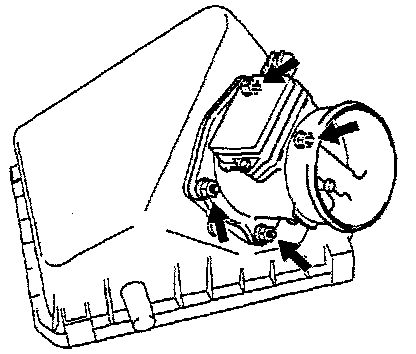

- Remove the 4 nuts, MAF meter and gasket.

INSTALLATION





1. INSTALL MAF METER TO AIR CLEANER CAP.

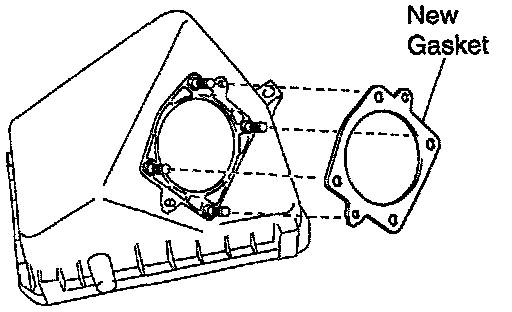

- Place a new gasket on the air cleaner cap.
- Install the MAF meter with the 4 nuts.

Torque: 8.5 N.m (85 kgf.cm, 74 in.lbf)

2. INSTALL MAF METER WITH AIR CLEANER CAP.
