Coolant Temperature Sensor/Switch (For Computer): Service and Repair

1. DRAIN ENGINE COOLANT.





2. REMOVE ECT SENSOR.

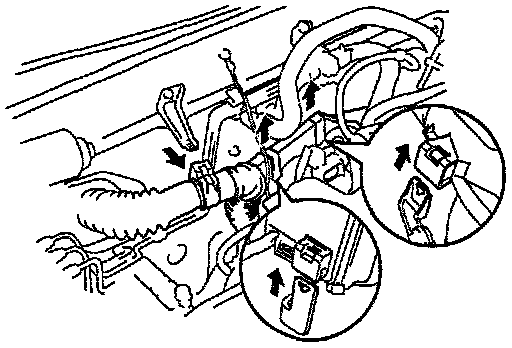

- Disconnect the engine wire protector from the 3 brackets.
- Disconnect the ECT sensor connector.

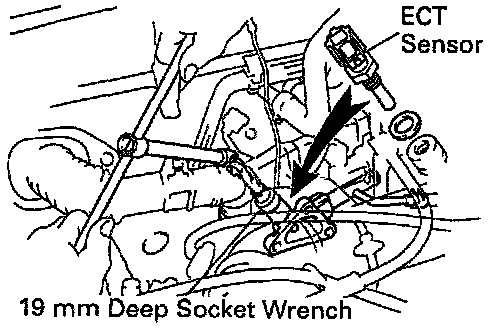

- Using a 19 mm deep socket wrench, remove the ECT sensor and gasket.

HINT: Installation is in the reverse order of removal.
