Splice Locations
Splice Locations

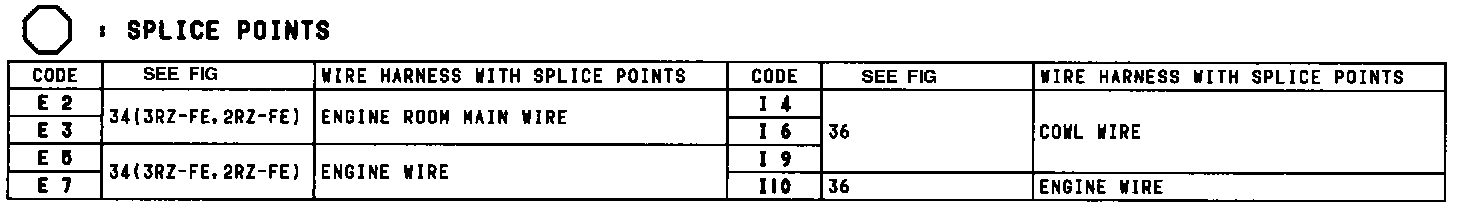

Splice Points:
SPLICE POINTS

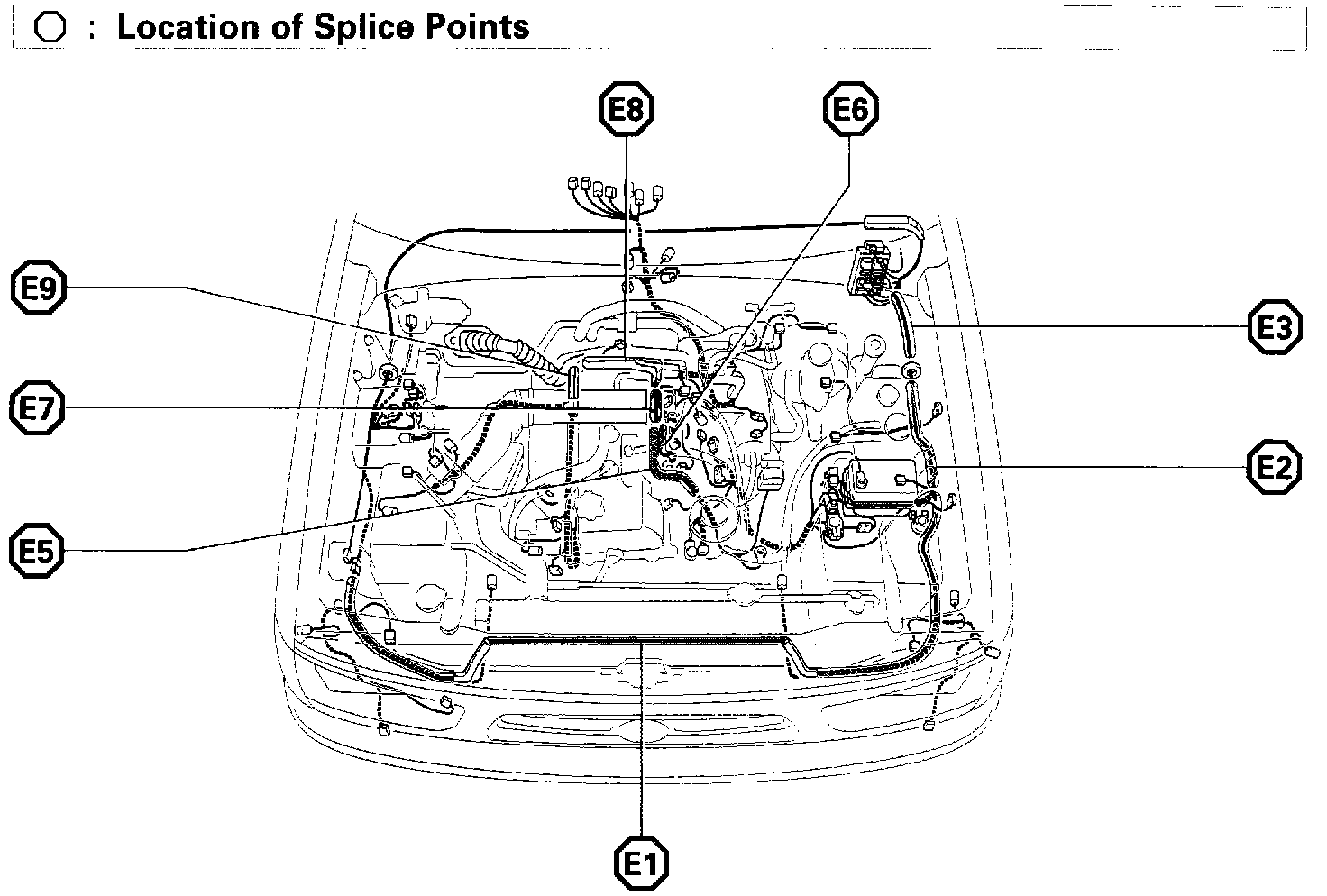

Location Of Splice Points (Fig 34):
FIG 34

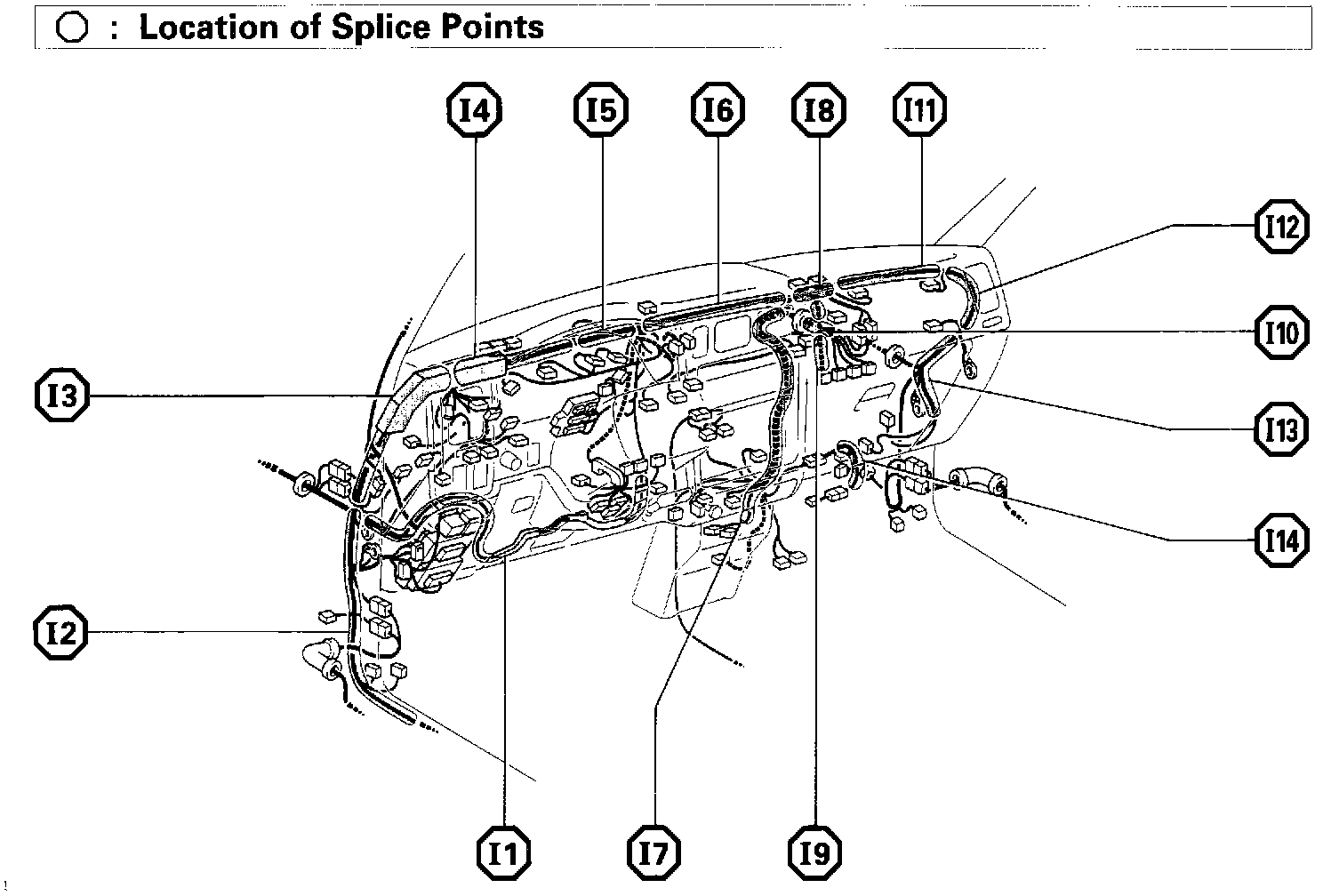

Location Of Splice Points (Fig 36):
FIG 36
