Manual Transmission

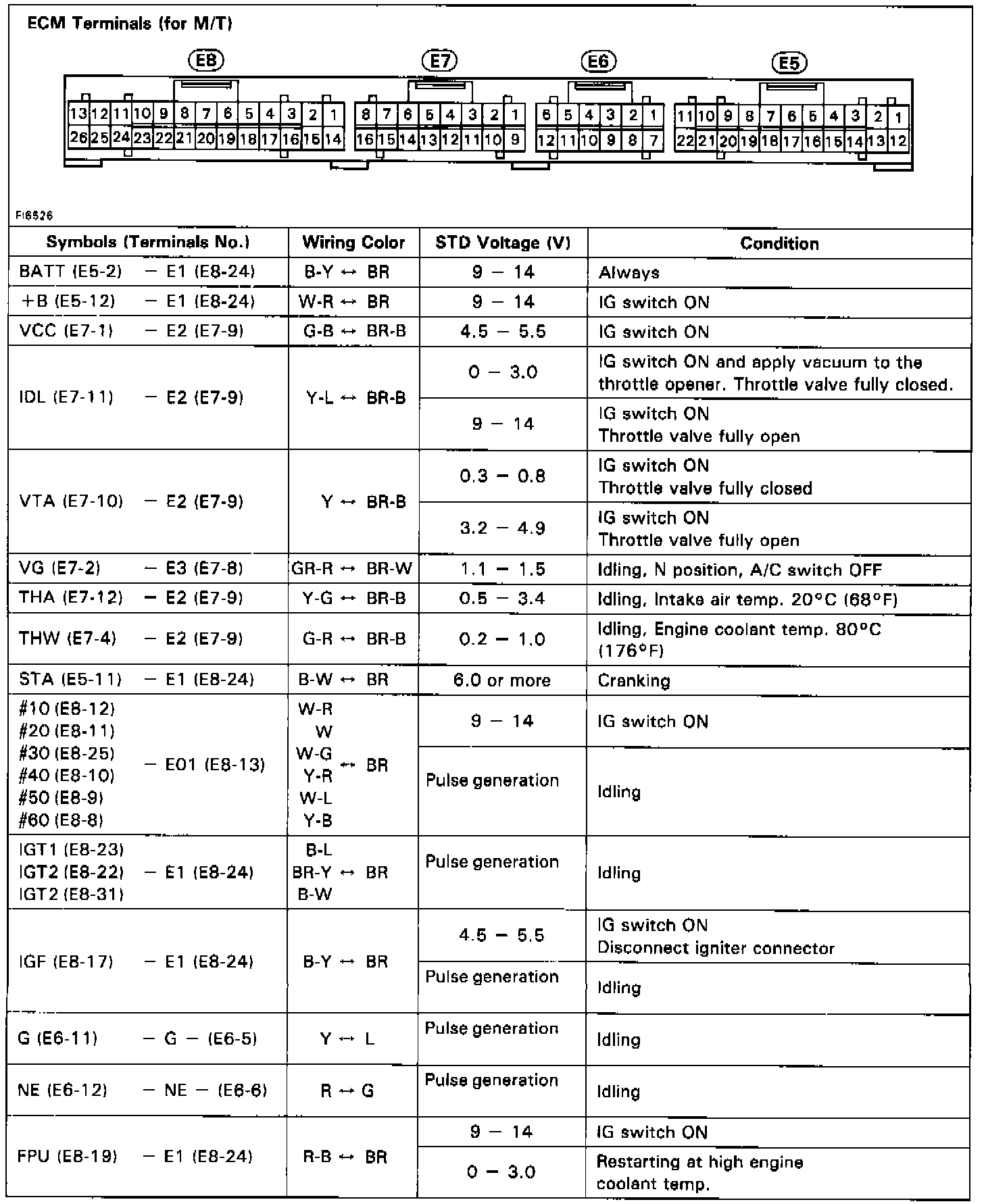

STANDARD VALUE OF ECM TERMINALS
- When measuring the voltage or resistance of the connector part of the ECM, always insert the test probe into the connector from the wire harness side.

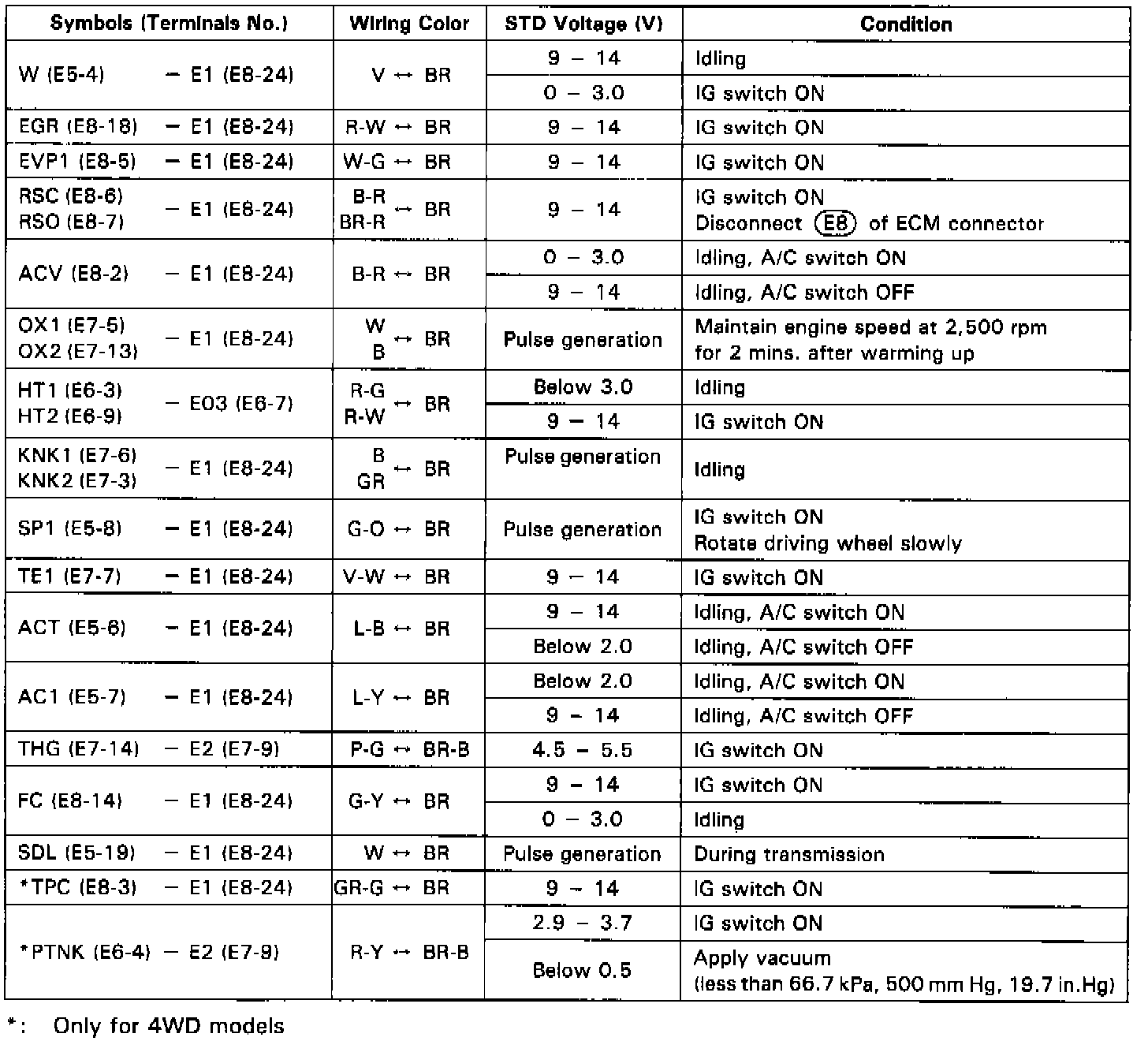

STANDARD VALUE OF ECM TERMINALS
- When measuring the voltage or resistance of the connector part of the ECM, always insert the test probe into the connector from the wire harness side.
