Camshaft Position Sensor: Service and Repair

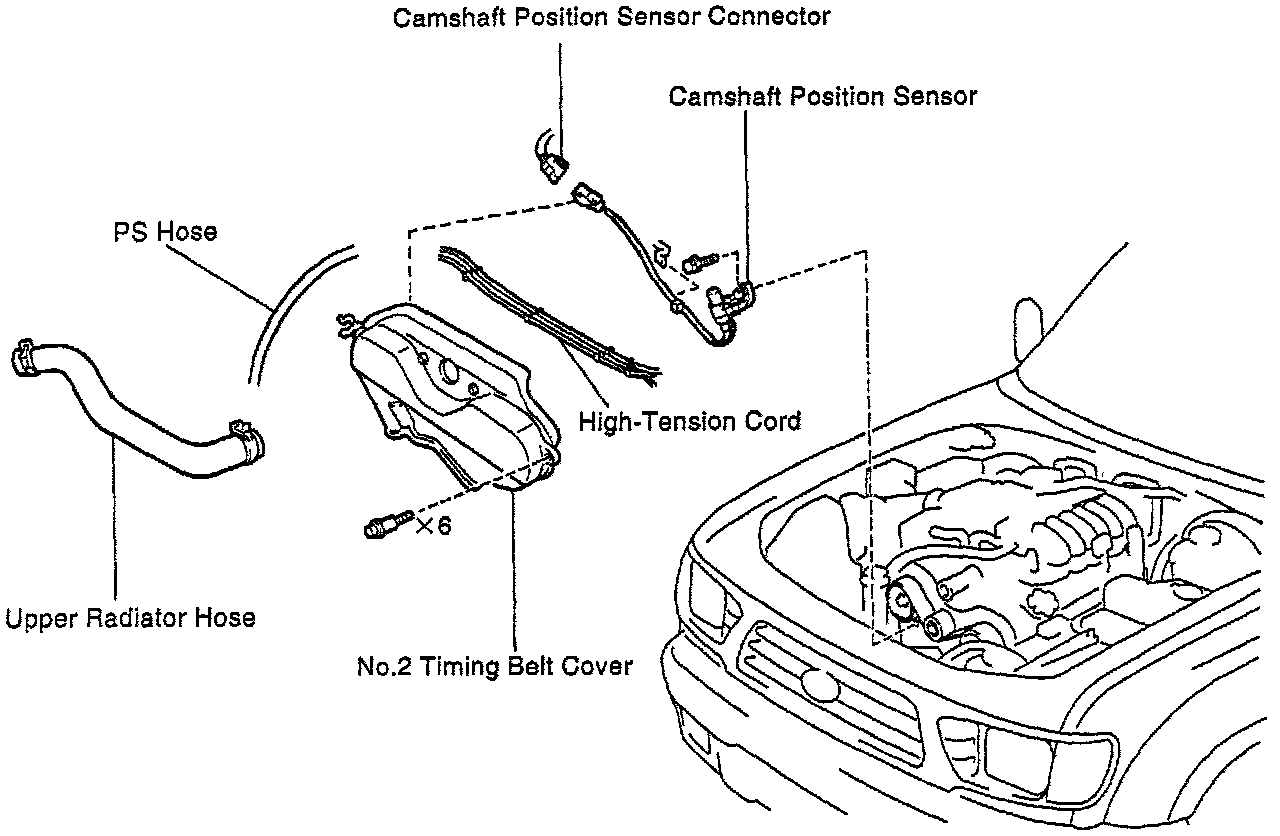

COMPONENTS FOR REMOVAL AND INSTALLATION
REMOVAL
1. REMOVE UPPER RADIATOR HOSE.
2. REMOVE NO.2 TIMING BELT COVER.
- Remove the high-tension cord clamps from the No.2 timing belt cover.
- Remove the PS pump hose from the No.2 timing belt cover clamp.
- Remove the 6 bolts and No.2 timing belt cover.
3. REMOVE CAMSHAFT POSITION SENSOR.
- Disconnect the camshaft position sensor connector.
- Remove the bolts and camshaft position sensor.
Torque: 7.8 Nm (69 in lb)
INSTALLATION HINT: Installation is in the reverse order of removal.
