Splice Locations
Splice Points:

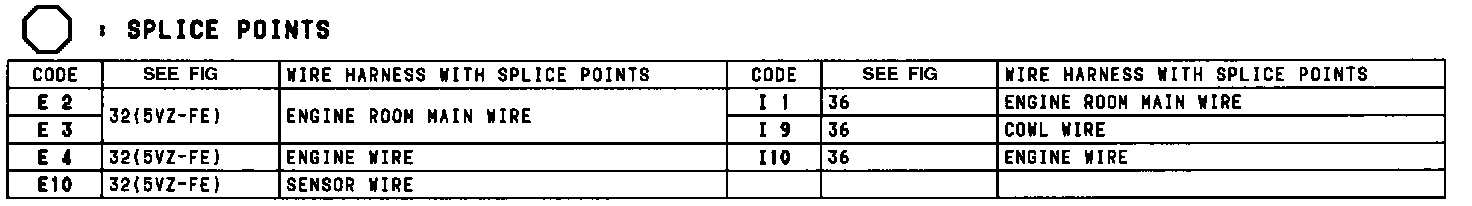

SPLICE POINTS

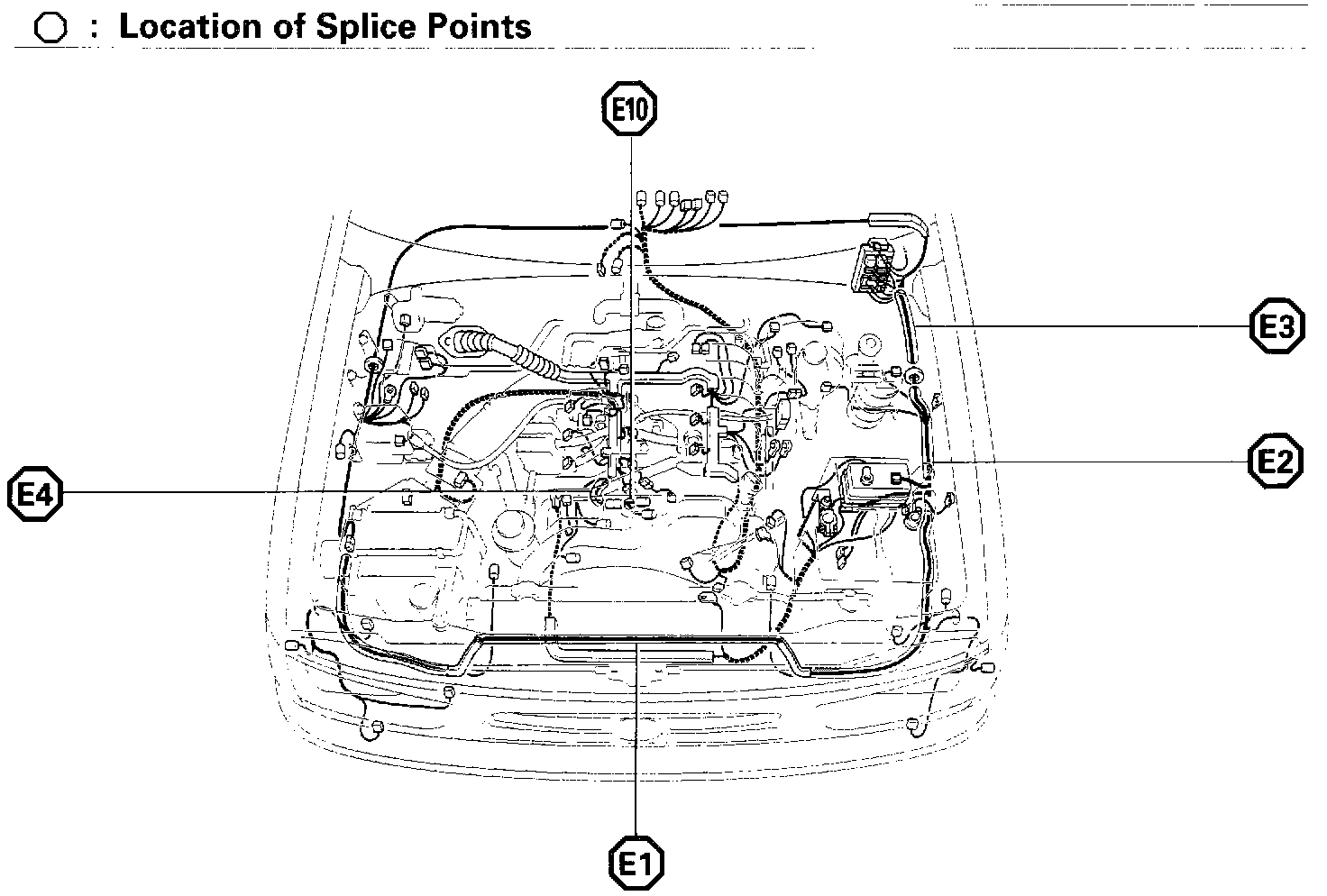

Location Of Splice Points (Fig 32):
FIG 32
Location Of Splice Points (Fig 36):
FIG 36
