DTC 13

DTC 13 ABS Control (Motor) Relay Circuit

CIRCUIT DESCRIPTION
The ABS control (motor) relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches the ABS control (motor) relay ON and operates the ABS pump motor.





DETECTING CONDITION
Fail safe function: If trouble occurs in the ABS control (motor) relay circuit, the ECU cuts off current to the ABS control (solenoid) relay and prohibits ABS control.





WIRING DIAGRAM

Step 1:

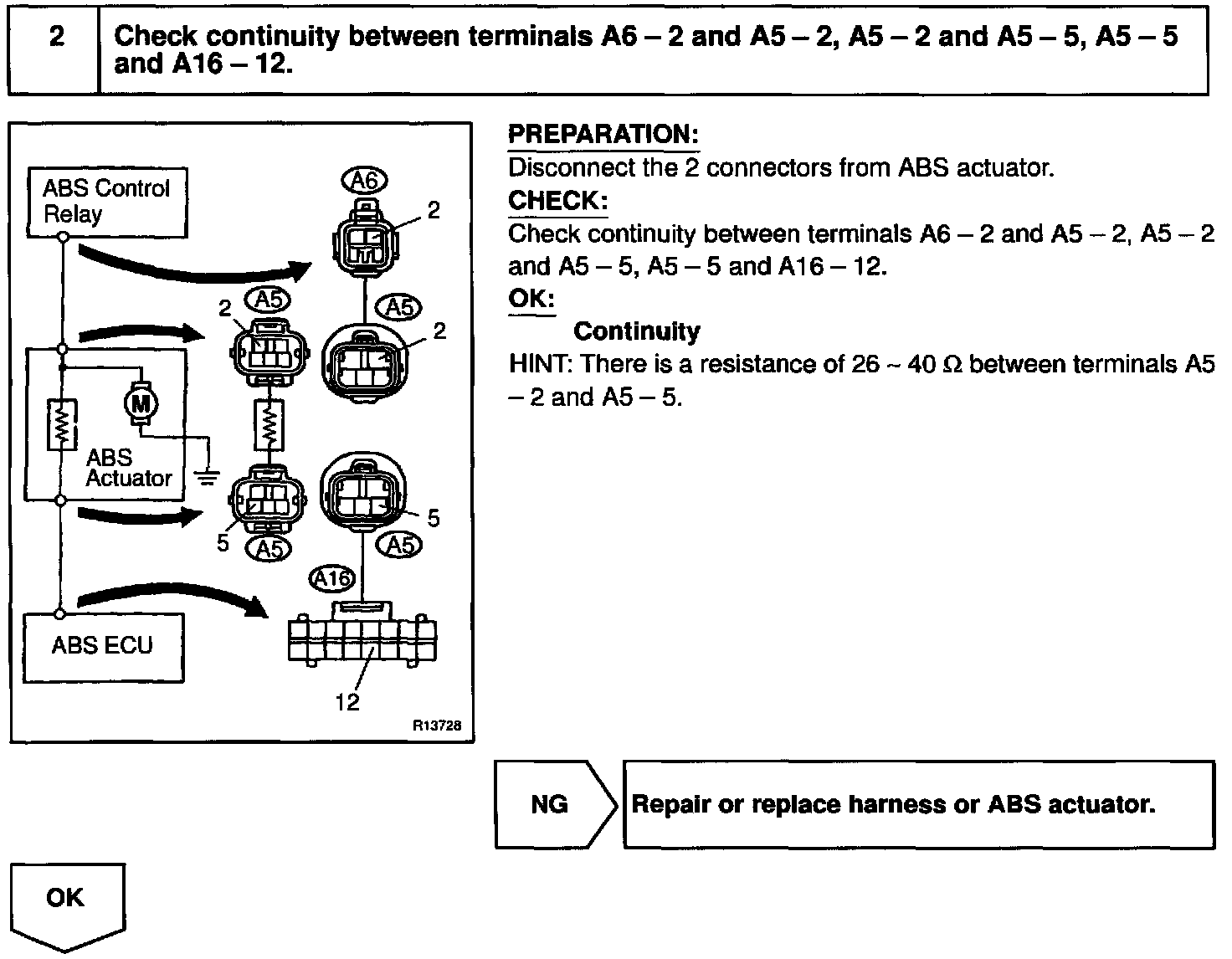

Step 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
