DTC 44

DTC 44 Deceleration Sensor Circuit

CIRCUIT DESCRIPTION
This sensor detects deceleration on the vehicle. The sensor signal is used in ABS control. If the sensor functions abnormally, the ABS warning light comes on but the ABS still operates.





DETECTING CONDITION

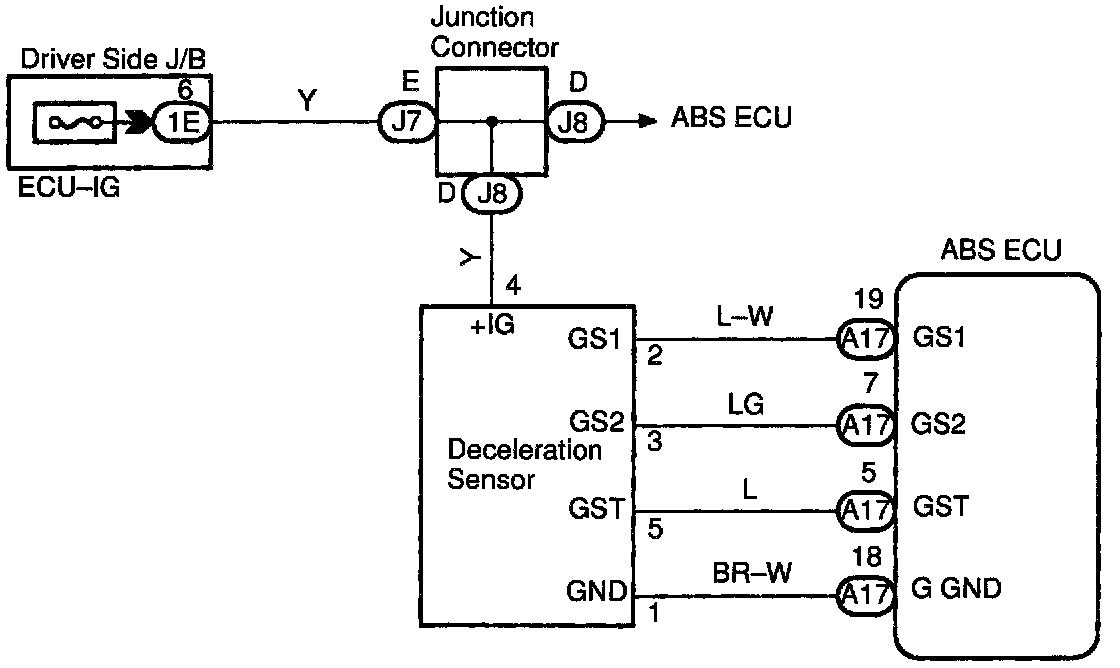

WIRING DIAGRAM

Step 1:

Step 2:

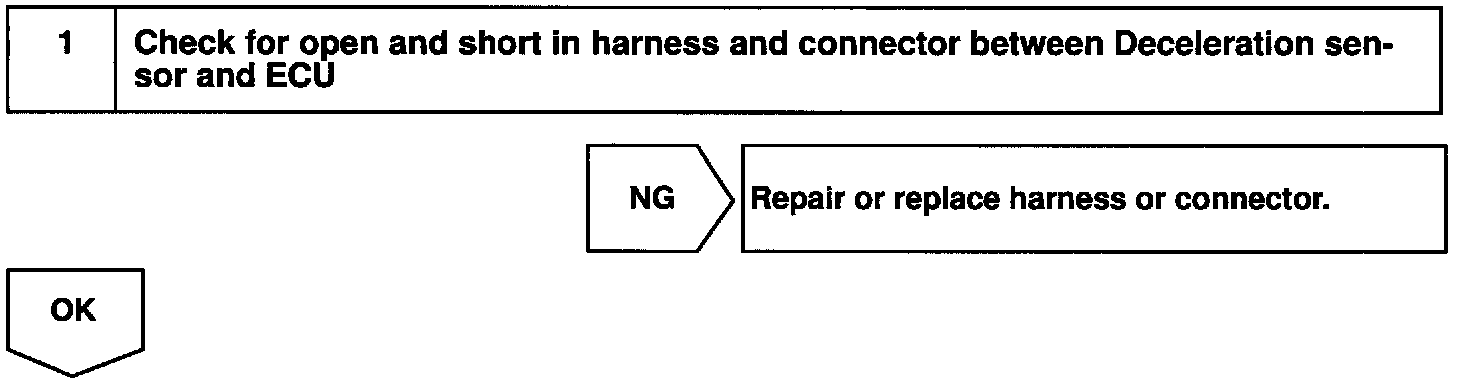

INSPECTION PROCEDURE
