Fuel Gauge Sender: Testing and Inspection

Combination Meter / Meter Circuits:

Fuel Sender Gauge Resistance:

INSPECT FUEL SENDER GAUGE RESISTANCE

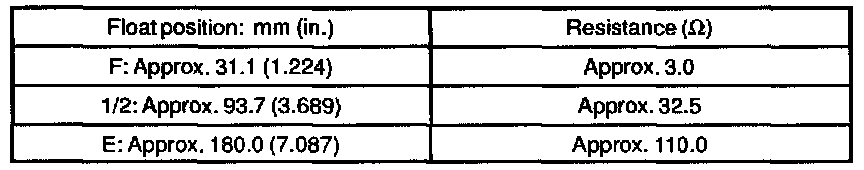

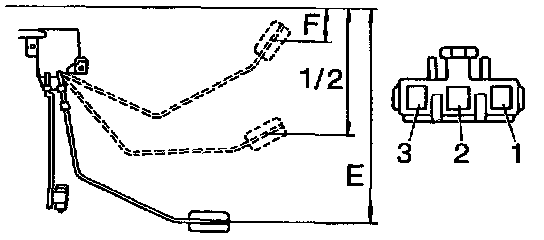

Measure the resistance between terminals 2 and 3 for each float position.

If resistance value is not as specified, replace the sender gauge.
