Cruise Control
>>
Cruise Control Switch
>>
Testing and Inspection
>>
Inspection Flow Charts
Inspection Flow Charts

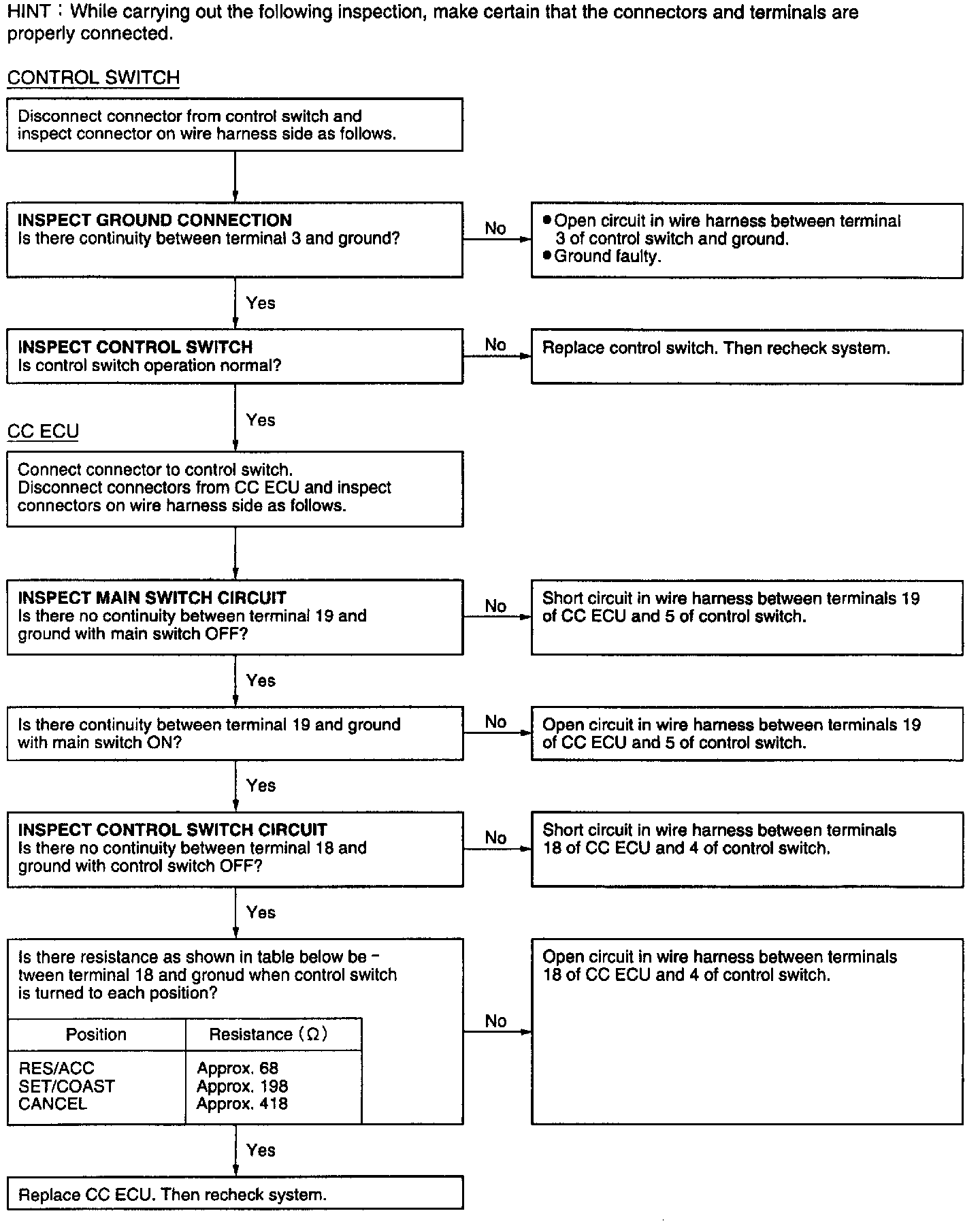

D - Control Switch Circuit:
