System Inspections

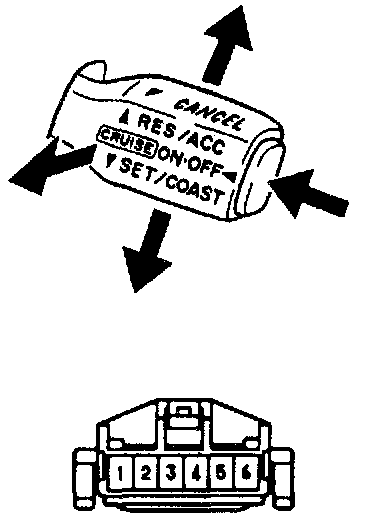

CRUISE CONTROL SWITCH INSPECTION


INSPECT SWITCH CONTINUITY

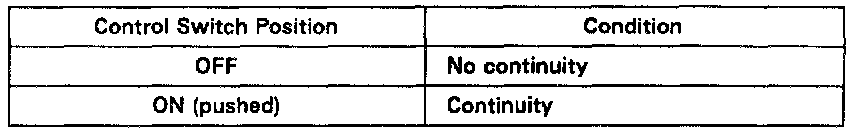

1. Check continuity between terminals 3 and 5.

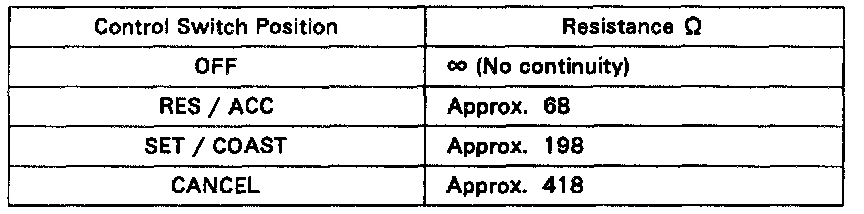

2. Measure resistance between terminals 3 and 4.

If resistance value is not as specified, replace the control switch.

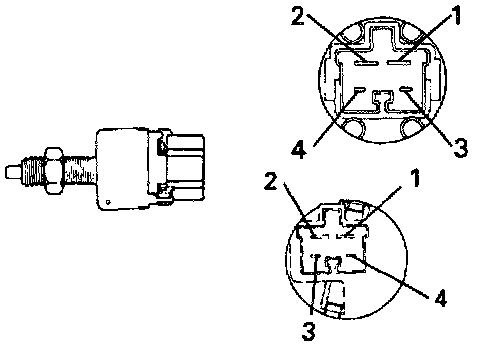

STOP LIGHT SWITCH INSPECTION

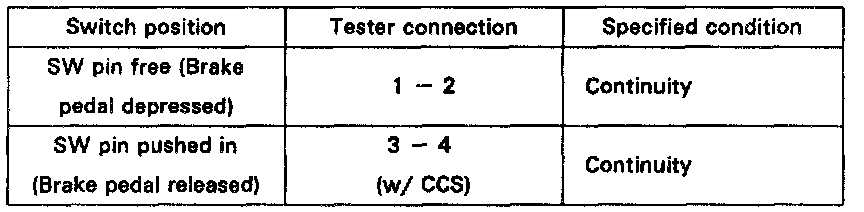

INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.


PARK/NEUTRAL POSITION SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
P1780


NO.1 VEHICLE SPEED SENSOR INSPECTION
INSPECT SENSOR OPERATION
Testing and Inspection
