Vehicle Speed Sensor/Transducer - Cruise Control: Testing and Inspection

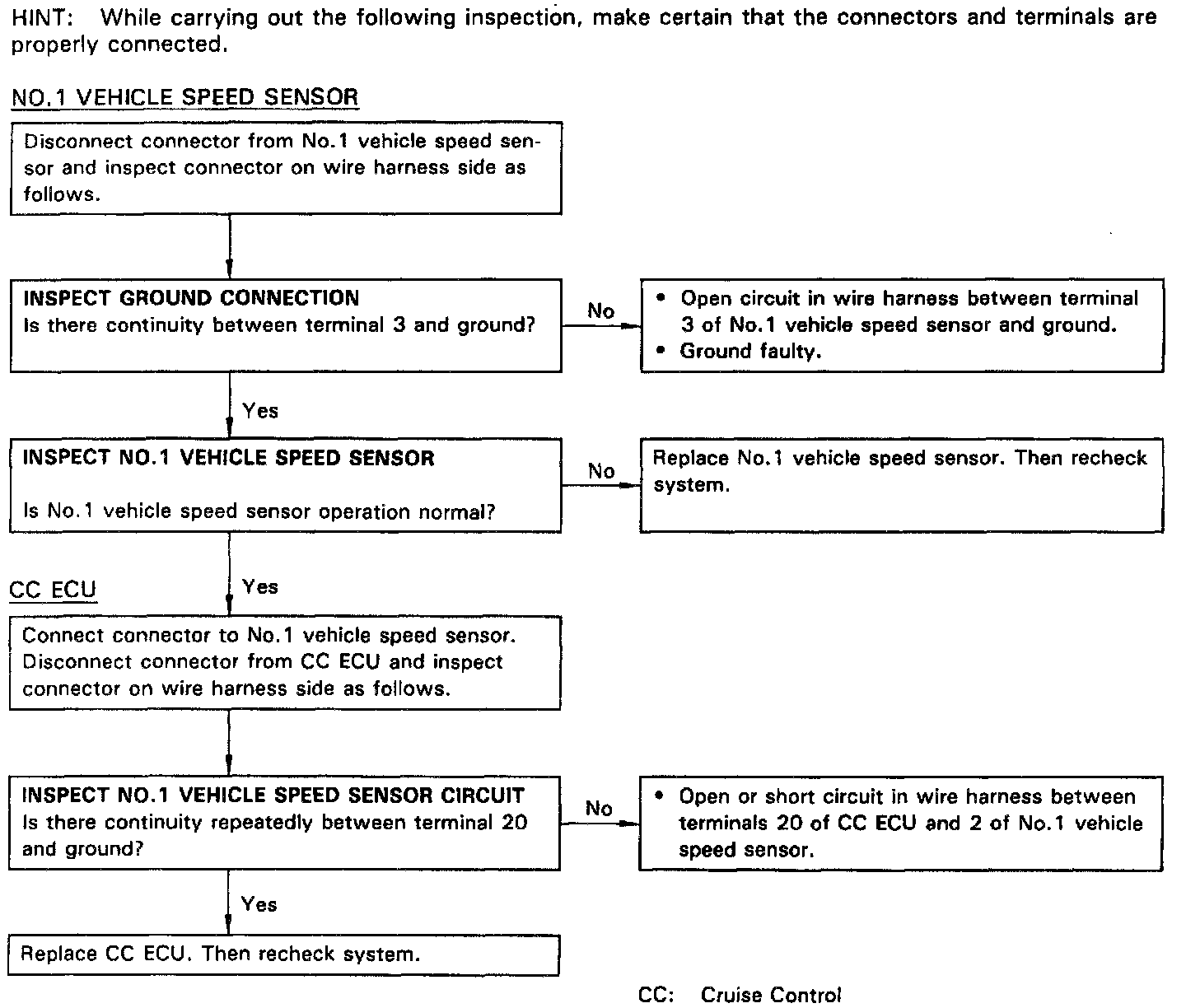

E - No. 1 Vehicle Speed Sensor Circuit:
