Body

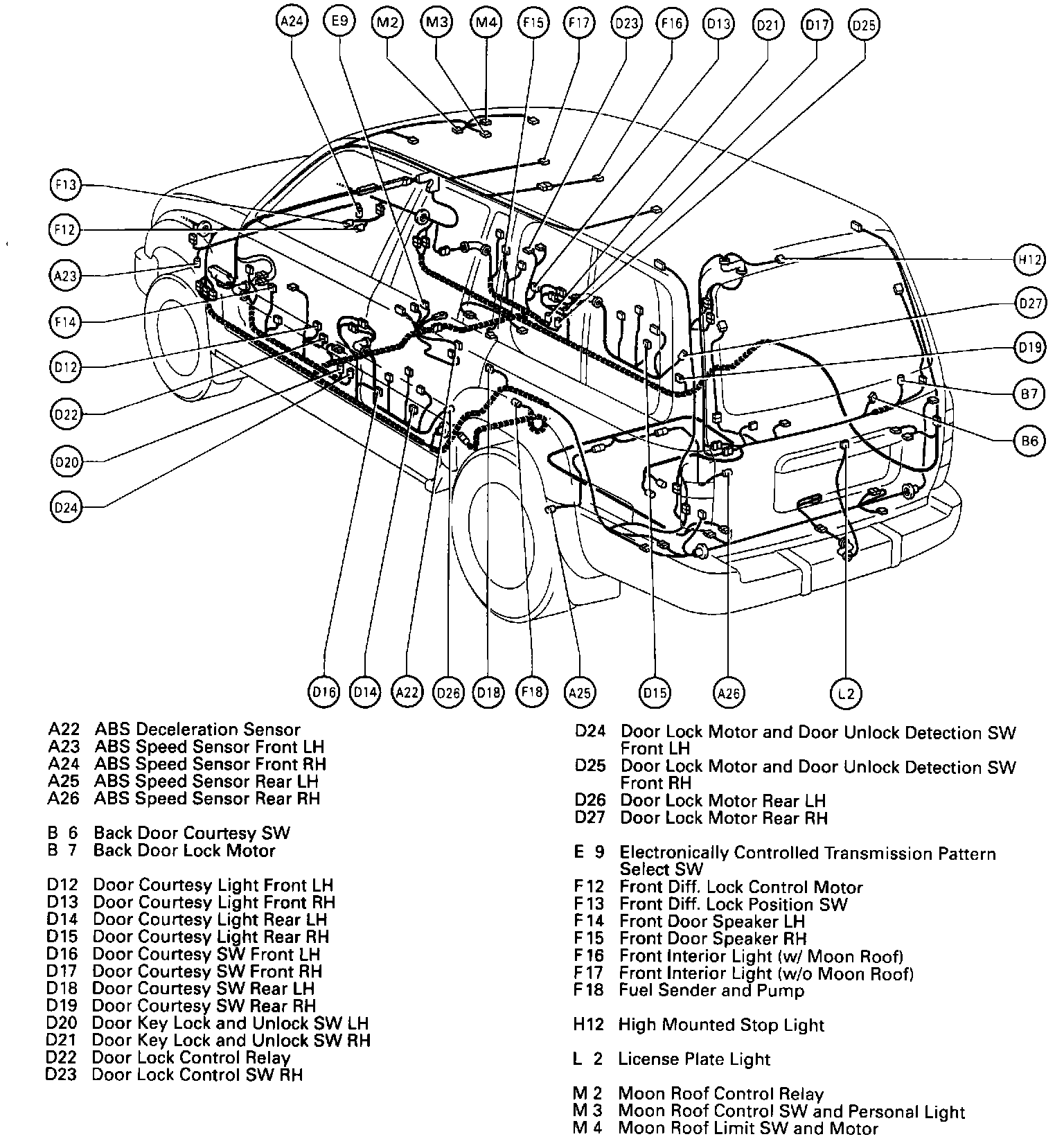

Position Of Parts In Body (Part 1 Of 2) (Fig 26):

Position Of Parts In Body (Part 2 Of 2) (Fig 27):

A22 ABS Deceleration Sensor
A23 ABS Speed Sensor Front LH
A24 ABS Speed Sensor Front RH
A25 ABS Speed Sensor Rear LH
A26 ABS Speed Sensor Rear RH

B 6 Back Door Courtesy SW
B 7 Back Door Lock Motor

D12 Door Courtesy Light Front LH
D13 Door Courtesy Light Front RH
D14 Door Courtesy Light Rear LH
D15 Door Courtesy Light Rear RH
D16 Door Courtesy SW Front LH
D17 Door Courtesy SW Front RH
D18 Door Courtesy SW Rear LH
D19 Door Courtesy SW Rear RH
D2O Door Key Lock and Unlock SW LH
D21 Door Key Lock and Unlock SW RH
D22 Door Lock Control Relay
D23 Door Lock Control SW RH
D24 Door Lock Motor and Door Unlock Detection SW Front LH
D25 Door Lock Motor and Door Unlock Detection SW Front RH
D26 Door Lock Motor Rear LH
D27 Door Lock Motor Rear RH

E 9 Electronically Controlled Transmission Pattern Select SW

F12 Front Diff. Lock Control Motor
F13 Front Diff. Lock Position SW
F14 Front Door Speaker LH
F15 Front Door Speaker RH
F16 Front Interior Light (w/ Moon Roof)
F17 Front Interior Light (w/o Moon Roof)
F18 Fuel Sender and Pump

H12 High Mounted Stop Light

L 2 License Plate Light

M 2 Moon Roof Control Relay
M 3 Moon Roof Control SW and Personal Light
M 4 Moon Roof Limit SW and Motor

O 4 Old Main SW

P 4 Parking Brake SW
P 6 Power Window Master SW
P 7 Power Window Motor Front LH
P 8 Power Window Motor Front RH
P 9 Power Window Motor Rear LH
P10 Power Window Motor Rear RH
P11 Power Window SW Front RH
P12 Power Window SW Rear LH
P13 Power Window SW Rear RH

R 8 Rear Combination Light LH
R 9 Rear Combination Light RH
R10 Rear Diff. Lock Control Motor
R11 Rear Diff. Lock Position SW
R12 Rear Door Speaker LH
R13 Rear Door Speaker RH
R14 Rear Heater
R15 Rear Heater Relay
R16 Rear Interior Light
R17 Rear Window Defogger (+)
R18 Rear Window Defogger (-)
R19 Rear Wiper Motor
R20 Rear Wiper Relay
R21 Remote Control Mirror LH
R22 Remote Control Mirror RH
R23 Roof Speaker LH
R24 Roof Speaker RH

S14 Shift Lock ECU

T 4 Trailer Socket (Tail and Stop Light)
T 5 Trailer Socket (Turn Signal Light)
T 6 Trailer Socket (Turn Signal Light)

V 6 Vanity Light LH
V 7 Vanity Light RH

W 5 Woofer (Speaker)
W 6 Woofer Amplifier
