Control Assembly: Adjustments

ADJUST WATER VALVE CONTROL CABLE
1. Set the vehicle in these conditions.
- Ignition switch on.
- Blower speed control switch on.
- Temperature control switch to "COOL" position.

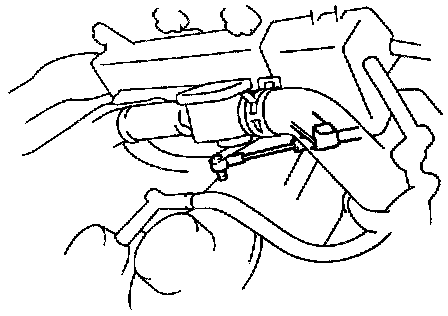

2. Set the water valve to "COOL" position, install the control cable and lock the clamp.
