Control Assembly: Service and Repair

A/C CONTROL ASSEMBLY REMOVAL







1. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL WITH A/C CONTROL ASSEMBLY

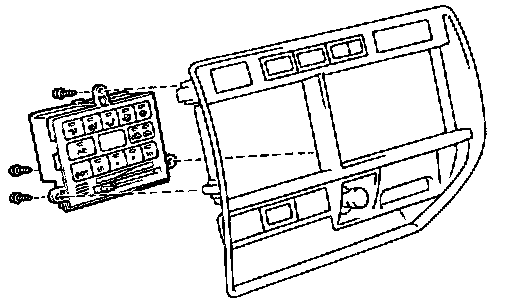

2. REMOVE A/C CONTROL ASSEMBLY
Remove the 3 screws and A/C control assembly from center panel.

A/C CONTROL ASSEMBLY INSTALLATION
Installation is in the reverse order of removal.

After installation, adjust water valve control cable
Adjustments
