Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL AND INSTALLATION

1. Drain engine coolant.
2. Remove ECT sensor.




(a) Disconnect the ECT sensor connector.

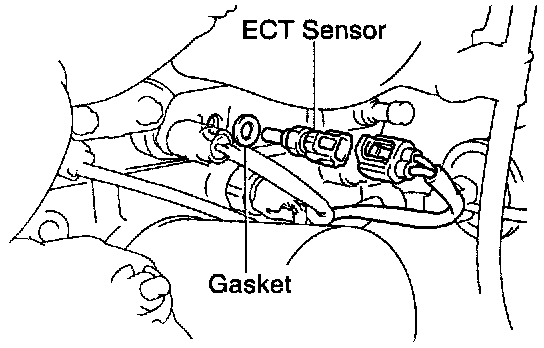

(b) Using a 1 9 mm deep socket wrench, remove the ECT sensor and gasket.
3. Reinstall ECT sensor.
(a) Using a 19 mm deep socket wrench, install the ECT sensor and gasket.

Torque: 24.5 N.m (250 kgf.cm, 17.5 ft.lbf)

(b) Connect the ECT sensor connector.
4. Refill engine coolant.
