Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor (NE2 Signal):

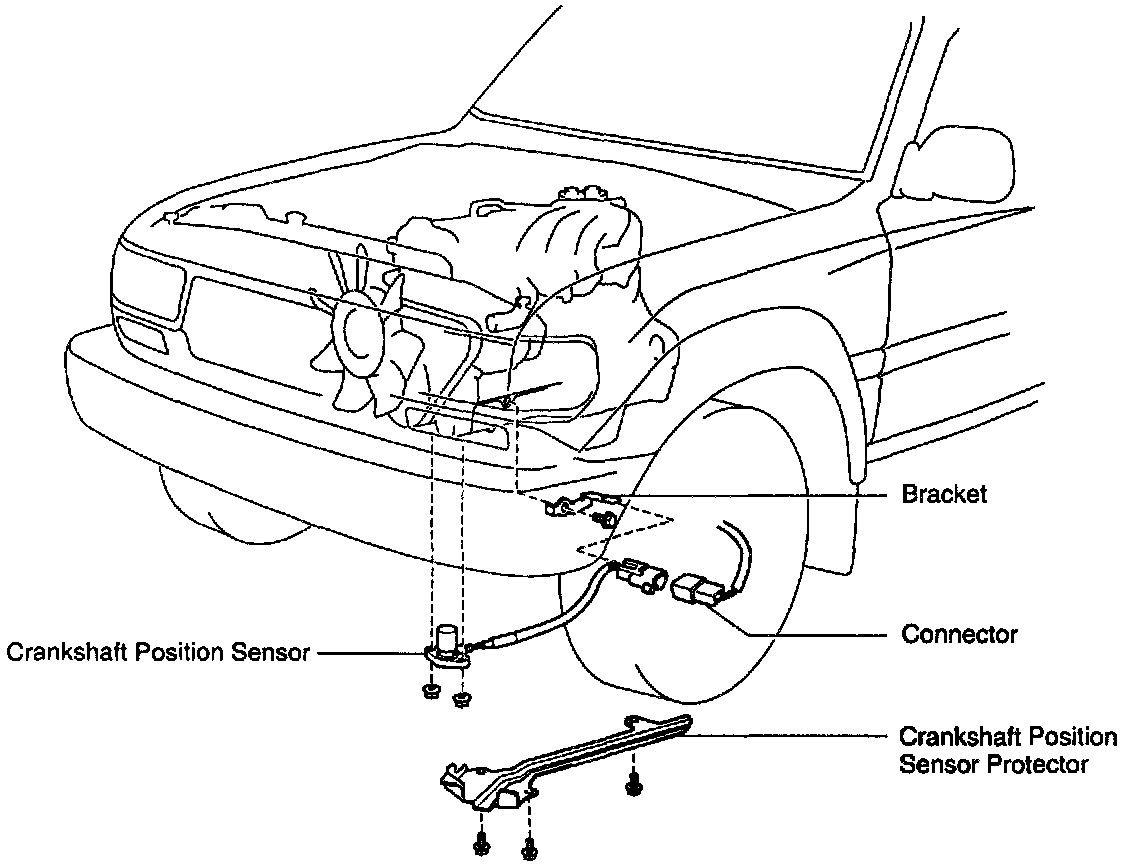

COMPONENTS FOR REMOVAL AND INSTALLATION

CRANKSHAFT POSITION SENSOR (NE2 SIGNAL) REMOVAL

1. Remove engine under cover.
2. Remove crankshaft position sensor protector.
Remove the 3 bolts and crankshaft position sensor protector.

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)




3. Disconnect crankshaft position sensor bracket and connector.
4. Remove crankshaft position sensor.

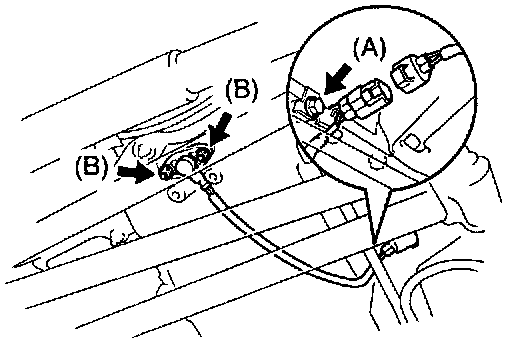

(a) Remove the bolt, 2 nuts and crankshaft position sensor.

Torque:
Bolt A: 20 N.m (200 kgf.cm, 14 ft.lbf)
Nut B: 9 N.m (90 kgf.cm, 78 in..lbf)

CRANKSHAFT POSITION SENSOR (NE2 SIGNAL) INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.

NOTE: For (NE Signal) Sensor see: Distributor Removal.
