Installation

HIGH-TENSION CORDS INSTALLATION

1. Reconnect high-tension cords to distributor cap and ignition coil.




(a) Assemble the holder and grommet.

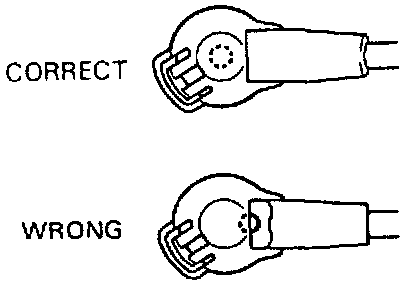

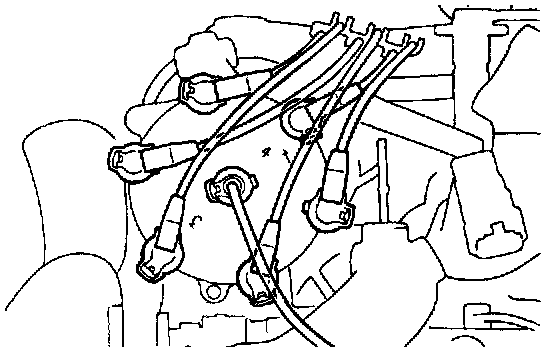

HINT: Connect the high-tension cords to the distributor cap as shown in the illustration.

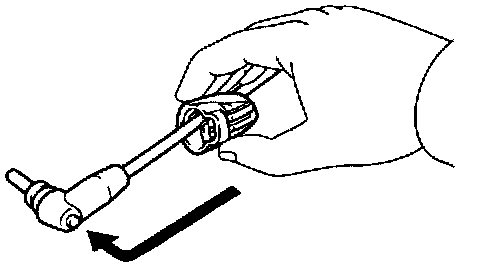

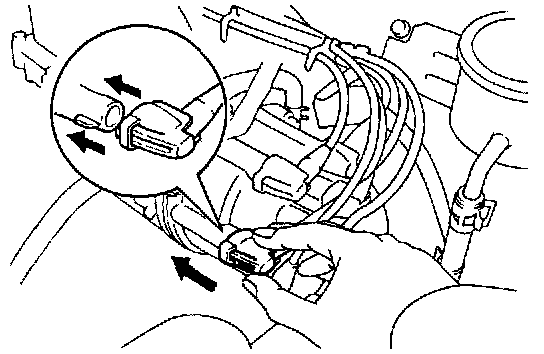

(b) Align the spline of the distributor (ignition coil) with the spline of the holder. and push in the cord.




NOTICE: Check that the holder is correctly installed to the grommet and distributor cap as shown in the illustration.




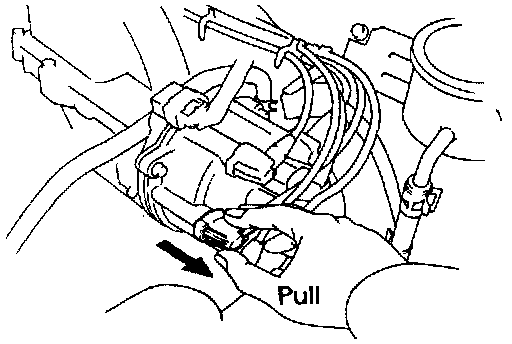

(c) Check that the lock claw of the holder is engaged by lightly pulling the holder.
2. Reconnect high-tension cords to spark plugs.




(a) Secure the high-tension cords with the cord clamps as shown in the illustration.




(b) Install the No.1 and No.2 cord clamps with the 2 bolts.




3. Install No.2 and No.3 cylinder head covers.
Install the head covers with the 4 bolts.
4. Connect throttle cable.
5. Install air cleaner hose.
Install the air cleaner hose with the 2 clamp bolts.
6. Install No.2 PCV hose.
