Removal

HIGH-TENSION CORDS REMOVAL

1. Remove No.2 PCV hose.
2. Remove air cleaner hose.
3. Disconnect throttle cable.




4. Remove No.2 and No.3 cylinder head covers.
Remove the 4 bolts and head covers,
5. Disconnect high-tension cords from spark plugs.




(a) Remove the 2 mounting bolts of the No.1 and No.2 cord clamps.

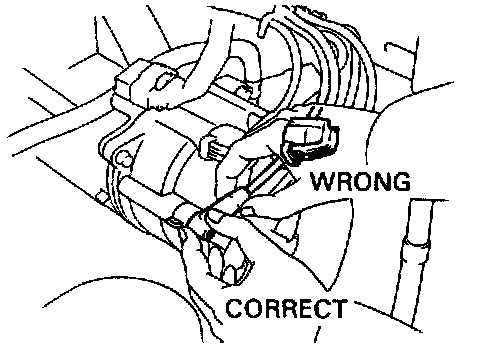

(b) Disconnect the high - tension cords at the rubber boot.
Do not pull on the cords.

NOTICE: Pulling on or bending the cords may damage the conductor inside.

6. Disconnect high-tension cords from distributor cap and ignition coil.




(a) Using a screwdriver. lift up the lock claw and disconnect the holder from the distributor cap (ignition coil).




(b) Disconnect the high-tension cord at the grommet. DO NOT pull on the cord.

NOTICE:
- Pulling on or bending the cords may damage the conductor inside.
- Do not wipe any of the oil from the grommet after the high-tension cord is disconnected.
